购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

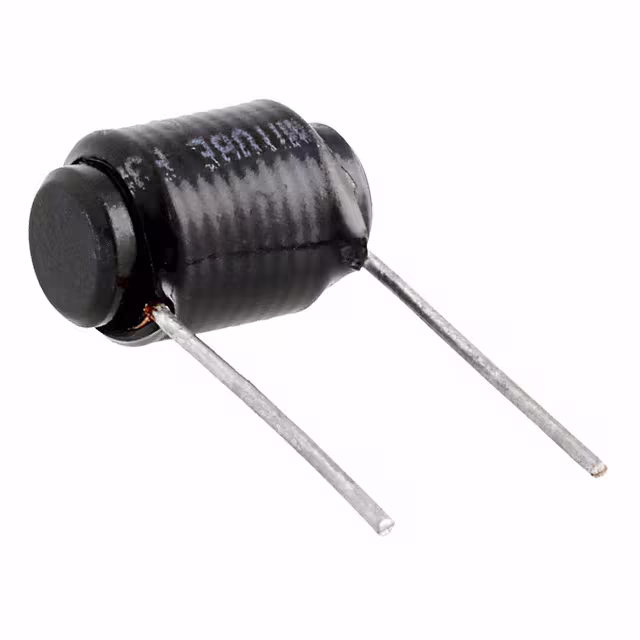

5501-RCFIXED IND 5UH 10A 13 MOHM TH Bourns Inc. |
2,867 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|

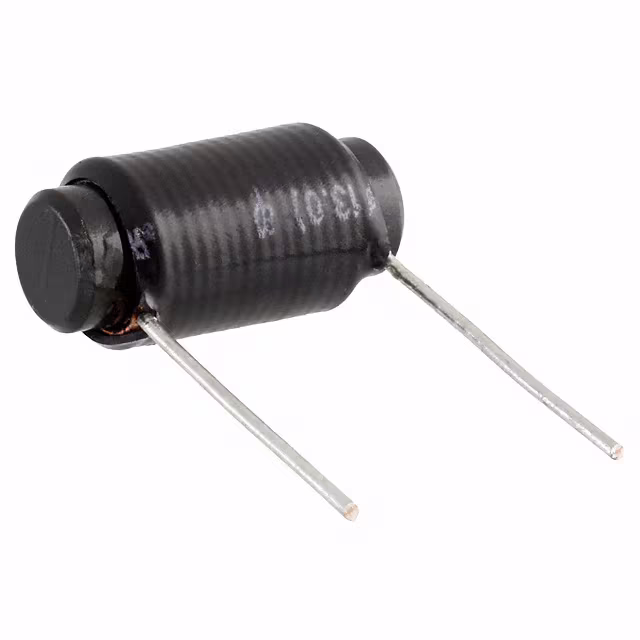

5502-RCFIXED IND 10UH 9A 17 MOHM TH Bourns Inc. |
4,135 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | - |
|
5520-RCFIXED IND 100UH 10A 27 MOHM TH Bourns Inc. |
3,074 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 10 A | - | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.620" L (23.88mm x 41.15mm) | - |
|
5607-RCFIXED IND 500UH 2A 378 MOHM TH Bourns Inc. |
1,967 |
|
规格书 |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 2 A | - | Unshielded | 378mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|

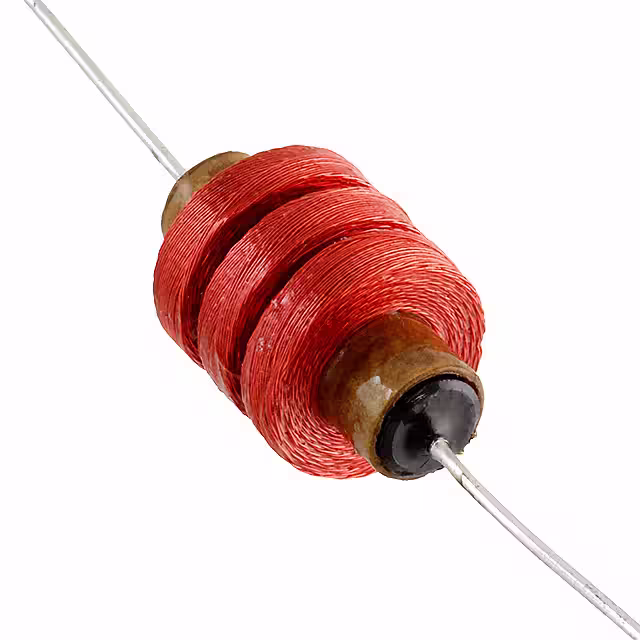

6310-RCFIXED IND 50MH 65MA 127 OHM TH Bourns Inc. |
3,613 |
|
规格书 |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 mH | ±5% | 65 mA | - | Unshielded | 127Ohm Max | 100 @ 79.6kHz | 330kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.630" Dia x 0.875" L (16.00mm x 22.22mm) | - |
|
PT12133SLFIXED IND 8.2MH 50MA 26 OHM TH Bourns Inc. |
3,164 |
|
规格书 |
PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 8.2 mH | ±10% | 50 mA | - | Unshielded | 26Ohm Max | 90 @ 252kHz | 500kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
CM201212-1R0KLFIXED IND 1UH 120MA 3.82 OHM SMD Bourns Inc. |
3,980 |
|
规格书 |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | 1 µH | ±10% | 120 mA | - | Unshielded | 3.82Ohm Max | 8 @ 7.96MHz | 80MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
CS321613-330KFIXED IND 33UH 25MA 1.5 OHM SMD Bourns Inc. |
1,410 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 33 µH | ±10% | 25 mA | - | Shielded | 1.5Ohm Max | 45 @ 400kHz | 13MHz | - | -55°C ~ 125°C | 400 kHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
PM1008S-5R6M-RCFIXED IND 5.6UH 1A 400 MOHM SMD Bourns Inc. |
3,277 |
|
规格书 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1 A | - | Shielded | 400mOhm Max | 38 @ 1MHz | 150MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
PM1008S-100M-RCFIXED IND 10UH 780MA 1 OHM SMD Bourns Inc. |
3,036 |
|
规格书 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 780 mA | - | Shielded | 1Ohm Max | 38 @ 1MHz | 105MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
