购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F392AF-RCFIXED IND 39MH 41MA 147 OHM TH Bourns Inc. |
4,891 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 mH | ±5% | 41 mA | - | Unshielded | 147Ohm Max | 59 @ 79kHz | 220kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.370" Dia x 0.630" L (9.40mm x 16.00mm) | - |
|

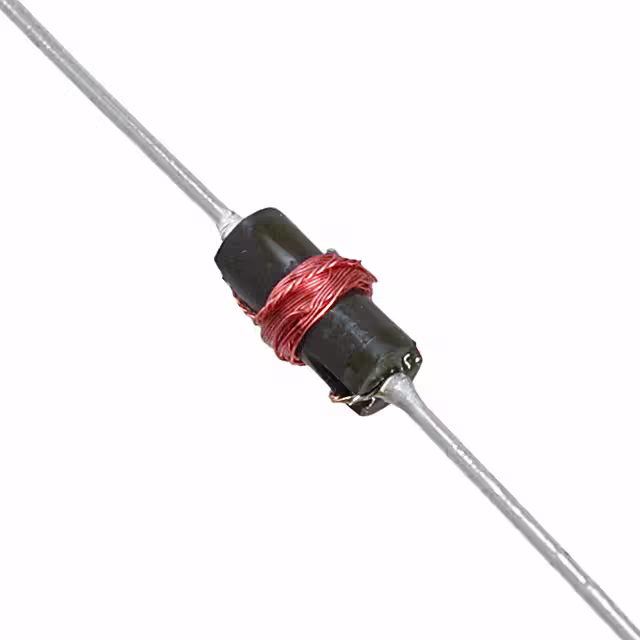

70F155AI-RCFIXED IND 15UH 250MA 1.92 OHM TH Bourns Inc. |
4,199 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±10% | 250 mA | - | Unshielded | 1.92Ohm Max | 52 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

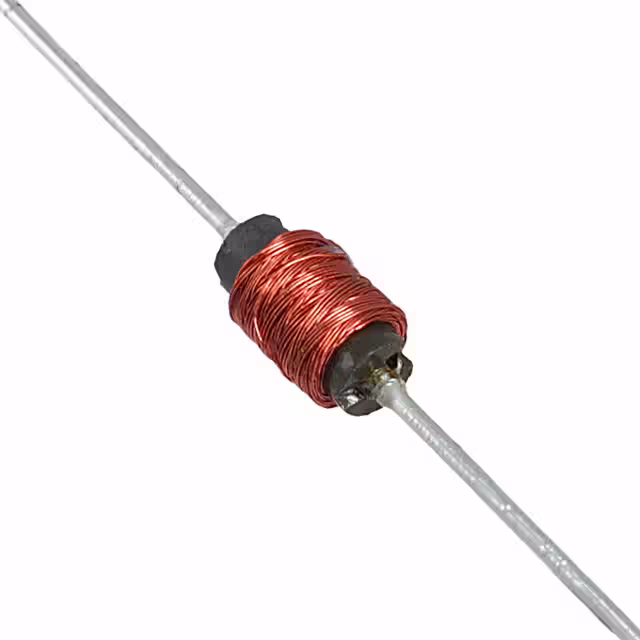

70F224AI-RCFIXED IND 220UH 114MA 11.5OHM TH Bourns Inc. |
1,326 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 220 µH | ±5% | 114 mA | - | Unshielded | 11.5Ohm Max | 46 @ 790kHz | 2.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|

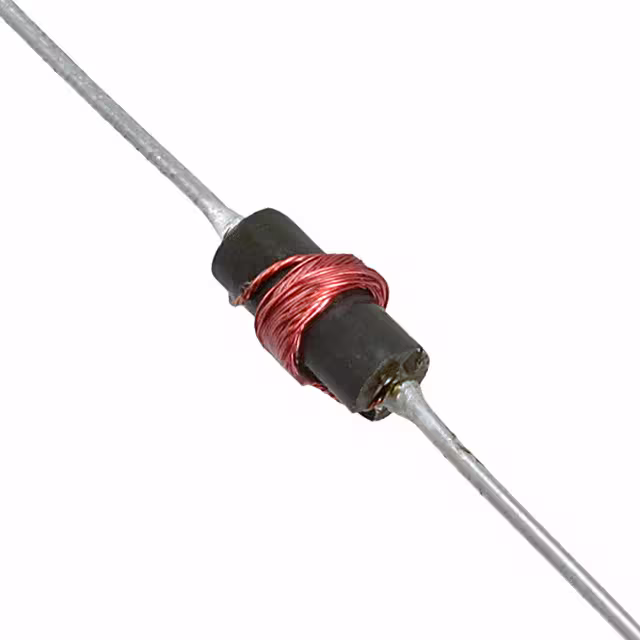

70F275AI-RCFIXED IND 27UH 213MA 2.64 OHM TH Bourns Inc. |
1,033 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 27 µH | ±5% | 213 mA | - | Unshielded | 2.64Ohm Max | 49 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|

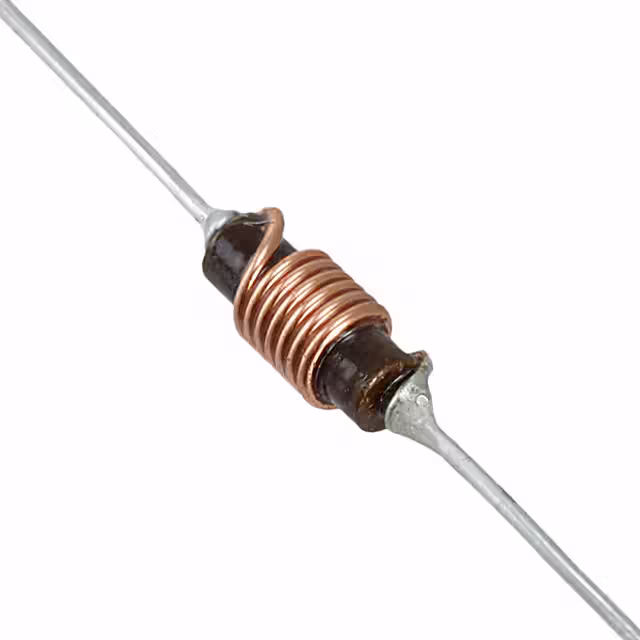

70F107AP-RCFIXED IND 100NH 3.922A 130MOHM Bourns Inc. |
4,188 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 100 nH | ±20% | 3.922 A | - | Unshielded | 130mOhm Max | 49 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.150" Dia x 0.310" L (3.81mm x 7.87mm) | - |
|
70F566AI-RCFIXED IND 5.6UH 637MA 492MOHM TH Bourns Inc. |
4,840 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 µH | ±10% | 637 mA | - | Unshielded | 492mOhm Max | 41 @ 7.9MHz | 49MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

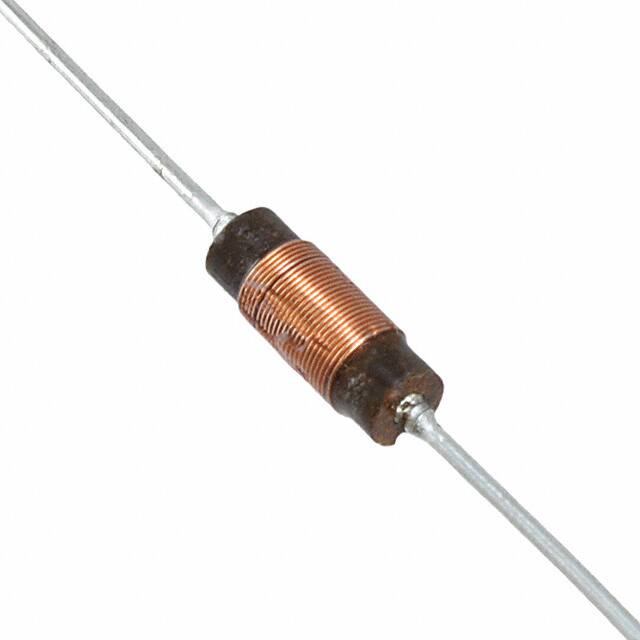

70F757AP-RCFIXED IND 750NH 870MA 264MOHM TH Bourns Inc. |
2,635 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 750 nH | ±20% | 870 mA | - | Unshielded | 264mOhm Max | 48 @ 25MHz | 224MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|

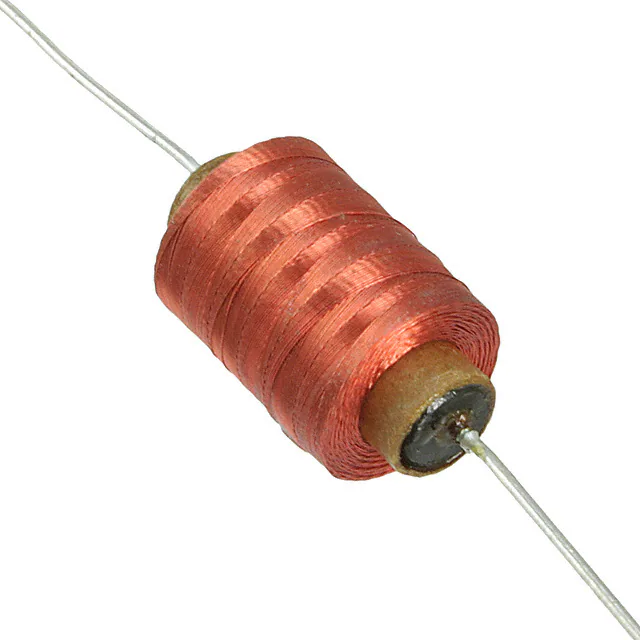

70F251AF-RCFIXED IND 250MH 37MA 468 OHM TH Bourns Inc. |
1,658 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 250 mH | ±5% | 37 mA | - | Unshielded | 468Ohm Max | 52 @ 25kHz | 65kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.550" Dia x 0.880" L (13.97mm x 22.35mm) | - |
|

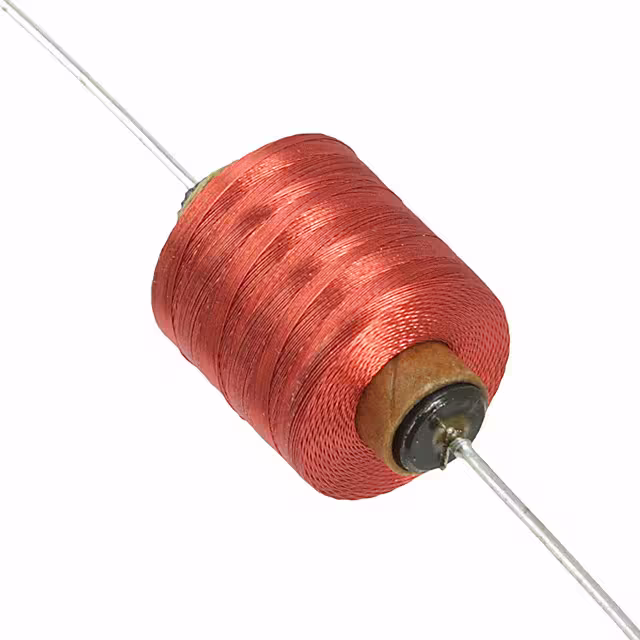

70F501AF-RCFIXED IND 500MH 30MA 736 OHM TH Bourns Inc. |
3,384 |
|
规格书 |
70F | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 500 mH | ±5% | 30 mA | - | Unshielded | 736Ohm Max | 53 @ 25kHz | 52kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|

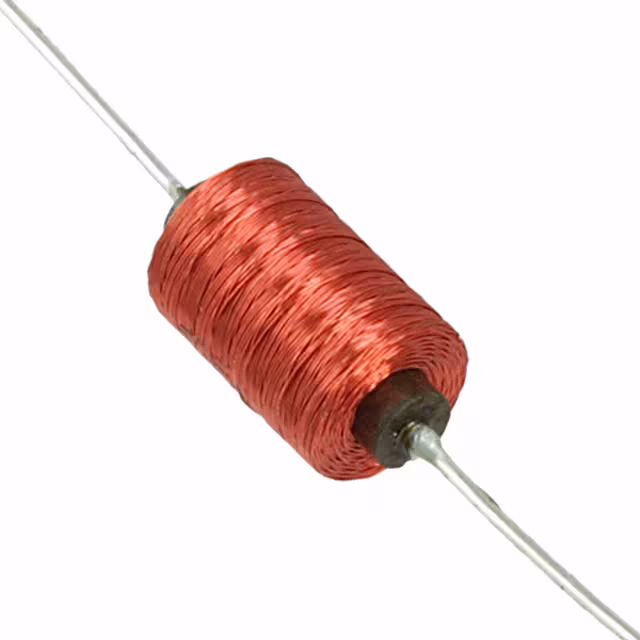

70F122AI-RCFIXED IND 12MH 50MA 100 OHM TH Bourns Inc. |
2,946 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 12 mH | ±5% | 50 mA | - | Unshielded | 100Ohm Max | 46 @ 79kHz | 360kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
