| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

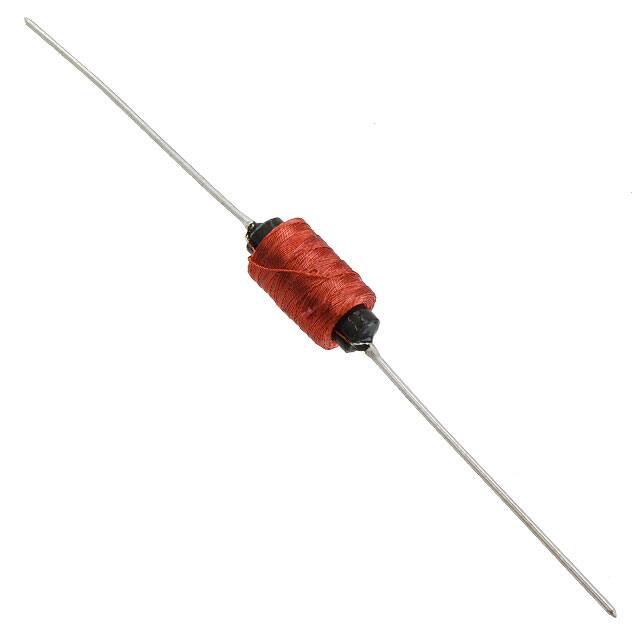

70F272AF-RCFIXED IND 27MH 45MA 120 OHM TH Bourns Inc. |
2,105 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 mH | ±5% | 45 mA | - | Unshielded | 120Ohm Max | 61 @ 79kHz | 244kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|
70F273AI-RCFIXED IND 2.7MH 57MA 45.6 OHM TH Bourns Inc. |
2,158 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.7 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 50 @ 250kHz | 880kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
|
70F304AI-RCFIXED IND 300UH 106MA 13.2OHM TH Bourns Inc. |
3,473 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 300 µH | ±5% | 106 mA | - | Unshielded | 13.2Ohm Max | 46 @ 790kHz | 2.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
|
70F687AP-RCFIXED IND 680NH 1A 200 MOHM TH Bourns Inc. |
1,895 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 680 nH | ±20% | 1 A | - | Unshielded | 200mOhm Max | 48 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F752AF-RCFIXED IND 75MH 33MA 222 OHM TH Bourns Inc. |
2,057 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 75 mH | ±5% | 33 mA | - | Unshielded | 222Ohm Max | 53 @ 79kHz | 174kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|
70F337AP-RCFIXED IND 330NH 1.69A 700MOHM TH Bourns Inc. |
3,598 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 330 nH | ±20% | 1.69 A | - | Unshielded | 700mOhm Max | 47 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F754AI-RCFIXED IND 750UH 80MA 22.9 OHM TH Bourns Inc. |
2,820 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 750 µH | ±5% | 80 mA | - | Unshielded | 22.9Ohm Max | 40 @ 790kHz | 1.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.210" Dia x 0.250" L (5.33mm x 6.35mm) | - |
|
|
70F755AI-RCFIXED IND 75UH 162MA 4.56 OHM TH Bourns Inc. |
2,305 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 75 µH | ±5% | 162 mA | - | Unshielded | 4.56Ohm Max | 38 @ 2.5MHz | 7.2MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.180" Dia x 0.250" L (4.57mm x 6.35mm) | - |
|
70F391AF-RCFIXED IND 390MH 33MA 617 OHM TH Bourns Inc. |
2,066 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 mH | ±5% | 33 mA | - | Unshielded | 617Ohm Max | 54 @ 25kHz | 56kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.600" Dia x 0.880" L (15.24mm x 22.35mm) | - |
|
|
70F756AI-RCFIXED IND 7.5UH 566MA 624MOHM TH Bourns Inc. |
2,418 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 7.5 µH | ±10% | 566 mA | - | Unshielded | 624mOhm Max | 32 @ 7.9MHz | 44MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
