购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

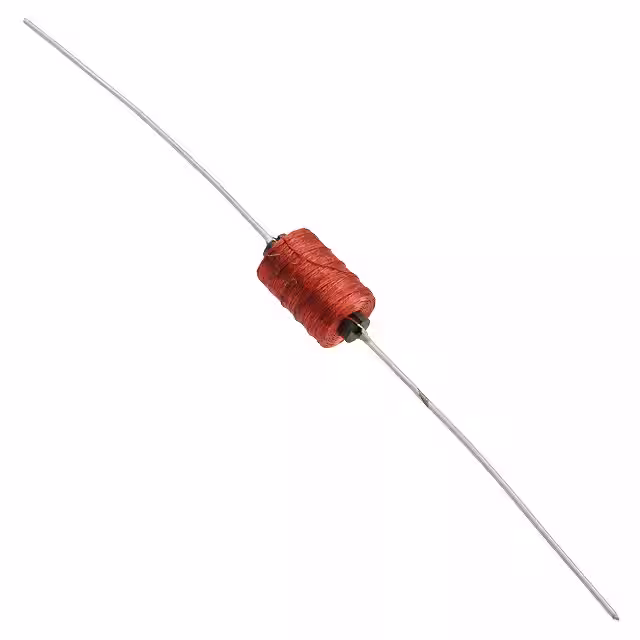

70F152AI-RCFIXED IND 15MH 47MA 113 OHM TH Bourns Inc. |
3,579 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 mH | ±5% | 47 mA | - | Unshielded | 113Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
|

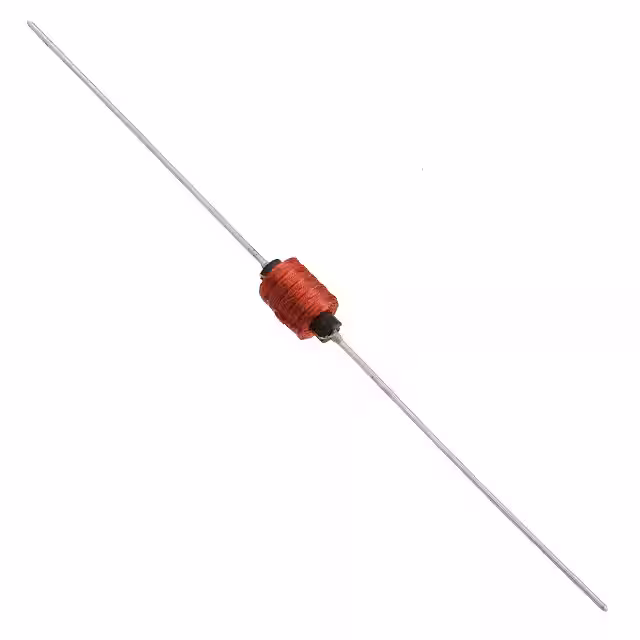

70F253AI-RCFIXED IND 2.5MH 57MA 45.6 OHM TH Bourns Inc. |
4,058 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.5 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 48 @ 250kHz | 960kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|

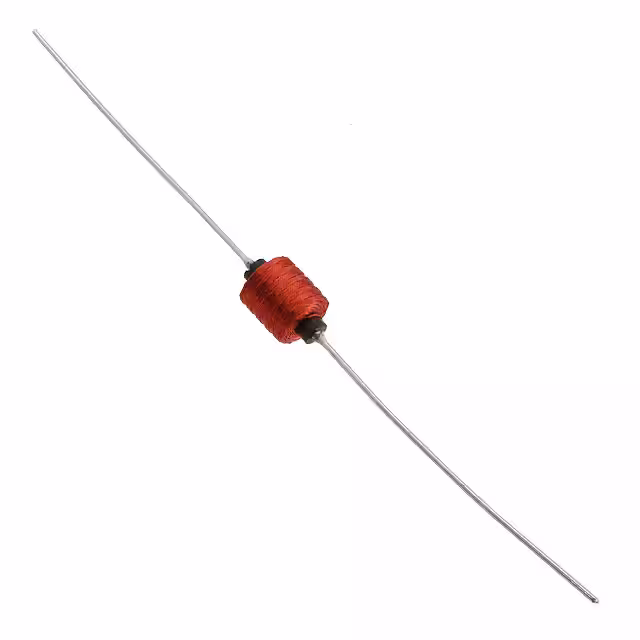

70F563AI-RCFIXED IND 5.6MH 46MA 69.6 OHM TH Bourns Inc. |
4,553 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 mH | ±5% | 46 mA | - | Unshielded | 69.6Ohm Max | 53 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.300" Dia x 0.380" L (7.62mm x 9.65mm) | - |
|
70F252AF-RCFIXED IND 25MH 46MA 115 OHM TH Bourns Inc. |
1,591 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 mH | ±5% | 46 mA | - | Unshielded | 115Ohm Max | 59 @ 79kHz | 250kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.340" Dia x 0.630" L (8.64mm x 16.00mm) | - |
|
4622-RCFIXED IND 10UH 1.5A 110 MOHM TH Bourns Inc. |
1,183 |
|
规格书 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±5% | 1.5 A | - | Unshielded | 110mOhm Max | 69 @ 2.52MHz | 40MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4624-RCFIXED IND 15UH 1A 170 MOHM TH Bourns Inc. |
4,324 |
|
规格书 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±5% | 1 A | - | Unshielded | 170mOhm Max | 62 @ 2.52MHz | 33MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4626-RCFIXED IND 24UH 800MA 340 MOHM TH Bourns Inc. |
1,071 |
|
规格书 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 24 µH | ±5% | 800 mA | - | Unshielded | 340mOhm Max | 65 @ 2.52MHz | 25MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4628-RCFIXED IND 39UH 600MA 650 MOHM TH Bourns Inc. |
3,385 |
|
规格书 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 39 µH | ±5% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.52MHz | 20MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4632-RCFIXED IND 100UH 400MA 3 OHM TH Bourns Inc. |
4,711 |
|
规格书 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 100 µH | ±5% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
4652-RCFIXED IND 1MH 160MA 19 OHM TH Bourns Inc. |
4,400 |
|
规格书 |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1 mH | ±5% | 160 mA | - | Unshielded | 19Ohm Max | 59 @ 252kHz | 3.7MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | - |
