购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

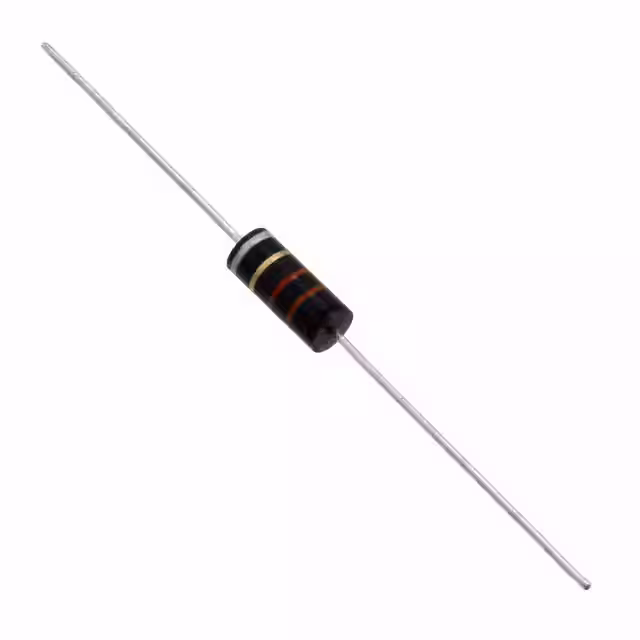

9310-04-RCFIXED IND 330NH 1.4A 90 MOHM TH Bourns Inc. |
3,643 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 1.4 A | - | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

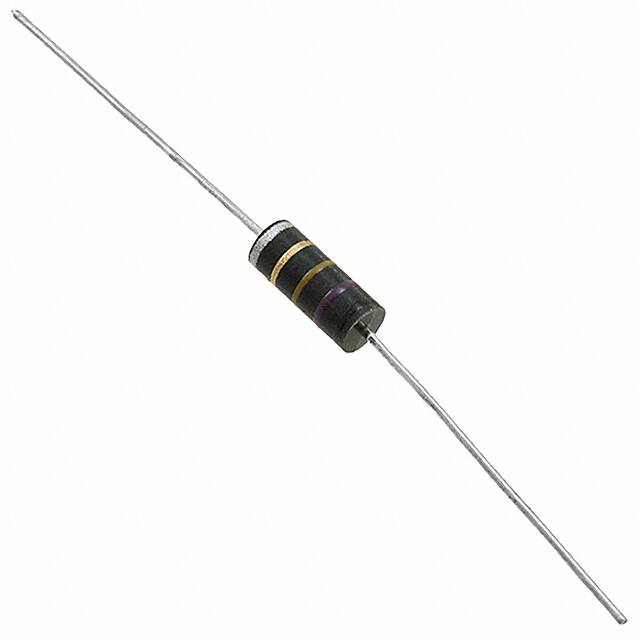

9310-06-RCFIXED IND 470NH 1.225A 120MOHM Bourns Inc. |
1,836 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 1.225 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
9310-12-RCFIXED IND 1UH 830MA 290 MOHM TH Bourns Inc. |
1,249 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 830 mA | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

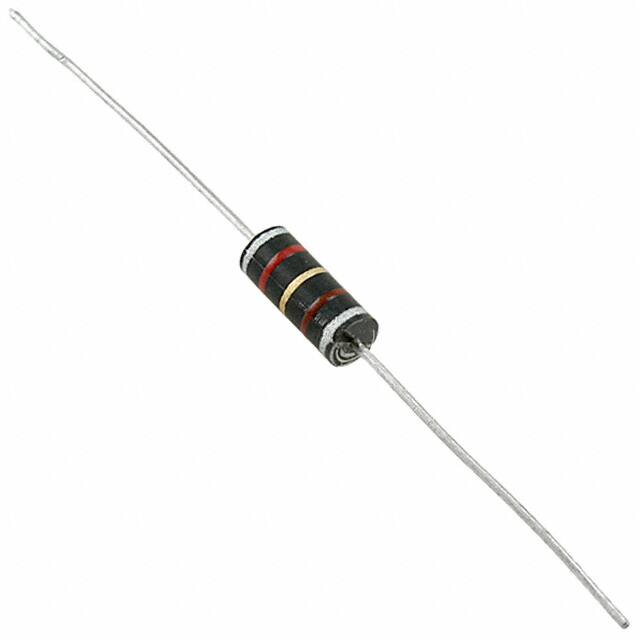

9310-14-RCFIXED IND 1.2UH 650MA 420MOHM TH Bourns Inc. |
3,736 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 650 mA | - | Unshielded | 420mOhm Max | 33 @ 7.9MHz | 180MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

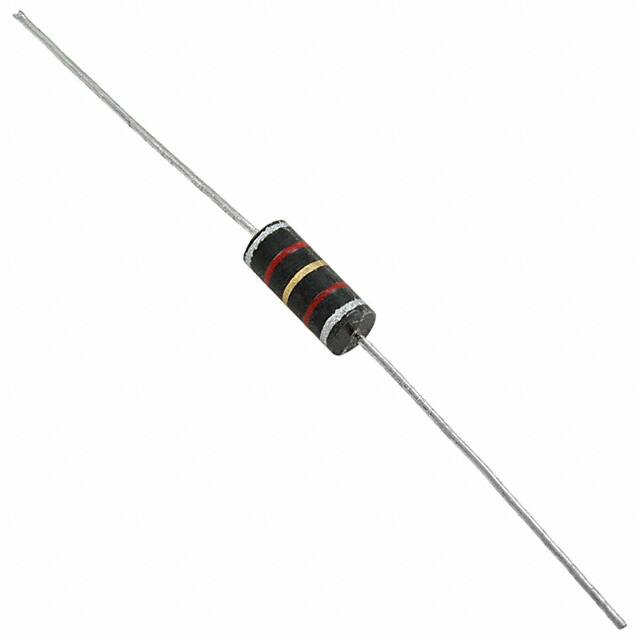

9310-20-RCFIXED IND 2.2UH 435MA 950MOHM TH Bourns Inc. |
1,937 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 435 mA | - | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

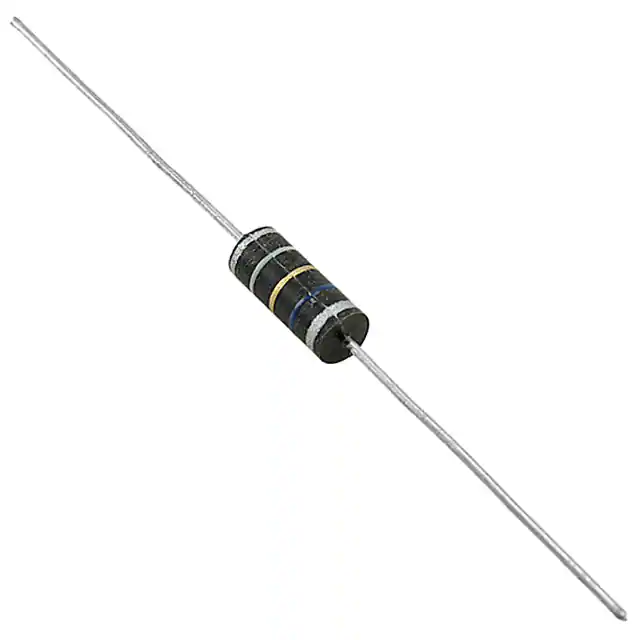

9310-32-RCFIXED IND 6.8UH 600MA 500MOHM TH Bourns Inc. |
1,476 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 600 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
9310-36-RCFIXED IND 10UH 445MA 900 MOHM TH Bourns Inc. |
4,570 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 445 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

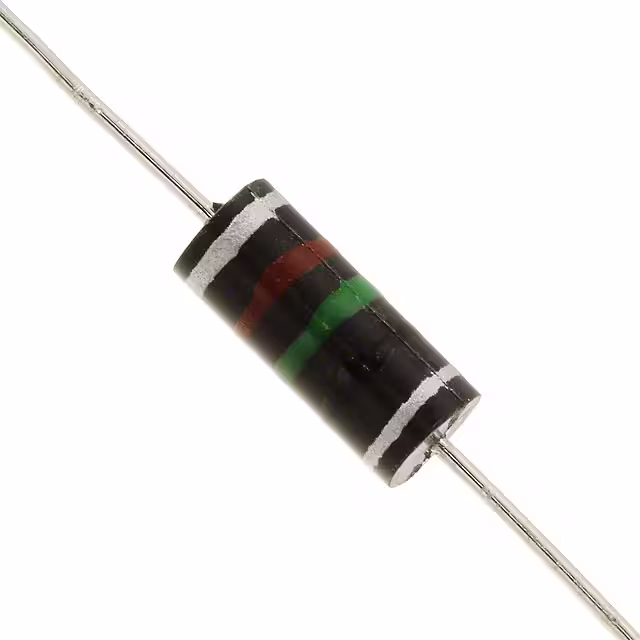

9310-40-RCFIXED IND 15UH 370MA 1.4 OHM TH Bourns Inc. |
1,422 |
|
规格书 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 370 mA | - | Unshielded | 1.4Ohm Max | 65 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

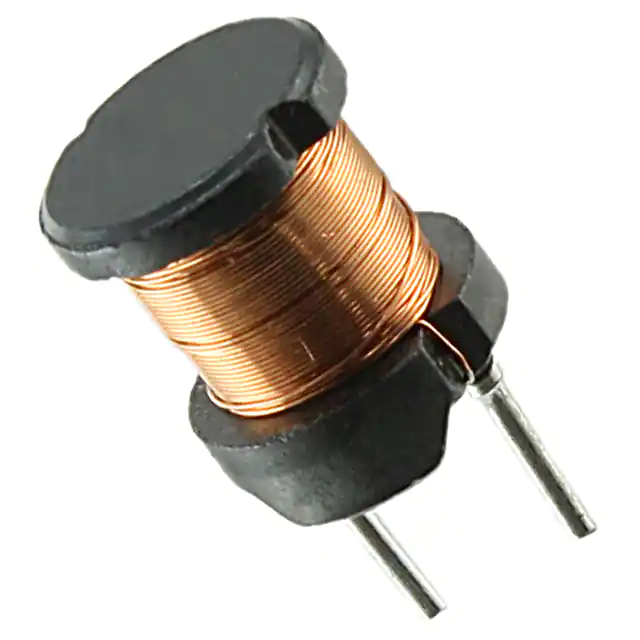

RL895-333K-RCFIXED IND 33MH 48MA 64.2 OHM TH Bourns Inc. |
4,401 |
|
规格书 |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 48 mA | - | Unshielded | 64.2Ohm Max | 70 @ 79.6kHz | 210kHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
9220-18-RCFIXED IND 620UH 88MA 13 OHM TH Bourns Inc. |
4,739 |
|
规格书 |
9220 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 620 µH | ±5% | 88 mA | - | Unshielded | 13Ohm Max | 60 @ 7.9MHz | 3.5MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
