购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI100505-27NJFIXED IND 27NH 200MA 700MOHM SMD Bourns Inc. |
4,606 |
|
规格书 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 27 nH | ±5% | 200 mA | - | Unshielded | 700mOhm Max | 8 @ 100MHz | 1.6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-39NJFIXED IND 39NH 100MA 900MOHM SMD Bourns Inc. |
3,563 |
|
规格书 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 39 nH | ±5% | 100 mA | - | Unshielded | 900mOhm Max | 8 @ 100MHz | 1.2GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

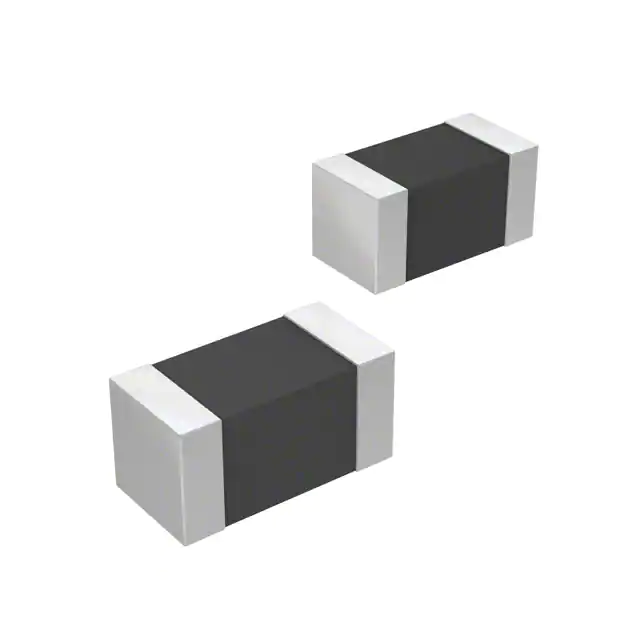

CM160808-1N8DLFIXED IND 1.8NH 500MA 80MOHM SMD Bourns Inc. |
3,000 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 1.8 nH | ±0.3nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-2N2DLFIXED IND 2.2NH 500MA 90MOHM SMD Bourns Inc. |
3,311 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 2.2 nH | ±0.3nH | 500 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-4N7JLFIXED IND 4.7NH 450MA 170MOHM SM Bourns Inc. |
2,554 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 4.7 nH | ±5% | 450 mA | - | Unshielded | 170mOhm Max | 9 @ 100MHz | 4.8GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-6N8JLFIXED IND 6.8NH 430MA 200MOHM SM Bourns Inc. |
1,837 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 6.8 nH | ±5% | 430 mA | - | Unshielded | 200mOhm Max | 9 @ 100MHz | 3.55GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-15NJLFIXED IND 15NH 350MA 410MOHM SMD Bourns Inc. |
4,526 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 15 nH | ±5% | 350 mA | - | Unshielded | 410mOhm Max | 10 @ 100MHz | 2.5GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-18NJLFIXED IND 18NH 350MA 450MOHM SMD Bourns Inc. |
4,118 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 18 nH | ±5% | 350 mA | - | Unshielded | 450mOhm Max | 10 @ 100MHz | 2.3GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-22NJLFIXED IND 22NH 300MA 500MOHM SMD Bourns Inc. |
2,013 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 22 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 10 @ 100MHz | 2GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-33NJLFIXED IND 33NH 300MA 600MOHM SMD Bourns Inc. |
4,712 |
|
规格书 |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 33 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 10 @ 100MHz | 1.8GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
