购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL187-273J-RCFIXED IND 27MH 30MA 80 OHM TH Bourns Inc. |
3,507 |
|
规格书 |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 mH | ±5% | 30 mA | - | Unshielded | 80Ohm Max | 100 @ 79.6kHz | 300kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-333J-RCFIXED IND 33MH 30MA 80 OHM TH Bourns Inc. |
2,881 |
|
规格书 |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 30 mA | - | Unshielded | 80Ohm Max | 100 @ 79.6kHz | 300kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|

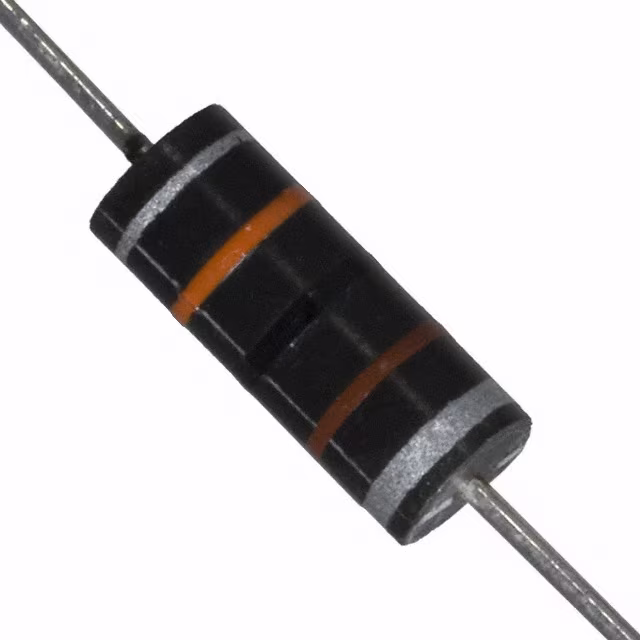

9250A-106-RCFIXED IND 10MH 24MA 137 OHM TH Bourns Inc. |
2,203 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 10 mH | ±10% | 24 mA | 14mA | Shielded | 137Ohm Max | 40 @ 250kHz | 470kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-107-RCFIXED IND 100MH 11MA 678 OHM TH Bourns Inc. |
1,541 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 100 mH | ±10% | 11 mA | 3mA | Shielded | 678Ohm Max | 18 @ 79kHz | 110kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-126-RCFIXED IND 12MH 23MA 143 OHM TH Bourns Inc. |
4,094 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 12 mH | ±10% | 23 mA | 13mA | Shielded | 143Ohm Max | 30 @ 79kHz | 330kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-226-RCFIXED IND 22MH 17MA 274 OHM TH Bourns Inc. |
2,849 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 22 mH | ±10% | 17 mA | 9mA | Shielded | 274Ohm Max | 27 @ 79kHz | 250kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-276-RCFIXED IND 27MH 16MA 308 OHM TH Bourns Inc. |
4,963 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 27 mH | ±10% | 16 mA | 8mA | Shielded | 308Ohm Max | 27 @ 79kHz | 210kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

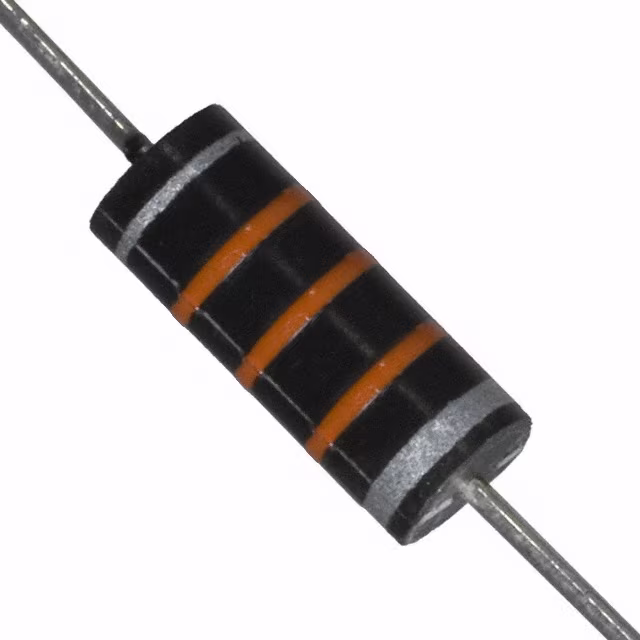

9250A-336-RCFIXED IND 33MH 15MA 343 OHM TH Bourns Inc. |
3,268 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 33 mH | ±10% | 15 mA | 7.5mA | Shielded | 343Ohm Max | 27 @ 79kHz | 190kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

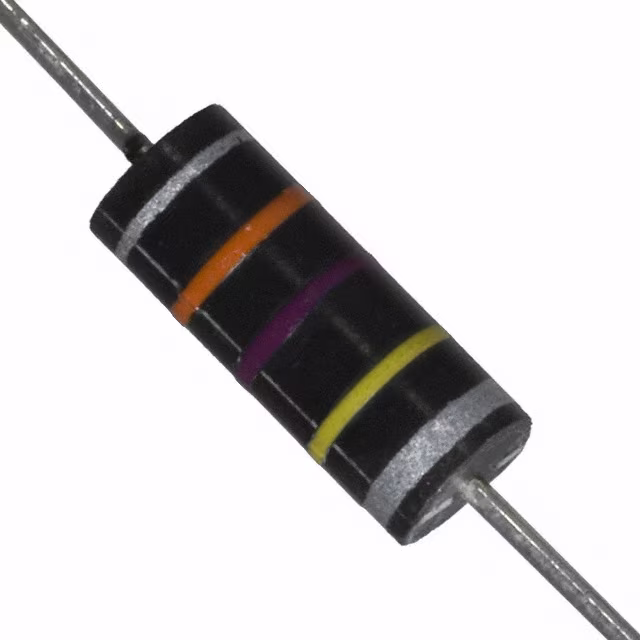

9250A-476-RCFIXED IND 47MH 13MA 473 OHM TH Bourns Inc. |
4,453 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 47 mH | ±10% | 13 mA | 5.5mA | Shielded | 473Ohm Max | 23 @ 79kHz | 160kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

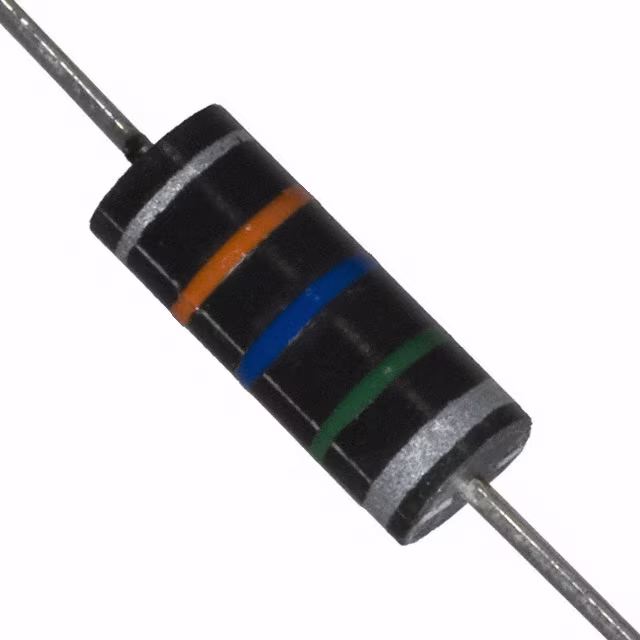

9250A-566-RCFIXED IND 56MH 13MA 512 OHM TH Bourns Inc. |
3,460 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 56 mH | ±10% | 13 mA | 5mA | Shielded | 512Ohm Max | 23 @ 79kHz | 140kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
