购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

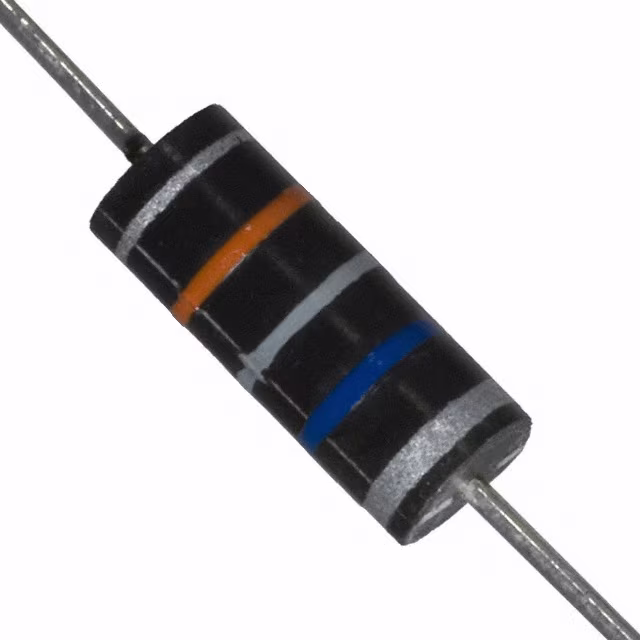

9250A-686-RCFIXED IND 68MH 12MA 580 OHM TH Bourns Inc. |
2,943 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 68 mH | ±10% | 12 mA | 4mA | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-156-RCFIXED IND 15MH 22MA 157 OHM TH Bourns Inc. |
3,334 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 15 mH | ±10% | 22 mA | 12mA | Shielded | 157Ohm Max | 30 @ 79kHz | 290kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250A-186-RCFIXED IND 18MH 21MA 175 OHM TH Bourns Inc. |
2,843 |
|
规格书 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 18 mH | ±10% | 21 mA | 10mA | Shielded | 175Ohm Max | 30 @ 79kHz | 280kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

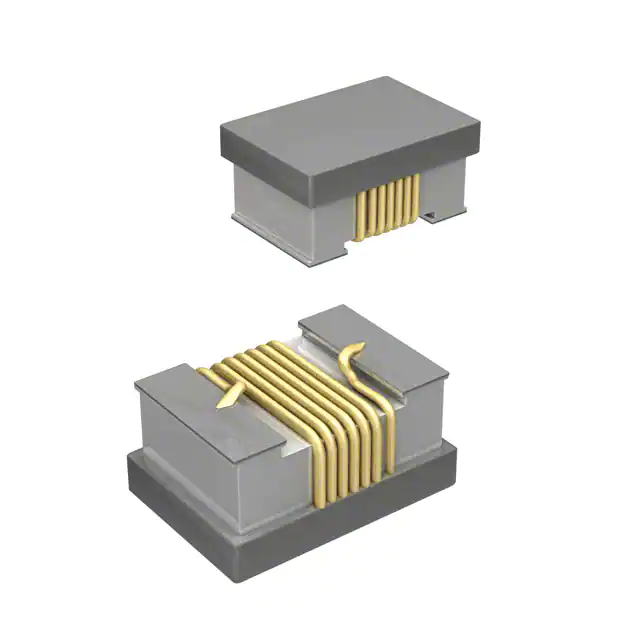

CW201212-1R0GFIXED IND 1NH 600MA SMD Bourns Inc. |
1,908 |
|
规格书 |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±2% | 600 mA | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
CW252016-1R0GFIXED IND 1UH 330MA 1.75 OHM SMD Bourns Inc. |
2,356 |
|
规格书 |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±2% | 330 mA | - | Unshielded | 1.75Ohm Max | 25 @ 50MHz | 290MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
CW252016-6R8JFIXED IND 6.8NH 150MA 6 OHM SMD Bourns Inc. |
1,057 |
|
规格书 |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 150 mA | - | Unshielded | 6Ohm | 18 @ 7.9MHz | 25MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

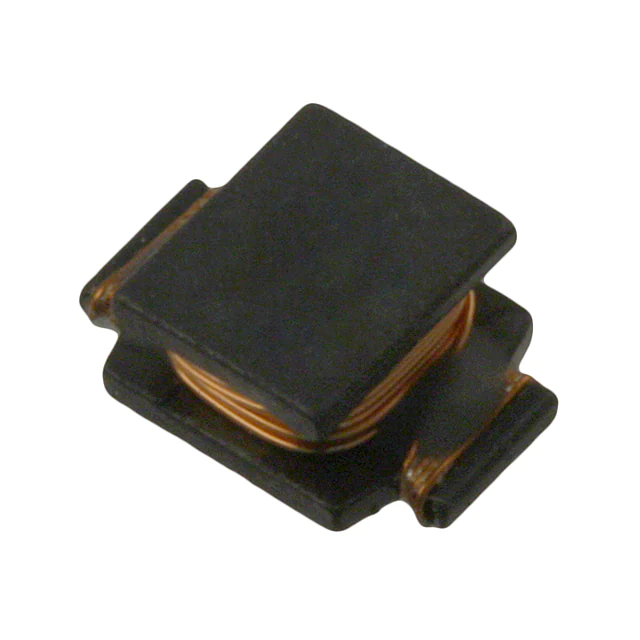

SDR0703-100MLFIXED IND 10UH 1A 170 MOHM SMD Bourns Inc. |
1,219 |
|
规格书 |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1.4A | Unshielded | 170mOhm Max | 23 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
74F156AP-RCFIXED IND 1.5UH 900MA 250MOHM TH Bourns Inc. |
2,101 |
|
规格书 |
74F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1.5 µH | ±20% | 900 mA | - | Unshielded | 250mOhm Max | 45 @ 7.96MHz | 160MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.200" Dia x 0.500" L (5.08mm x 12.70mm) | - |
|

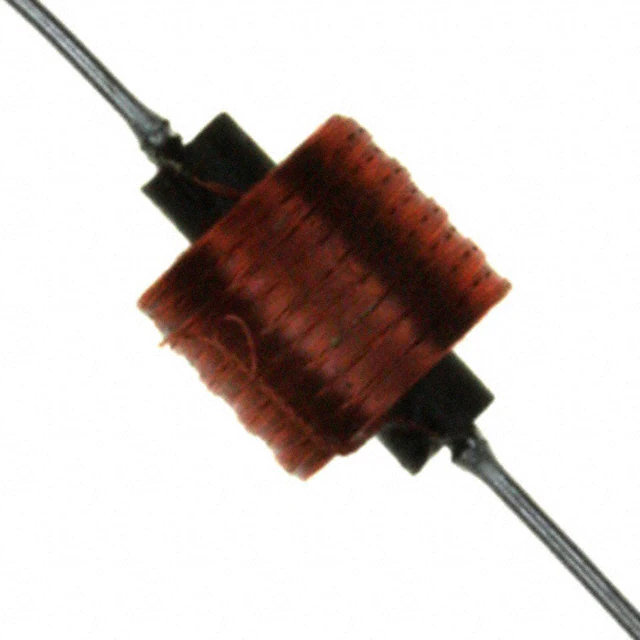

70F753AI-RCFIXED IND 7.5MH 41MA 85.2 OHM TH Bourns Inc. |
3,334 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 7.5 mH | ±5% | 41 mA | - | Unshielded | 85.2Ohm Max | 49 @ 250kHz | 600kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - |
|
5622-RCFIXED IND 500UH 5A 90 MOHM TH Bourns Inc. |
2,402 |
|
规格书 |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 5 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
