| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

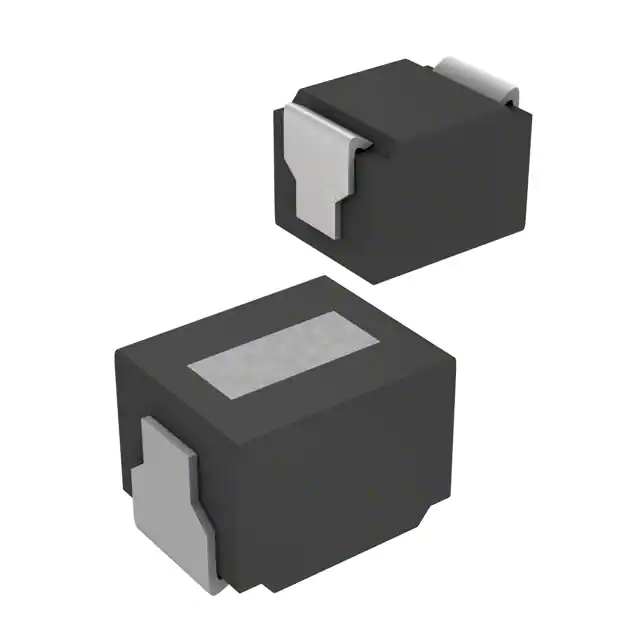

CM252016-100KLFIXED IND 10UH 80MA 3.5 OHM SMD Bourns Inc. |
3,145 |
|
规格书 |
CM252016 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 80 mA | - | Unshielded | 3.5Ohm Max | 25 @ 2.52MHz | 32MHz | - | -20°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.063" (1.60mm) |
|
|
CM252016-220KLFIXED IND 22UH 60MA 5.8 OHM SMD Bourns Inc. |
4,558 |
|
规格书 |
CM252016 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 60 mA | - | Unshielded | 5.8Ohm Max | 25 @ 2.52MHz | 22MHz | - | -20°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.063" (1.60mm) |
|
|
CM252016-330KLFIXED IND 33UH 110MA 7.1 OHM SMD Bourns Inc. |
4,356 |
|
规格书 |
CM252016 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 110 mA | - | Unshielded | 7.1Ohm Max | 20 @ 2.52MHz | 20MHz | - | -20°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.063" (1.60mm) |
|
|
CM252016-470KLFIXED IND 47UH 80MA 11 OHM SMD Bourns Inc. |
3,108 |
|
规格书 |
CM252016 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 80 mA | - | Unshielded | 11Ohm Max | 20 @ 2.52MHz | 17MHz | - | -20°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.063" (1.60mm) |
|
|
CM252016-680KLFIXED IND 68UH 70MA 16.6 OHM SMD Bourns Inc. |
1,472 |
|
规格书 |
CM252016 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 70 mA | - | Unshielded | 16.6Ohm Max | 20 @ 2.52MHz | 15MHz | - | -20°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.063" (1.60mm) |
|
|
CM252016-101KLFIXED IND 100UH 60MA 21 OHM SMD Bourns Inc. |
1,035 |
|
规格书 |
CM252016 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 60 mA | - | Unshielded | 21Ohm Max | 15 @ 796kHz | 12MHz | - | -20°C ~ 100°C | 796 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.063" (1.60mm) |
|
SRP1040-R36MFIXED IND 360NH 28A 1.4 MOHM SMD Bourns Inc. |
3,759 |
|
规格书 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 360 nH | ±20% | 28 A | 40A | Shielded | 1.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-R68MFIXED IND 680NH 23A 2.4 MOHM SMD Bourns Inc. |
2,692 |
|
规格书 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 680 nH | ±20% | 23 A | 32A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-1R0MFIXED IND 1UH 20A 3.5 MOHM SMD Bourns Inc. |
1,181 |
|
规格书 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1 µH | ±20% | 20 A | 28A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-2R2MFIXED IND 2.2UH 12A 8.6 MOHM SMD Bourns Inc. |
4,833 |
|
规格书 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 2.2 µH | ±20% | 12 A | 17A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
