购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM322522-47NMLFIXED IND 47NH 450MA 200MOHM SMD Bourns Inc. |
3,620 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 nH | ±20% | 450 mA | - | Unshielded | 200mOhm Max | 10 @ 100MHz | 680MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM322522-R10MLFIXED IND 100NH 360MA 300MOHM SM Bourns Inc. |
2,601 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 360 mA | - | Unshielded | 300mOhm Max | 10 @ 100MHz | 450MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
SRP1235-R67MFIXED IND 670NH 28A 2.5 MOHM SMD Bourns Inc. |
1,145 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 670 nH | ±20% | 28 A | 40A | Shielded | 2.5mOhm Max | - | 72MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R68MFIXED IND 680NH 28A 2.5 MOHM SMD Bourns Inc. |
4,925 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 680 nH | ±20% | 28 A | 40A | Shielded | 2.5mOhm Max | - | 72MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-1R2MFIXED IND 1.2UH 21A 4.5 MOHM SMD Bourns Inc. |
4,188 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1.2 µH | ±20% | 21 A | 29A | Shielded | 4.5mOhm Max | - | 37MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|

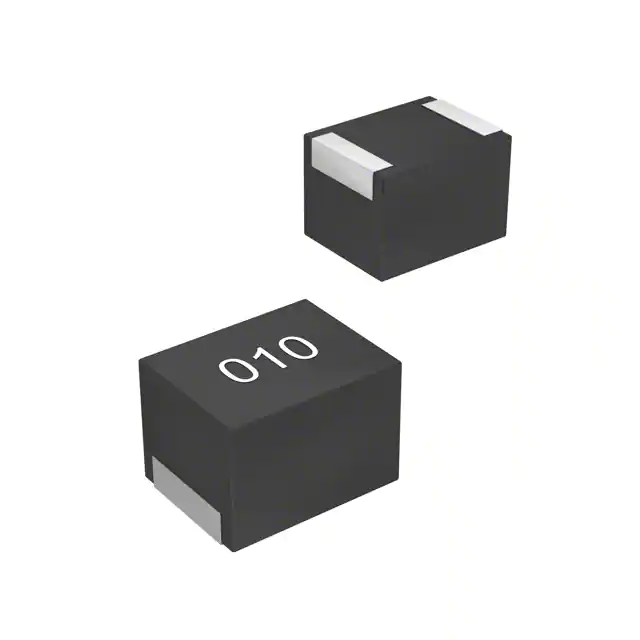

CMH322522-10NMLFIXED IND 10NH 450MA 130MOHM SMD Bourns Inc. |
1,165 |
|
规格书 |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 nH | ±20% | 450 mA | - | Shielded | 130mOhm Max | 15 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CMH322522-12NMLFIXED IND 12NH 450MA 140MOHM SMD Bourns Inc. |
4,261 |
|
规格书 |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 nH | ±20% | 450 mA | - | Shielded | 140mOhm Max | 17 @ 100MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CMH322522-15NMLFIXED IND 15NH 450MA 160MOHM SMD Bourns Inc. |
4,812 |
|
规格书 |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 nH | ±20% | 450 mA | - | Shielded | 160mOhm Max | 19 @ 100MHz | 2.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CMH322522-18NMLFIXED IND 18NH 450MA 180MOHM SMD Bourns Inc. |
2,275 |
|
规格书 |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 nH | ±20% | 450 mA | - | Shielded | 180mOhm Max | 21 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CMH322522-22NMLFIXED IND 22NH 450MA 200MOHM SMD Bourns Inc. |
3,942 |
|
规格书 |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 nH | ±20% | 450 mA | - | Shielded | 200mOhm Max | 23 @ 100MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
