购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM453232-220KLFIXED IND 22UH 180MA 3.2 OHM SMD Bourns Inc. |
17,328 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN2512-2R2MFIXED IND 2.2UH 2.3A 102MOHM SMD Bourns Inc. |
10,371 |
|
规格书 |
SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.3 A | 2.7A | Shielded | 102mOhm Max | 11 @ 1MHz | 80MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

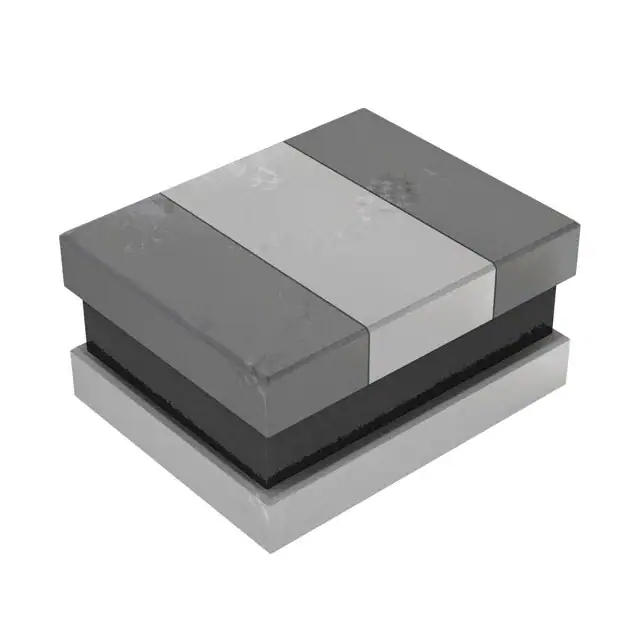

SRN2010-R47MFIXED IND 470NH 3.3A 42 MOHM SMD Bourns Inc. |
6,449 |
|
规格书 |
SRN2010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.3 A | 3.8A | Shielded | 42mOhm Max | 9 @ 1MHz | 230MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.040" (1.02mm) |
|
|
CM453232-470KLFIXED IND 47UH 140MA 5 OHM SMD Bourns Inc. |
4,977 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 140 mA | - | Unshielded | 5Ohm Max | 50 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SRN2512-R47MFIXED IND 470NH 4.4A 32 MOHM SMD Bourns Inc. |
4,752 |
|
规格书 |
SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 4.4 A | 5.5A | Shielded | 32mOhm Max | 8 @ 1MHz | 190MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CM453232-4R7KLFIXED IND 4.7UH 315MA 1 OHM SMD Bourns Inc. |
3,979 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 315 mA | - | Unshielded | 1Ohm Max | 50 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

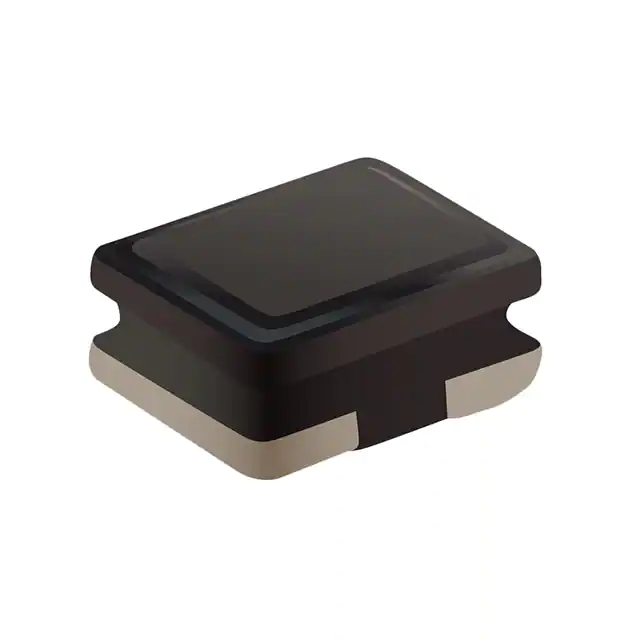

SRN2009T-2R2MFIXED IND 2.2UH 900MA 160MOHM SM Bourns Inc. |
2,633 |
|
规格书 |
SRN2009T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 900 mA | 900mA | Shielded | 160mOhm | 16 @ 1MHz | 150MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|

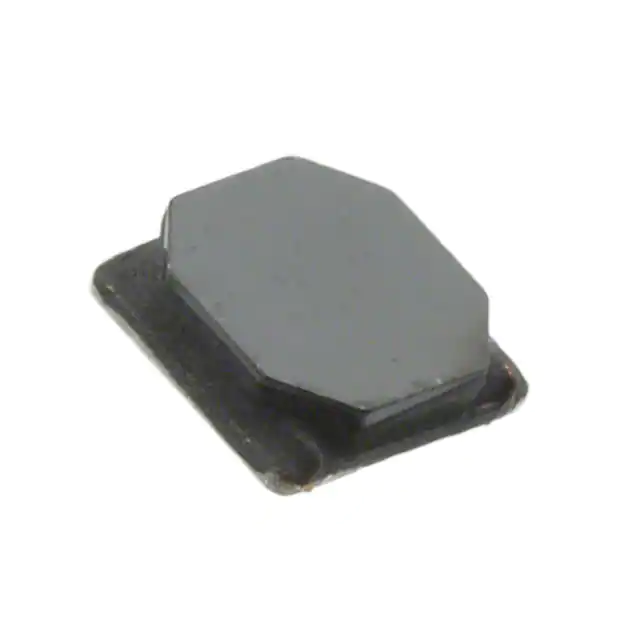

SRN4012T-4R7MFIXED IND 4.7UH 1.5A 95 MOHM SMD Bourns Inc. |
2,339 |
|
规格书 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 1.2A | Shielded | 95mOhm | 6 @ 100kHz | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
CM453232-102KLFIXED IND 1MH 30MA 40 OHM SMD Bourns Inc. |
1,743 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 252kHz | 2.5MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN3012TA-4R7MFIXED IND 4.7UH 1.3A 130MOHM SMD Bourns Inc. |
3,835 |
|
规格书 |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.3 A | 1.05A | Shielded | 130mOhm | 18 @ 1MHz | 55MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
