购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM322522-1R0KLFIXED IND 1UH 230MA 690 MOHM SMD Bourns Inc. |
9,590 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 230 mA | - | Unshielded | 690mOhm Max | 30 @ 7.96MHz | 115MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

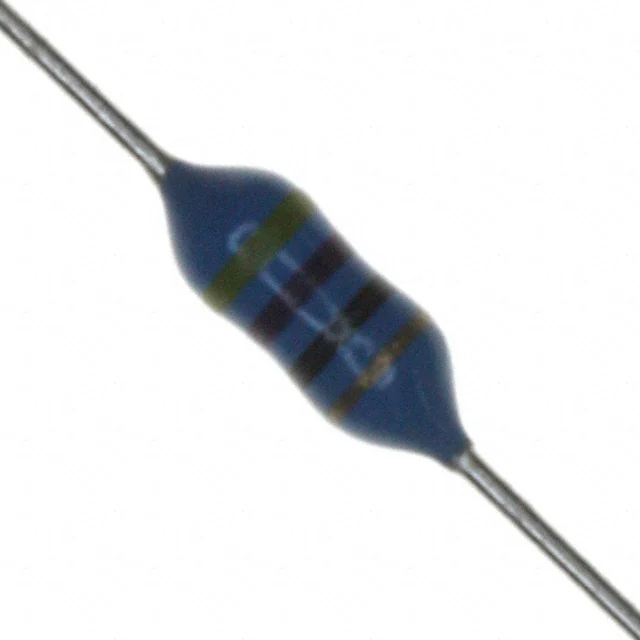

78F470J-RCFIXED IND 47UH 205MA 2.7 OHM TH Bourns Inc. |
8,794 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 205 mA | - | Unshielded | 2.7Ohm Max | 60 @ 2.5MHz | 8.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F151J-TR-RCFIXED IND 150UH 175MA 4 OHM TH Bourns Inc. |
5,634 |
|
规格书 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 175 mA | - | Unshielded | 4Ohm Max | 60 @ 796kHz | 3.5MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
CVH252009-4R7MFIXED IND 4.7UH 1.1A 110MOHM SMD Bourns Inc. |
3,875 |
|
规格书 |
CVH252009 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.1 A | - | Shielded | 110mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CVH252009-1R5MFIXED IND 1.5UH 1.5A 70 MOHM SMD Bourns Inc. |
3,815 |
|
规格书 |
CVH252009 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.5 A | - | Shielded | 70mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CVH252009-3R3MFIXED IND 3.3UH 1.2A 100MOHM SMD Bourns Inc. |
2,500 |
|
规格书 |
CVH252009 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 1.2 A | - | Shielded | 100mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CM322522-100KLFIXED IND 10UH 140MA 2.1 OHM SMD Bourns Inc. |
2,268 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 140 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM322522-101KLFIXED IND 100UH 60MA 10 OHM SMD Bourns Inc. |
1,525 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 60 mA | - | Unshielded | 10Ohm Max | 20 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CW100505-4N7JFIXED IND 4.7NH 640MA 130MOHM SM Bourns Inc. |
249,179 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±5% | 640 mA | - | Unshielded | 130mOhm | 15 @ 250MHz | 4.775GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

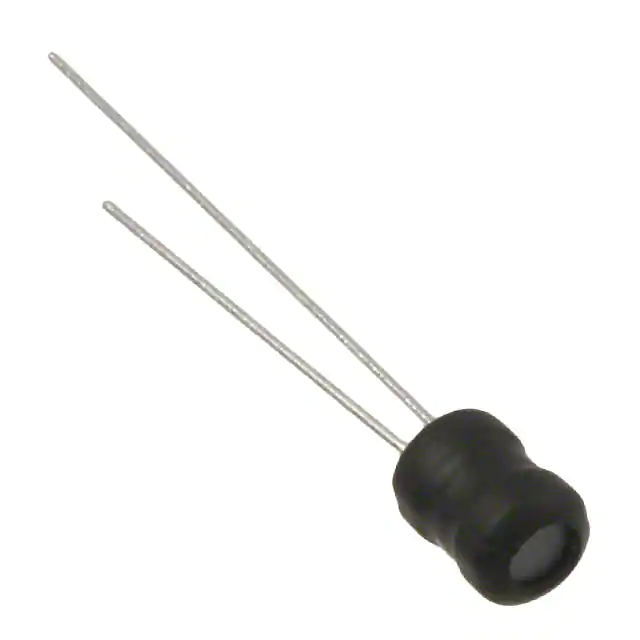

RLB0608-102KLFIXED IND 1MH 100MA 11.5 OHM TH Bourns Inc. |
107,726 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 100 mA | - | Unshielded | 11.5Ohm Max | 55 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
