购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

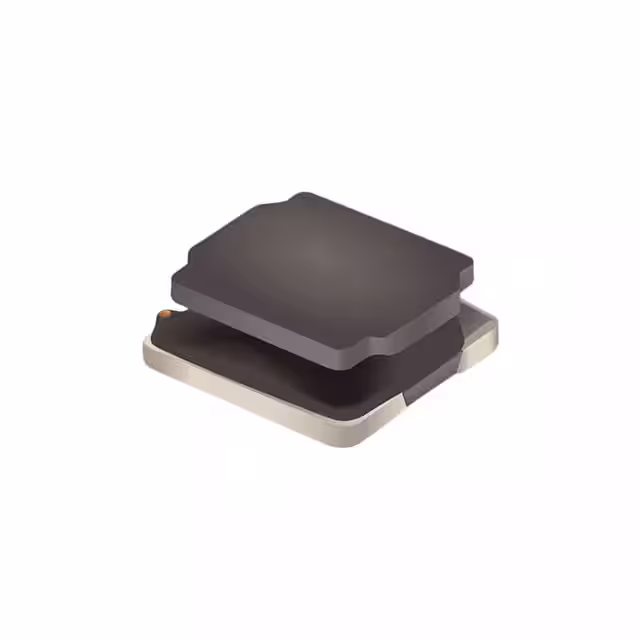

SRN3012TA-100MFIXED IND 10UH 890MA 245MOHM SMD Bourns Inc. |
3,554 |
|
规格书 |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 890 mA | 760mA | Shielded | 245mOhm | 20 @ 1MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
CC453232-470KLFIXED IND 47UH 260MA 1.9 OHM SMD Bourns Inc. |
2,935 |
|
规格书 |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 260 mA | - | Unshielded | 1.9Ohm Max | 10 @ 2.52MHz | 11.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CC453232-1R0KLFIXED IND 1UH 1.05A 110 MOHM SMD Bourns Inc. |
2,868 |
|
规格书 |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.05 A | - | Unshielded | 110mOhm Max | 10 @ 7.96MHz | 180MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CC453232-100KLFIXED IND 10UH 550MA 500MOHM SMD Bourns Inc. |
2,490 |
|
规格书 |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 550 mA | - | Unshielded | 500mOhm Max | 10 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SRN3012TA-1R0YFIXED IND 1UH 2A 42 MOHM SMD Bourns Inc. |
2,211 |
|
规格书 |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2 A | 2.15A | Shielded | 42mOhm | 10 @ 1MHz | 150MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SRN3012TA-220MFIXED IND 22UH 610MA 580MOHM SMD Bourns Inc. |
2,156 |
|
规格书 |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 610 mA | 490mA | Shielded | 580mOhm | 22 @ 1MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
CC453232-120KLFIXED IND 12UH 500MA 600MOHM SMD Bourns Inc. |
1,802 |
|
规格书 |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 500 mA | - | Unshielded | 600mOhm Max | 10 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CC453232-101KLFIXED IND 100UH 180MA 4 OHM SMD Bourns Inc. |
1,735 |
|
规格书 |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 180 mA | - | Unshielded | 4Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

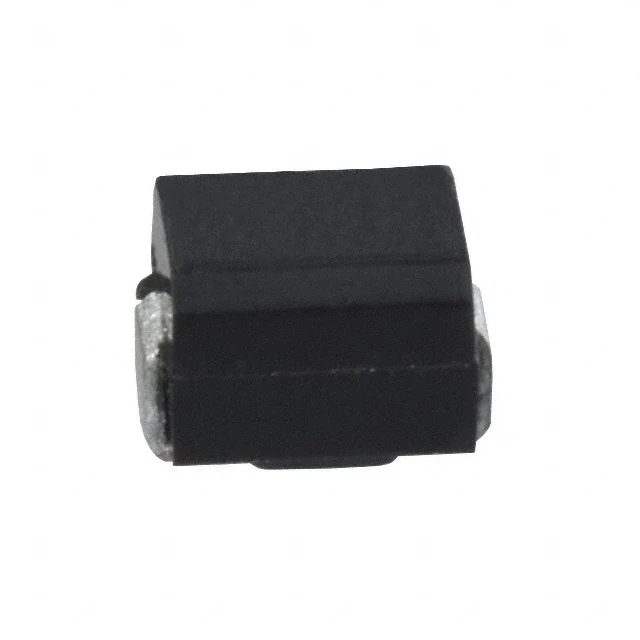

PM1210-100J-RCFIXED IND 10UH 140MA 2.1 OHM SMD Bourns Inc. |
65,804 |
|
规格书 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 140 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

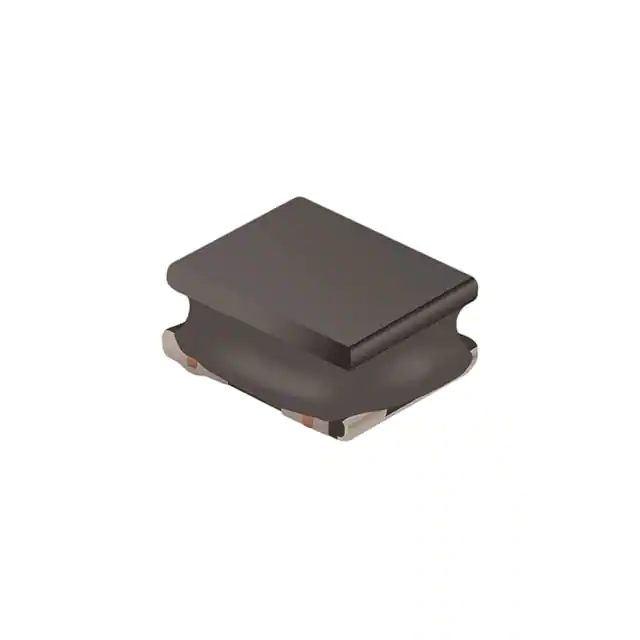

SRN2010TA-220MFIXED IND 22UH 270MA 2 OHM SMD Bourns Inc. |
30,108 |
|
规格书 |
SRN2010TA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 270 mA | 380mA | Shielded | 2Ohm | 16 @ 1MHz | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
