购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP3212A-3R3MIND METAL POWDER 3.3UH 3.1A Bourns Inc. |
2,542 |
|
规格书 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 3.1 A | 3.4A | Shielded | 101mOhm Max | 5 @ 100kHz | 28MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
78F220J-RCFIXED IND 22UH 285MA 1.2 OHM TH Bourns Inc. |
2,432 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 285 mA | - | Unshielded | 1.2Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
SRP2512TMA-R47MFIXED IND 470NH 6.2A 0.018OHM SM Bourns Inc. |
2,301 |
|
规格书 |
SRP2512TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 6.2 A | 6.2A | Shielded | 18mOhm Max | 15 @ 1MHz | 112MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

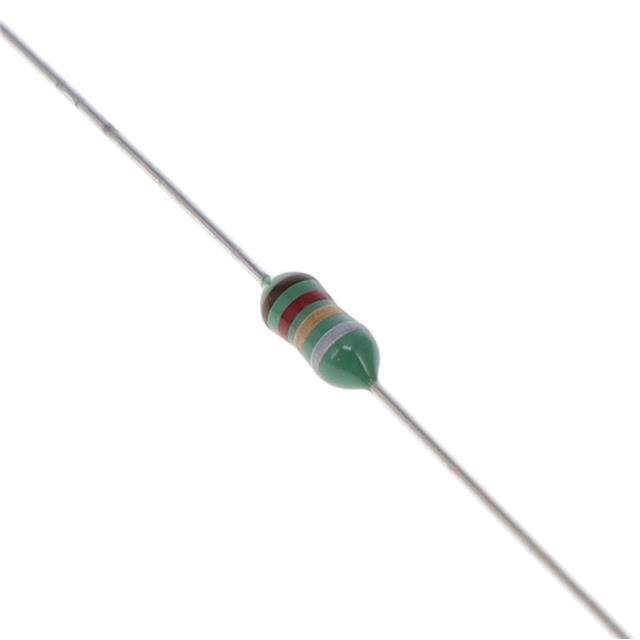

78F1R2K-RCFIXED IND 1.2UH 740MA 180MOHM TH Bourns Inc. |
2,299 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 740 mA | - | Unshielded | 180mOhm Max | 40 @ 7.9MHz | 165MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
SRP3212A-1R5MIND METAL POWDER 1.5UH 4.4A Bourns Inc. |
1,883 |
|
规格书 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 4.4 A | 5A | Shielded | 53mOhm Max | 5 @ 100kHz | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
78F471J-RCFIXED IND 470UH 90MA 14 OHM TH Bourns Inc. |
1,153 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 90 mA | - | Unshielded | 14Ohm Max | 60 @ 790kHz | 2.55MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
CM322522-470KLFIXED IND 47UH 75MA 7 OHM SMD Bourns Inc. |
3,517 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 75 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
78FR22K-RCFIXED IND 220NH 1.15A 75 MOHM TH Bourns Inc. |
16,398 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 1.15 A | - | Unshielded | 75mOhm Max | 40 @ 25MHz | 380MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
CM322522-4R7KLFIXED IND 4.7UH 165MA 1.5OHM SMD Bourns Inc. |
10,911 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 165 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM322522-220KLFIXED IND 22UH 105MA 3.7 OHM SMD Bourns Inc. |
10,066 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 105 mA | - | Unshielded | 3.7Ohm Max | 30 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
