| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77F8R2K-TR-RCFIXED IND 8.2UH 530MA 520MOHM TH Bourns Inc. |
4,875 |
|
规格书 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 530 mA | - | Unshielded | 520mOhm Max | 80 @ 7.96MHz | 53MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
SRP3212A-R33MIND METAL POWDER 0.33UH 8.5A Bourns Inc. |
4,835 |
|
规格书 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 8.5 A | 9.1A | Shielded | 13mOhm Max | 3 @ 100kHz | 132MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

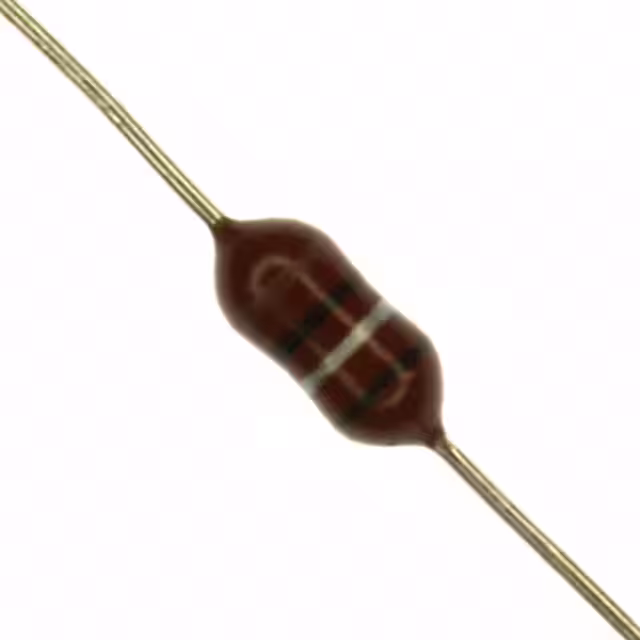

78FR10M-RCFIXED IND 100NH 1.2A 60 MOHM TH Bourns Inc. |
4,133 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 1.2 A | - | Unshielded | 60mOhm Max | 20 @ 25MHz | 400MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

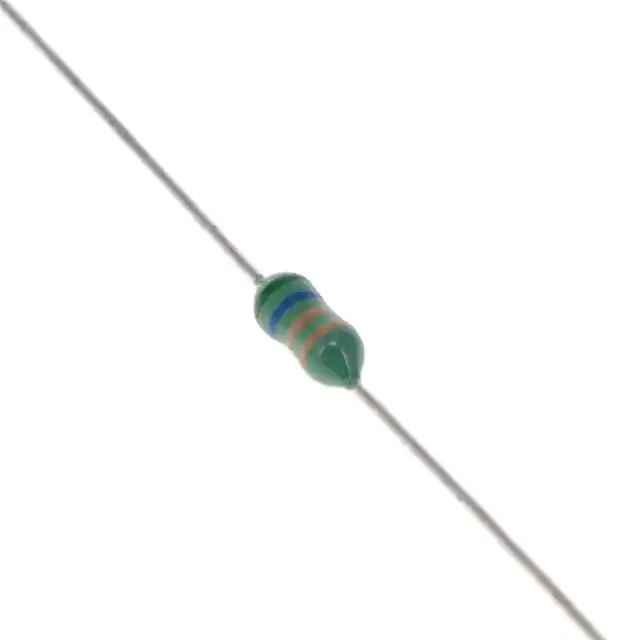

78F5R6J-RCFIXED IND 5.6UH 500MA 400MOHM TH Bourns Inc. |
4,114 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 500 mA | - | Unshielded | 400mOhm Max | 45 @ 7.9MHz | 32MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

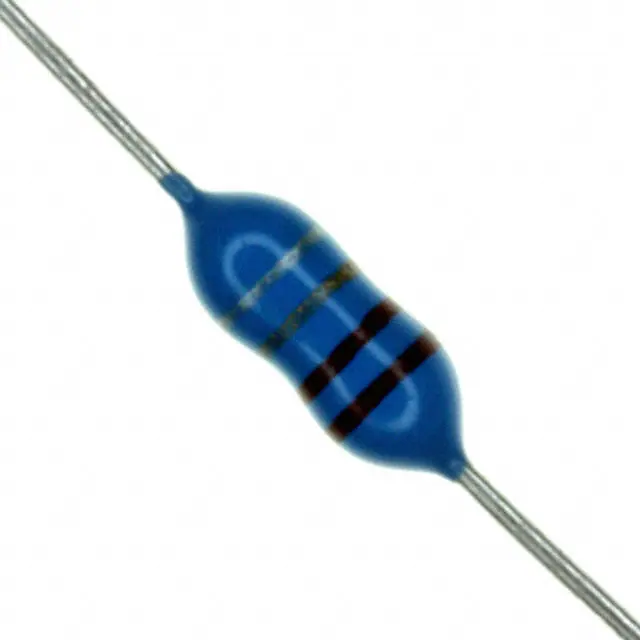

78F2R2K-RCFIXED IND 2.2UH 630MA 250MOHM TH Bourns Inc. |
4,072 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 630 mA | - | Unshielded | 250mOhm Max | 50 @ 7.9MHz | 110MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

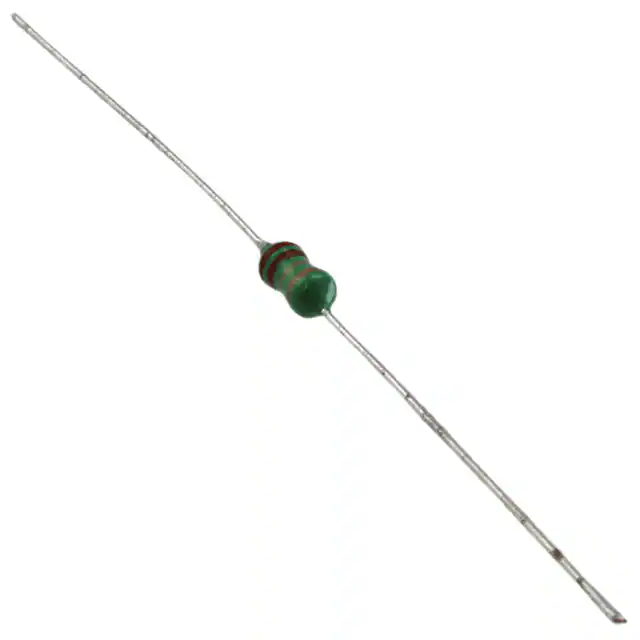

78F3R3J-RCFIXED IND 3.3UH 575MA 300MOHM TH Bourns Inc. |
3,406 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 575 mA | - | Unshielded | 300mOhm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F102J-RCFIXED IND 1MH 60MA 31.4 OHM TH Bourns Inc. |
3,334 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 60 mA | - | Unshielded | 31.4Ohm Max | 60 @ 790kHz | 1.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
SRP3212A-4R7MIND METAL POWDER 4.7UH 2.2A Bourns Inc. |
3,112 |
|
规格书 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 2.2 A | 2.8A | Shielded | 146mOhm Max | 5 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
77F1R0K-TR-RCFIXED IND 1UH 920MA 170 MOHM TH Bourns Inc. |
2,768 |
|
规格书 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 920 mA | - | Unshielded | 170mOhm Max | 50 @ 25.2MHz | 157MHz | - | -55°C ~ 105°C | 25.2 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
SRP3212A-2R2MIND METAL POWDER 2.2UH 4A Bourns Inc. |
2,651 |
|
规格书 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 4 A | 4.8A | Shielded | 73mOhm Max | 5 @ 100kHz | 41MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
