购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

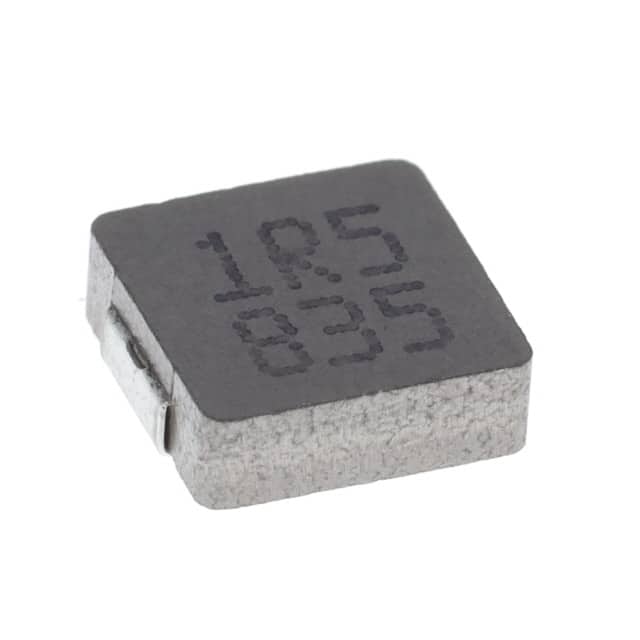

0624CDMCCDS-1R5MCFIXED IND 1.5UH 8.7A 19.2MOHM SM Sumida America Components Inc. |
173 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 8.7 A | 15A | Shielded | 19.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
0518CDMCCDS-4R7MCFIXED IND 4.7UH 3.2A 85MOHM SMD Sumida America Components Inc. |
2,154 |
|
规格书 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 3.2 A | 5.1A | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|

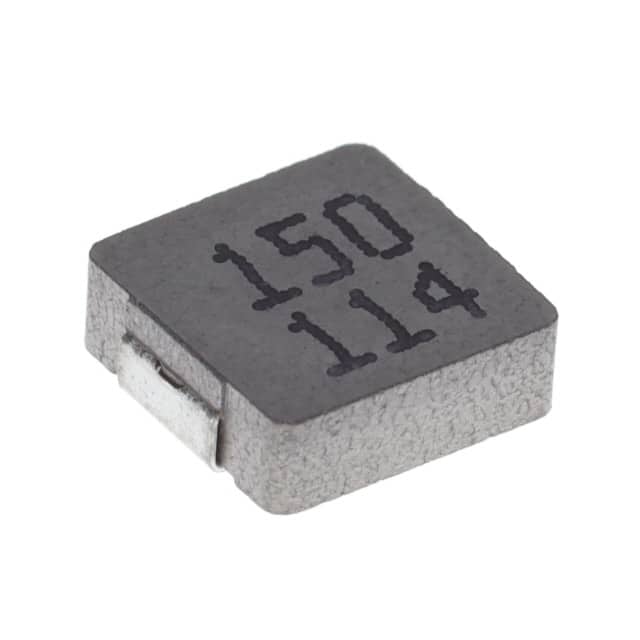

0624CDMCCDS-150MCFIXED IND 15UH 2.5A 160MOHM SMD Sumida America Components Inc. |
583 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 2.5 A | 3.7A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
RCH664NP-330KFIXED IND 33UH 1.03A 170 MOHM TH Sumida America Components Inc. |
1,456 |
|
规格书 |
RCH-664 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.03 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.256" (6.50mm) |
|
CDRH5D18NP-180NCFIXED IND 18UH 850MA 210MOHM SMD Sumida America Components Inc. |
258 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±30% | 850 mA | - | Shielded | 210mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
|
CDRH5D18NP-8R9NCFIXED IND 8.9UH 1.25A 116MOHM SM Sumida America Components Inc. |
2,313 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.9 µH | ±30% | 1.25 A | - | Shielded | 116mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|

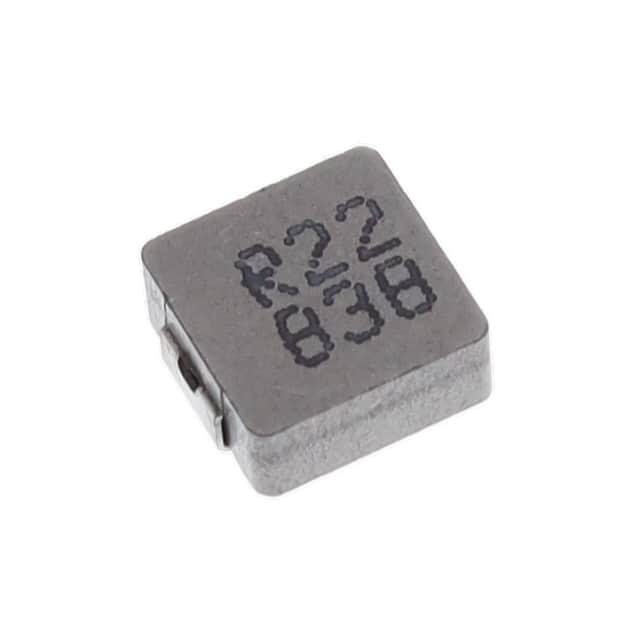

0630CDMCCDS-R22MCFIXED IND 220NH 24A 3 MOHM SMD Sumida America Components Inc. |
850 |
|
规格书 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 24 A | 38A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

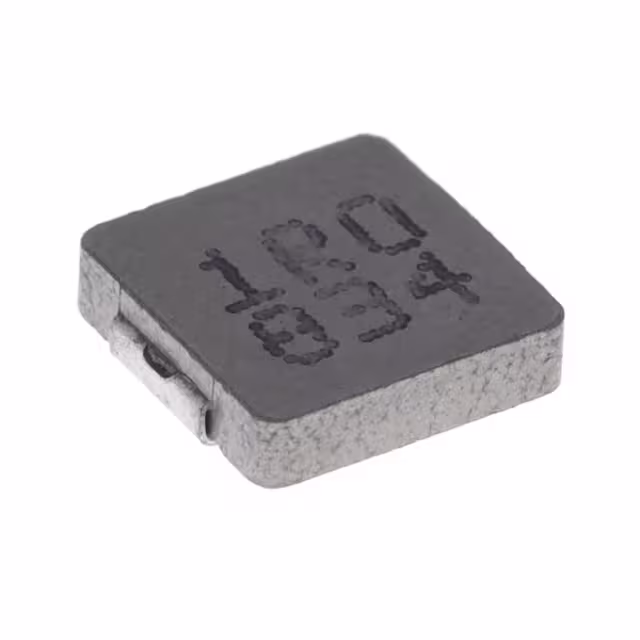

0618CDMCCDS-1R0MCFIXED IND 1UH 8.3A 16 MOHM SMD Sumida America Components Inc. |
702 |
|
规格书 |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 8.3 A | 14.3A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|

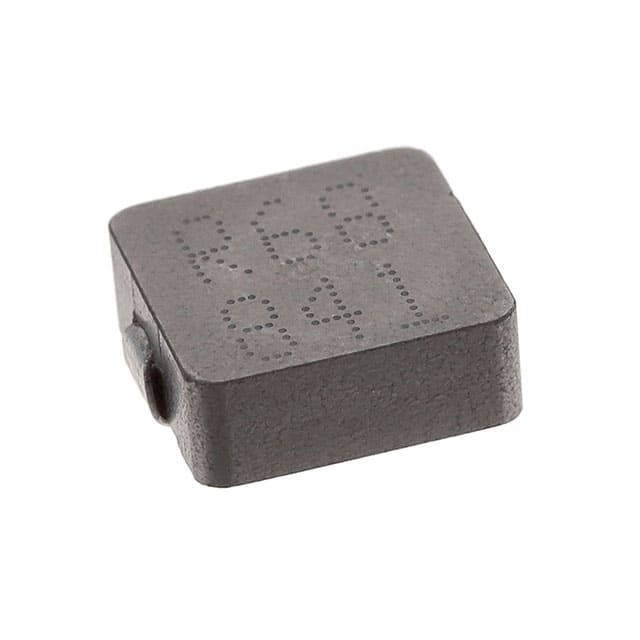

104CDMCCDS-R68MCFIXED IND 680NH 23.5A 2.4MOHM SM Sumida America Components Inc. |
407 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 23.5 A | 39A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

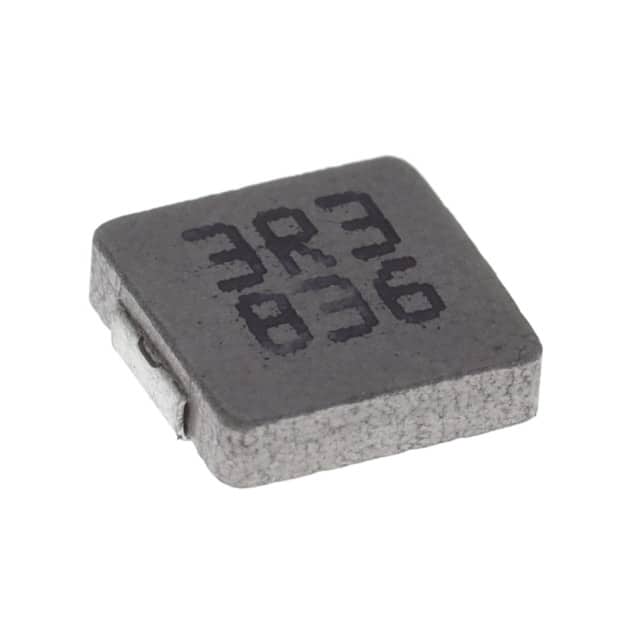

0618CDMCCDS-3R3MCFIXED IND 3.3UH 4.7A 50MOHM SMD Sumida America Components Inc. |
610 |
|
规格书 |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 4.7 A | 8A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
