购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

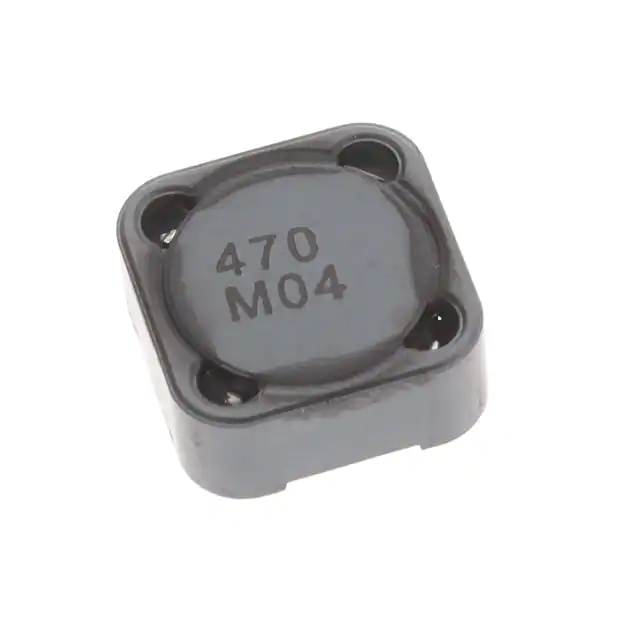

CDRH125L125NP-470MCFIXED IND 47UH 2.42A 93MOHM SMD Sumida America Components Inc. |
501 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.42 A | 2.44A | Shielded | 93mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

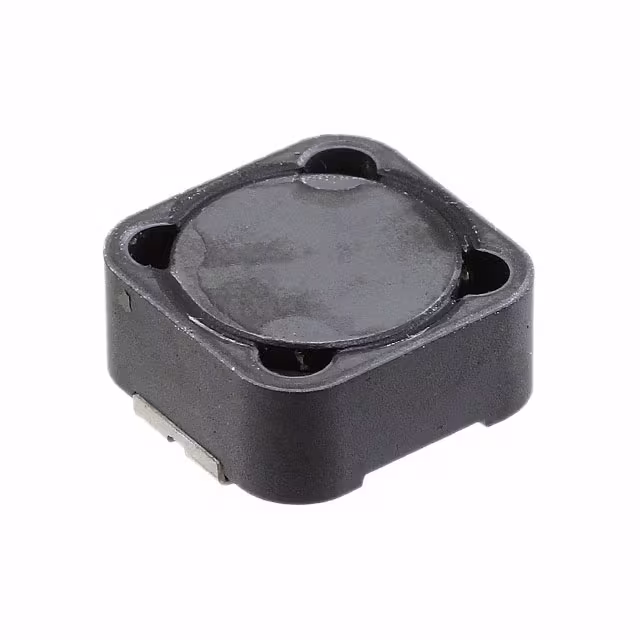

CDRH125L125NP-100MCFIXED IND 10UH 5.3A 25 MOHM SMD Sumida America Components Inc. |
500 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 5.3 A | 5.2A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH125L125NP-150MCFIXED IND 15UH 4.5A 33.8MOHM SMD Sumida America Components Inc. |
514 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 4.5 A | 4.4A | Shielded | 33.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

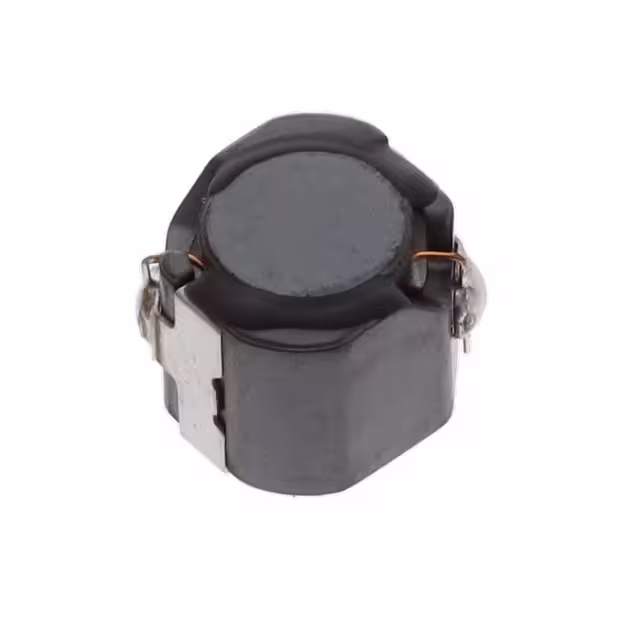

CDRH80D65BT150NP-221MCFIXED IND 220UH 730MA 475MOHM SM Sumida America Components Inc. |
1,000 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 730 mA | 940mA | Shielded | 475mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

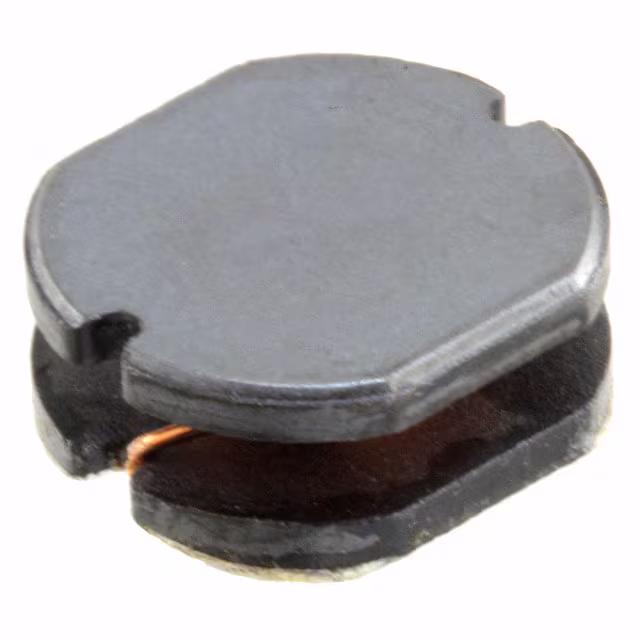

CD104NP-100MCFIXED IND 10UH 2.38A 53 MOHM SMD Sumida America Components Inc. |
1,846 |
|
规格书 |
CD104 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.38 A | - | Unshielded | 53mOhm Max | - | 29.9MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.177" (4.50mm) |
|
CDRR105NP-100MCFIXED IND 10UH 3A 47.5 MOHM SMD Sumida America Components Inc. |
2,773 |
|
规格书 |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3 A | 2.48A | Shielded | 47.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
177CDMCCDS-4R7MCFIXED IND 4.7UH 18A 4.83MOHM SMD Sumida America Components Inc. |
107 |
|
规格书 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 18 A | 35A | Shielded | 4.83mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

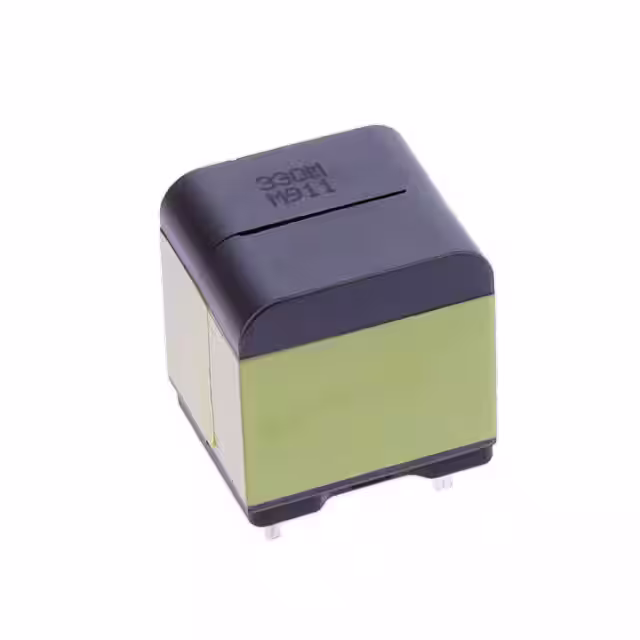

DEP1519BHF-330MFIXED IND 33UH 10A 10.7 MOHM TH Sumida America Components Inc. |
2,752 |
|
规格书 |
DEP1519B | Radial, Vertical, 4 Leads | Box | Active | Wirewound | - | 33 µH | ±20% | 10 A | 9.4A | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|

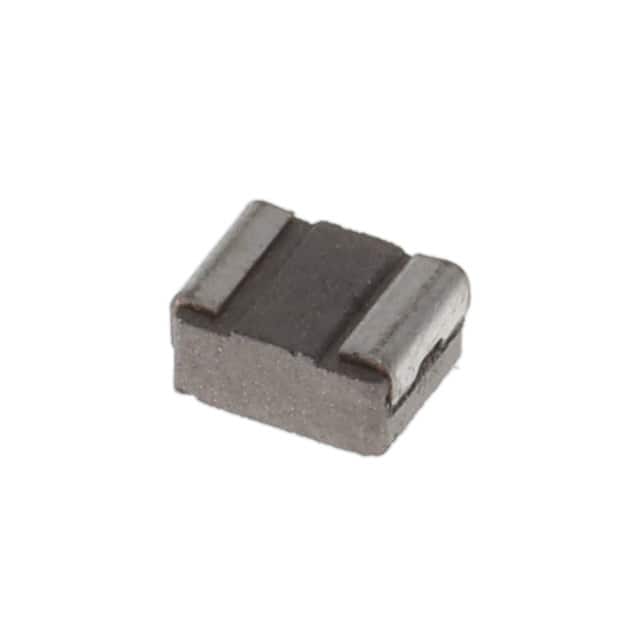

252012CDMCCDS-3R3MCFIXED IND 3.3UH 1.5A 222MOHM SMD Sumida America Components Inc. |
107 |
|
规格书 |
252012CDMCC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | Metal | 3.3 µH | ±20% | 1.5 A | 1.9A | Shielded | 222mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
.jpg)
|
252010CDMCDDS-2R2MCFIXED IND 2.2UH 2.5A 97 MOHM SMD Sumida America Components Inc. |
594 |
|
规格书 |
252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 2.5 A | 2.2A | Shielded | 97mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
