| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

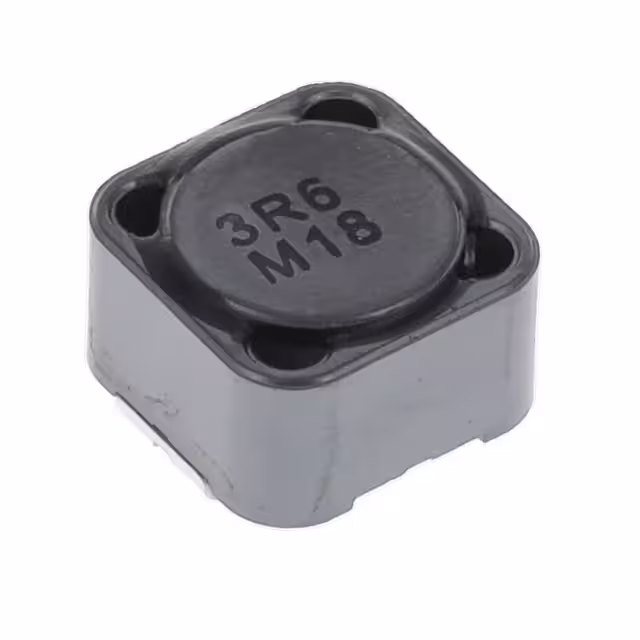

CDRH127L125NP-3R6NCFIXED IND 3.6UH 8.3A 11MOHM SMD Sumida America Components Inc. |
1,314 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 3.6 µH | ±30% | 8.3 A | 13.8A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH127/LDNP-151MCFIXED IND 150UH 1.8A 227MOHM SMD Sumida America Components Inc. |
3,354 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.8 A | - | Shielded | 227mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH60D45BT150NP-3R3NCFIXED IND 3.3UH 3.7A 23.4MOHM SM Sumida America Components Inc. |
1,000 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 3.7 A | 5A | Shielded | 23.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
125CDMCCDS-100MCFIXED IND 10UH 9A 22 MOHM SMD Sumida America Components Inc. |
4,321 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 9 A | 14A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
CDEP147NP-3R1MC-125FIXED IND 3.1UH 17.5A 3.23 MOHM Sumida America Components Inc. |
3,251 |
|
规格书 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.1 µH | ±20% | 17.5 A | 16A | Shielded | 3.23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
CDRH4D18CLDNP-101PCFIXED IND 100UH 350MA 962MOHM SM Sumida America Components Inc. |
890 |
|
规格书 |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±25% | 350 mA | 200mA | Shielded | 962mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
CDRH3D14NP-100NCFIXED IND 10UH 690MA 262MOHM SMD Sumida America Components Inc. |
444 |
|
规格书 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 690 mA | 750mA | Shielded | 262mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|

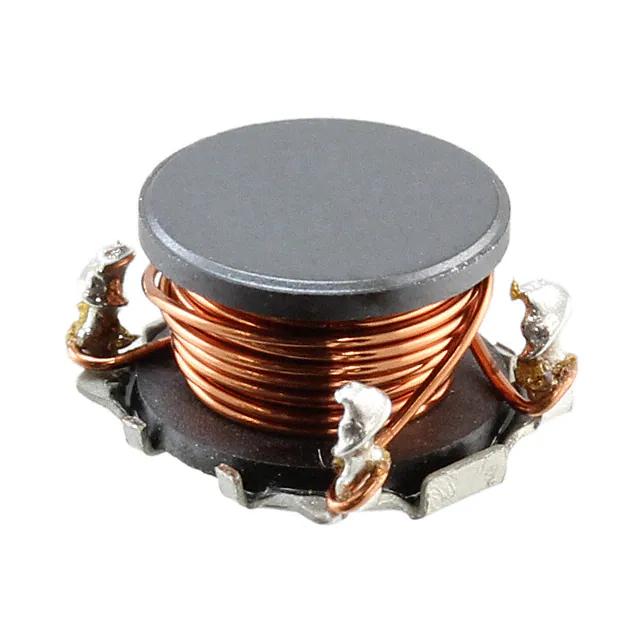

CDH74NP-470KCFIXED IND 47UH 1.2A 230 MOHM SMD Sumida America Components Inc. |
105 |
|
规格书 |
CDH74 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.2 A | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
CDC5D23BNP-150KCFIXED IND 15UH 880MA 166MOHM SMD Sumida America Components Inc. |
3,956 |
|
规格书 |
CDC5D23B | 2323 (5858 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 880 mA | - | Unshielded | 166mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.098" (2.50mm) |
|

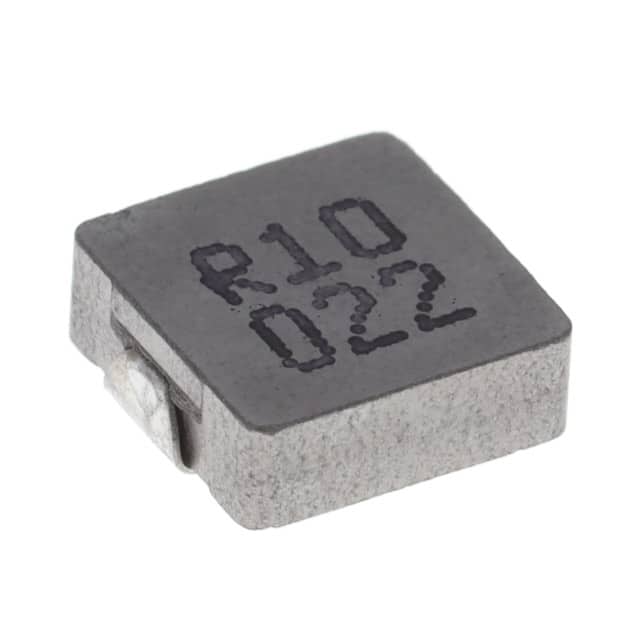

0624CDMCCDS-R10MCFIXED IND 100NH 40A 960U OHM SMD Sumida America Components Inc. |
109 |
|
规格书 |
0624CDMCCDS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 40 A | 40A | Shielded | 960µOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
