购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH5D28NP-5R3NCFIXED IND 5.3UH 1.9A 38 MOHM SMD Sumida America Components Inc. |
620 |
|
规格书 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.3 µH | ±30% | 1.9 A | - | Shielded | 38mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
0624CDMCCDS-R12MCFIXED IND 120NH 40A 960U OHM SMD Sumida America Components Inc. |
692 |
|
规格书 |
0624CDMCCDS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 40 A | 33A | Shielded | 960µOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
CDRH6D38NP-330NCFIXED IND 33UH 1.1A 124 MOHM SMD Sumida America Components Inc. |
1,587 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.1 A | - | Shielded | 124mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
CDRH6D38NP-6R2NCFIXED IND 6.2UH 2.5A 27 MOHM SMD Sumida America Components Inc. |
395 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.2 µH | ±30% | 2.5 A | - | Shielded | 27mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|

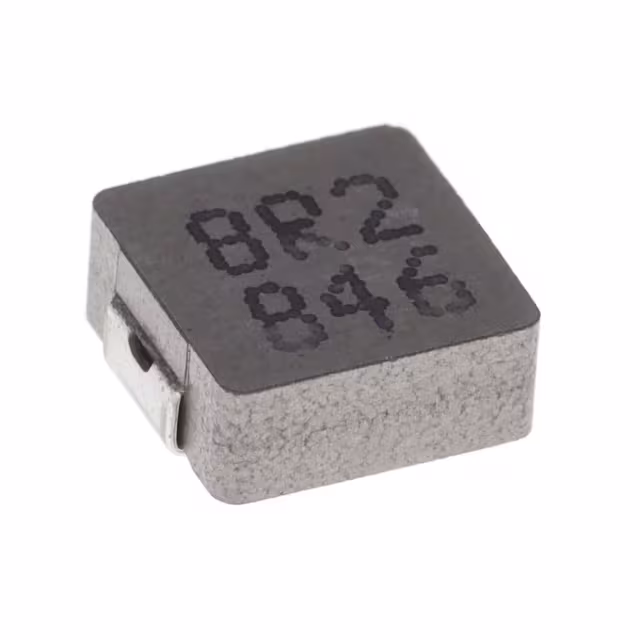

0630CDMCCDS-8R2MCFIXED IND 8.2UH 4.3A 60MOHM SMD Sumida America Components Inc. |
3,550 |
|
规格书 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 4.3 A | 5.8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
CDRH3D18NP-100NCFIXED IND 10UH 900MA 205MOHM SMD Sumida America Components Inc. |
321 |
|
规格书 |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 900 mA | 900mA | Shielded | 205mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
CR75NP-101KCFIXED IND 100UH 720MA 430MOHM SM Sumida America Components Inc. |
856 |
|
规格书 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | - | Unshielded | 430mOhm Max | - | 9.2MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75NP-220KCFIXED IND 22UH 1.5A 110 MOHM SMD Sumida America Components Inc. |
178 |
|
规格书 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.5 A | - | Unshielded | 110mOhm Max | - | 17MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75NP-221KCFIXED IND 220UH 490MA 960MOHM SM Sumida America Components Inc. |
133 |
|
规格书 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 490 mA | - | Unshielded | 960mOhm Max | - | 5.2MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CDRH74NP-330MC-BFIXED IND 33UH 960MA 170MOHM SMD Sumida America Components Inc. |
572 |
|
规格书 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 960 mA | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
