购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH60D45BT150NP-151MCFIXED IND 150UH 720MA 576MOHM SM Sumida America Components Inc. |
785 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 720 mA | 740mA | Shielded | 576mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
0840CDMCCDS-1R5MCFIXED IND 1.5UH 13A 8.4MOHM SMD Sumida America Components Inc. |
743 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 13 A | 13A | Shielded | 8.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-1R0MCFIXED IND 1UH 16.5A 5.6MOHM SMD Sumida America Components Inc. |
2,456 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 16.5 A | 15.3A | Shielded | 5.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-R68MCFIXED IND 680NH 18A 4.3MOHM SMD Sumida America Components Inc. |
1,266 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 18 A | 17.5A | Shielded | 4.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
CDRH50D28BT150NP-1R0NCFIXED IND 1UH 3.6A 18 MOHM SMD Sumida America Components Inc. |
1,725 |
|
规格书 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 3.6 A | 5.5A | Shielded | 18mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

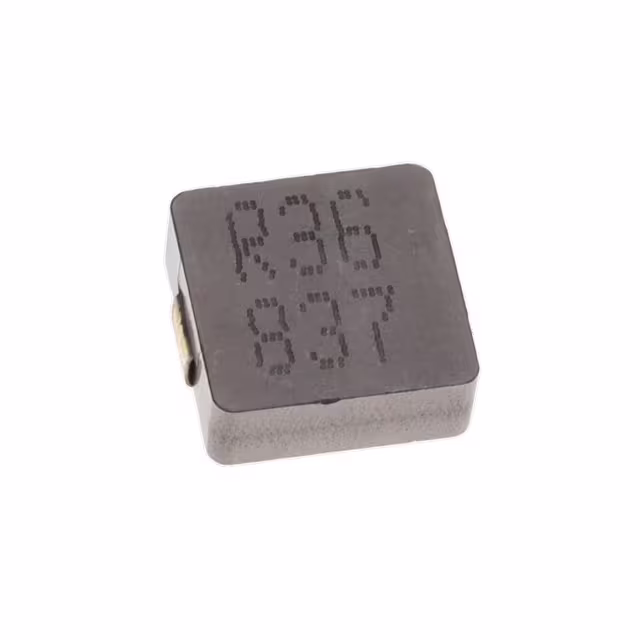

125CDMCCDS-R36MCFIXED IND 360NH 40A 0.95MOHM SMD Sumida America Components Inc. |
497 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 360 nH | ±20% | 40 A | 80A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|

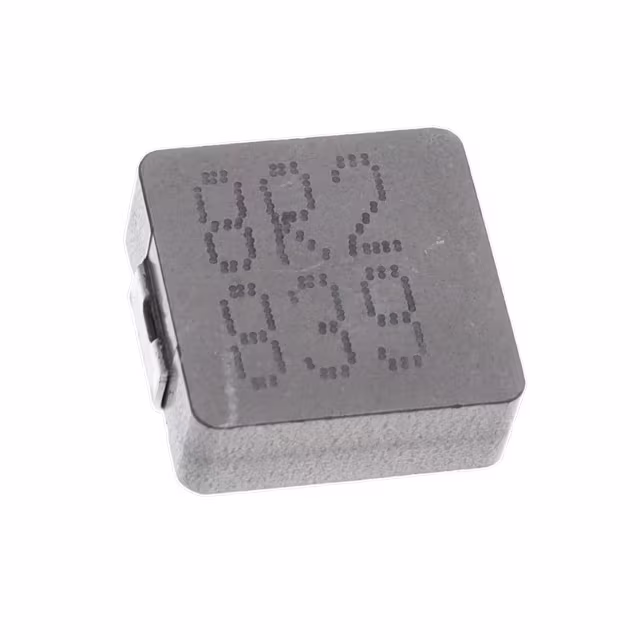

125CDMCCDS-8R2MCFIXED IND 8.2UH 10A 19 MOHM SMD Sumida America Components Inc. |
139 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 10 A | 15A | Shielded | 19mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
CDRH60D45BT150NP-331MCFIXED IND 330UH 490MA 1.16OHM SM Sumida America Components Inc. |
868 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 490 mA | 500mA | Shielded | 1.16Ohm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
|
0840CDMCCDS-R33MCFIXED IND 330NH 24A 3 MOHM SMD Sumida America Components Inc. |
989 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 24 A | 27.5A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|

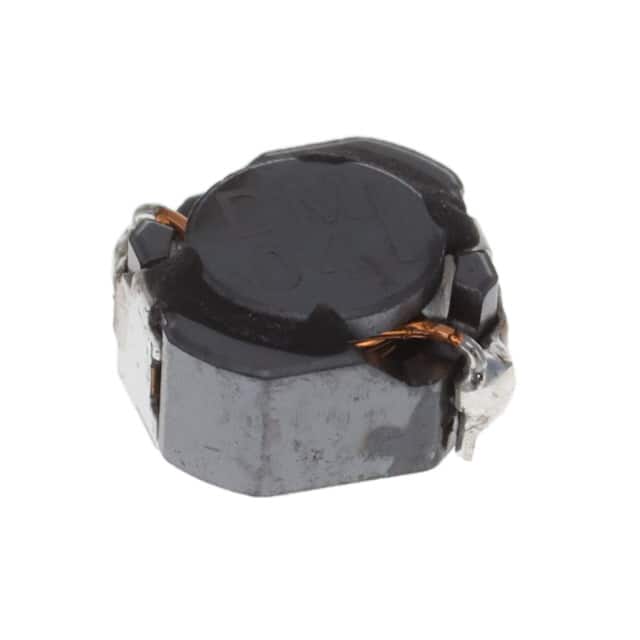

CDRH50D28BT150NP-3R3NCFIXED IND 3.3UH 2.7A 32 MOHM SMD Sumida America Components Inc. |
1,642 |
|
规格书 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 2.7 A | 2.9A | Shielded | 32mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
