购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55083313400FIXED IND 330NH 180MA 1 OHM SMD Sumida America Components Inc. |
174 |
|
规格书 |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 180 mA | - | Unshielded | 1Ohm Max | 35 @ 100MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
CDRH5D28NP-390NCFIXED IND 39UH 700MA 212MOHM SMD Sumida America Components Inc. |
503 |
|
规格书 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±30% | 700 mA | - | Shielded | 212mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CDRH5D28NP-120NCFIXED IND 12UH 1.2A 76 MOHM SMD Sumida America Components Inc. |
211 |
|
规格书 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±30% | 1.2 A | - | Shielded | 76mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
CDRH3D14/HPNP-4R7NCFIXED IND 4.7UH 1.04A 214MOHM SM Sumida America Components Inc. |
400 |
|
规格书 |
CDRH3D14/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 1.04 A | 1.45A | Shielded | 214mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|

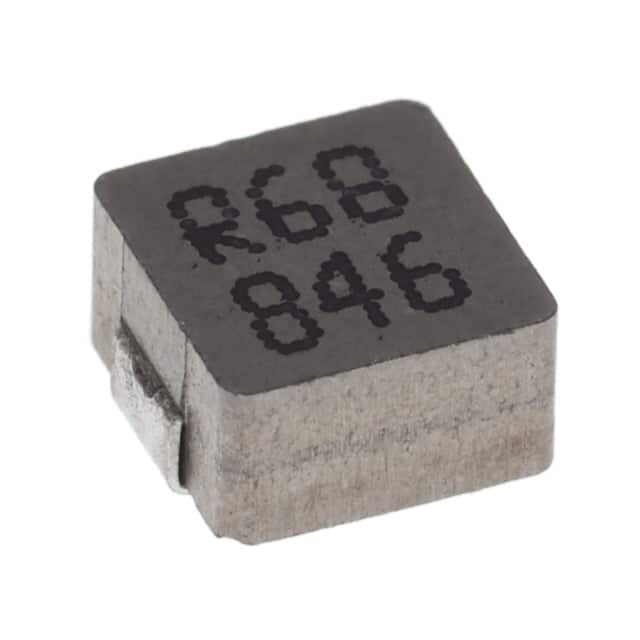

0530CDMCCDS-R68MCFIXED IND 680NH 9.6A 12MOHM SMD Sumida America Components Inc. |
723 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 9.6 A | 14A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

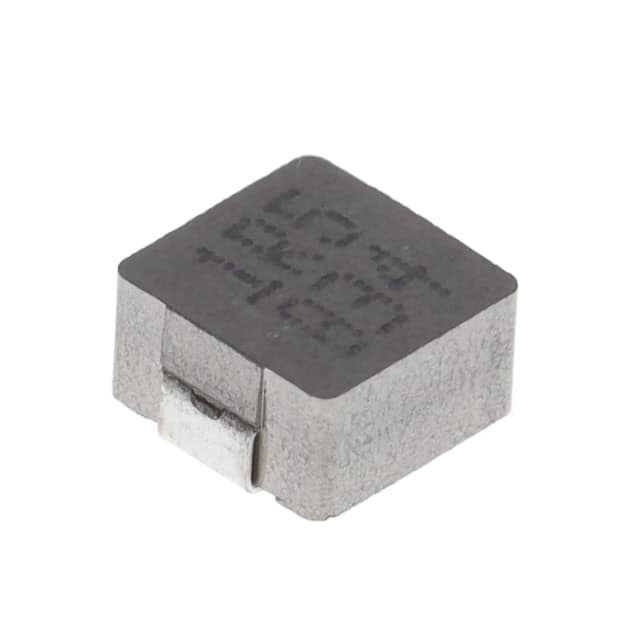

0530CDMCCDS-1R5MCFIXED IND 1.5UH 7.2A 25MOHM SMD Sumida America Components Inc. |
688 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 7.2 A | 13A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
0420CDMCCDS-150MCFIXED IND 15UH 1.4A 352MOHM SMD Sumida America Components Inc. |
325 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 1.4 A | 1.6A | Shielded | 352mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
0420CDMCCDS-R68MCFIXED IND 680NH 8A 18 MOHM SMD Sumida America Components Inc. |
222 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 8 A | 9.6A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

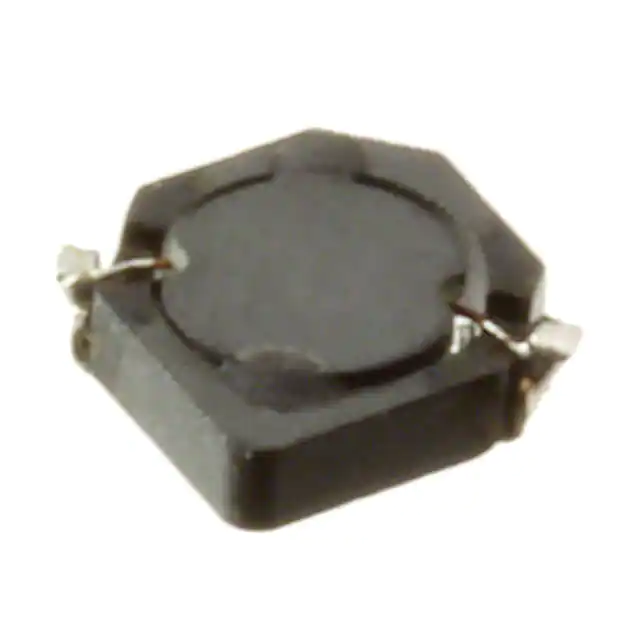

CDRH2D09NP-6R8MCFIXED IND 6.8UH 530MA 340MOHM SM Sumida America Components Inc. |
216 |
|
规格书 |
CDRH2D09 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 6.8 µH | ±25% | 530 mA | 330mA | Shielded | 340mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

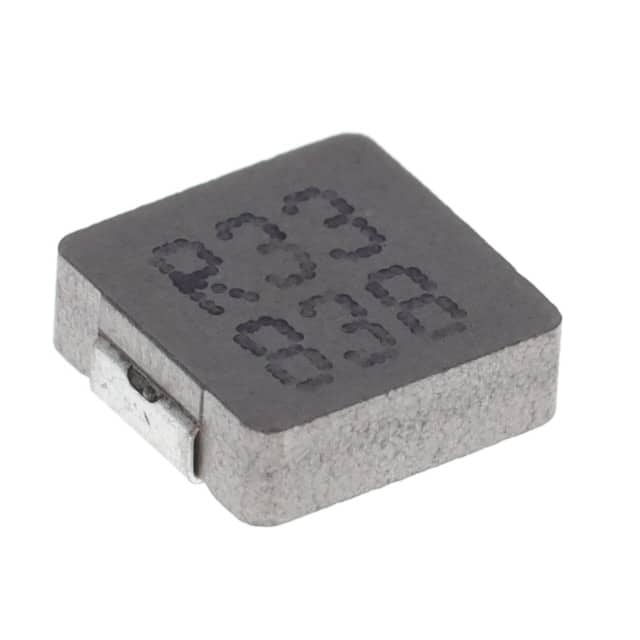

0624CDMCCDS-R33MCFIXED IND 330NH 20.5A 4.1MOHM SM Sumida America Components Inc. |
766 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 20.5 A | 28.5A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
