购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

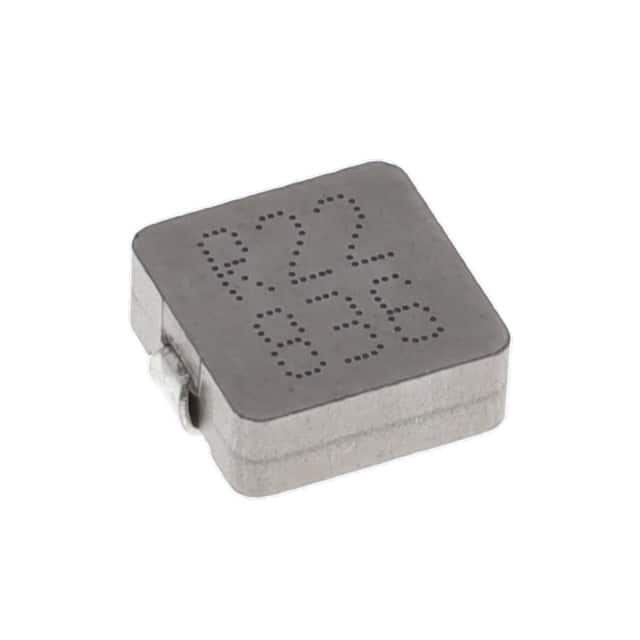

104CDMCCDS-R22MCFIXED IND 220NH 38A 1 MOHM SMD Sumida America Components Inc. |
475 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 38 A | 70A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
104CDMCCDS-R30MCFIXED IND 300NH 35A 1.1MOHM SMD Sumida America Components Inc. |
373 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 300 nH | ±20% | 35 A | 52A | Shielded | 1.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CR75NP-180KCFIXED IND 18UH 1.6A 100 MOHM SMD Sumida America Components Inc. |
3,001 |
|
规格书 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.6 A | - | Unshielded | 100mOhm Max | - | 20MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CDRH8D58/LDNP-5R0NCFIXED IND 5UH 6A 17.5 MOHM SMD Sumida America Components Inc. |
1,142 |
|
规格书 |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5 µH | ±30% | 6 A | 3.8A | Shielded | 17.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
CDRH8D58/LDNP-100NCFIXED IND 10UH 4.5A 25.6MOHM SMD Sumida America Components Inc. |
3,017 |
|
规格书 |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 4.5 A | 2.6A | Shielded | 25.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|

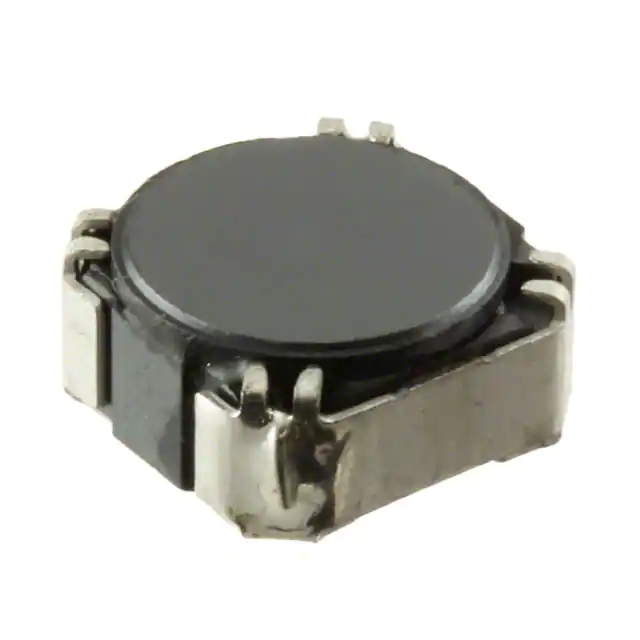

CDRH10D48/ANP-7R2MCFIXED IND 7.2UH 2.9A 29 MOHM SMD Sumida America Components Inc. |
3,983 |
|
规格书 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.2 µH | ±20% | 2.9 A | - | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.177" (4.50mm) |
|
CLS62NP-220NCFIXED IND 22UH 468MA 355MOHM SMD Sumida America Components Inc. |
4,198 |
|
规格书 |
CLS | 4-SMD | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 468 mA | - | Shielded | 355mOhm Max | - | - | - | - | 2.52 MHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.098" (2.50mm) |
|

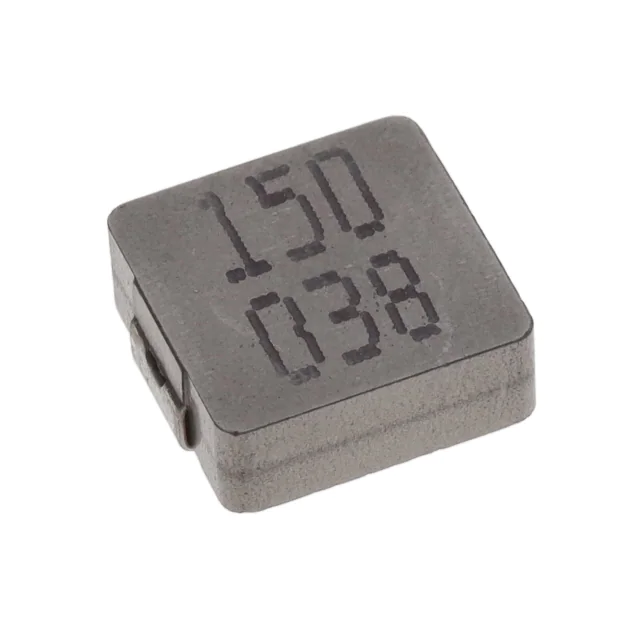

125CDMCCDS-150MCFIXED IND 15UH 8.5A 26 MOHM SMD Sumida America Components Inc. |
4,633 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 8.5 A | 11A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
CDRH60D45BT150NP-150MCFIXED IND 15UH 2A 76.8 MOHM SMD Sumida America Components Inc. |
1,000 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2 A | 2.3A | Shielded | 76.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
CDRH70D45BT150NP-4R7NCFIXED IND 4.7UH 6.2A 14MOHM SMD Sumida America Components Inc. |
4,882 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 6.2 A | 4.2A | Shielded | 14mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
