购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH4D28NP-6R8NCFIXED IND 6.8UH 1.12A 108.9 MOHM Sumida America Components Inc. |
22,354 |
|
规格书 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.12 A | - | Shielded | 108.9mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
CDRH6D38NP-5R0NCFIXED IND 5UH 2.9A 24 MOHM SMD Sumida America Components Inc. |
10,649 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5 µH | ±30% | 2.9 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|

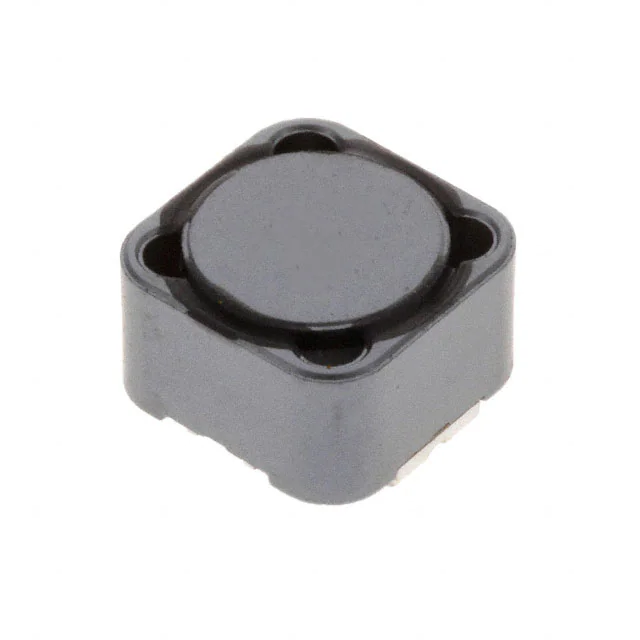

CDRH127L125NP-100MCFIXED IND 10UH 6A 23.6 MOHM SMD Sumida America Components Inc. |
8,954 |
|
规格书 |
CDRH127/L125 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core | Ferrite | 10 µH | ±20% | 6 A | 8.4A | Shielded | 23.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

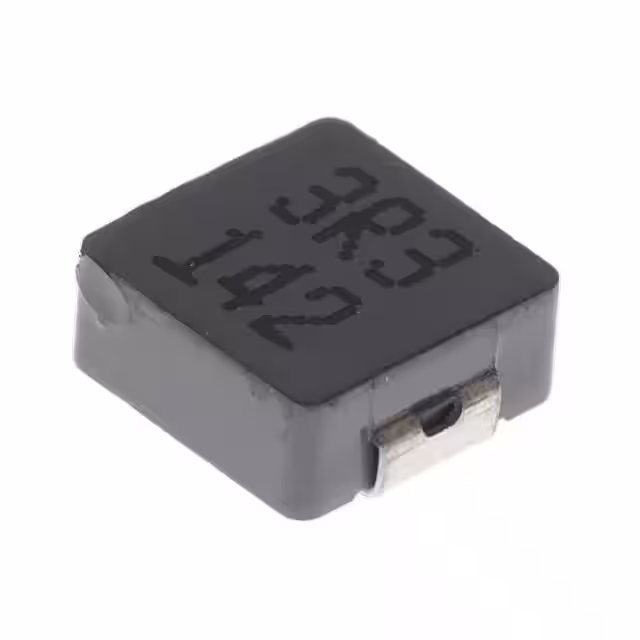

0630CDMCDDS-3R3MCFIXED IND 3.3UH 8.4A 22MOHM SMD Sumida America Components Inc. |
6,925 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.3 A | 11.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH4D28NP-220NCFIXED IND 22UH 700MA 235MOHM SMD Sumida America Components Inc. |
6,171 |
|
规格书 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 700 mA | - | Shielded | 235mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|

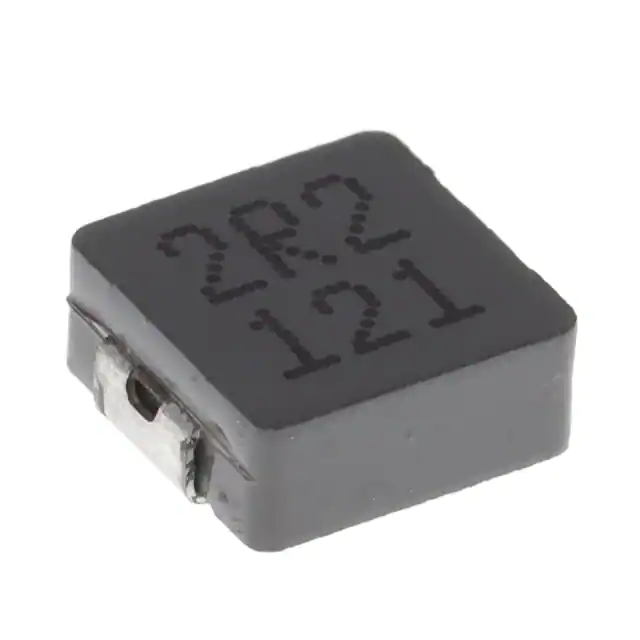

0630CDMCDDS-2R2MCFIXED IND 2.2UH 9.3A 15MOHM SMD Sumida America Components Inc. |
5,039 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 9.2 A | 14.4A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
0630CDMCCDS-R10MCFIXED IND 100NH 40A 1.08MOHM SMD Sumida America Components Inc. |
4,470 |
|
规格书 |
0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 40 A | 61.2A | Shielded | 1.08mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

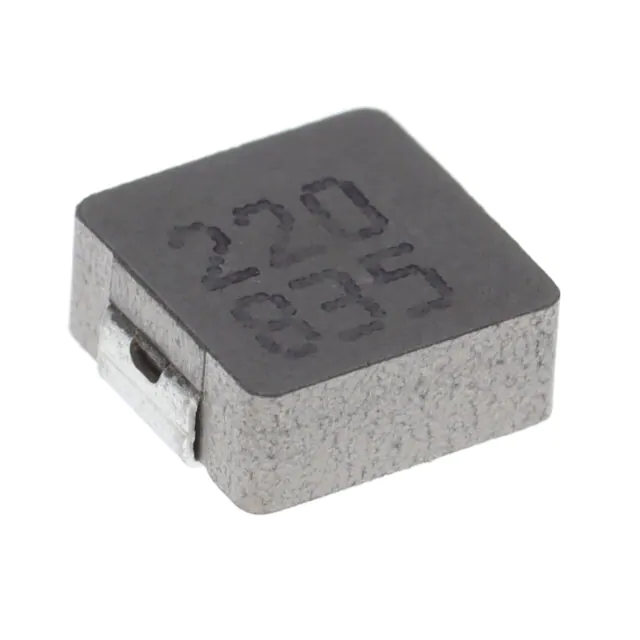

0630CDMCCDS-220MCFIXED IND 22UH 2.3A 200MOHM SMD Sumida America Components Inc. |
3,807 |
|
规格书 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 2.3 A | 4A | Shielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH6D38NP-220NCFIXED IND 22UH 1.3A 96 MOHM SMD Sumida America Components Inc. |
3,661 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.3 A | - | Shielded | 96mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
CDRH6D38NP-3R3NCFIXED IND 3.3UH 3.5A 20 MOHM SMD Sumida America Components Inc. |
5,921 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 3.5 A | - | Shielded | 20mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
