| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

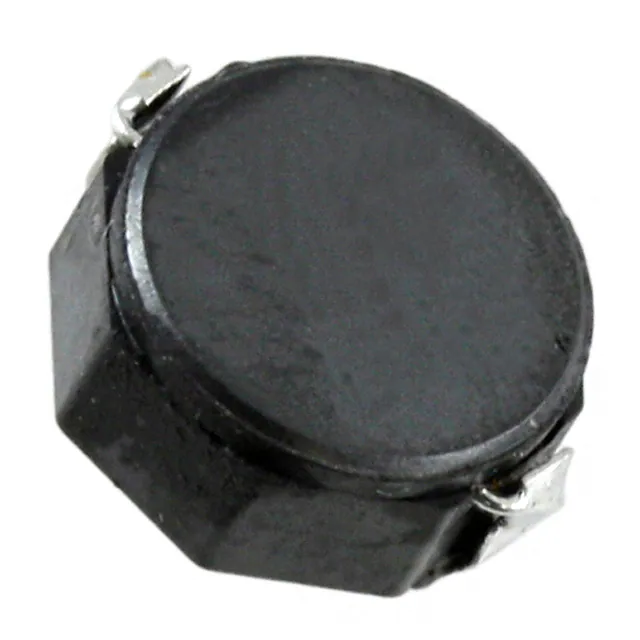

CDRH8D38NP-150NCFIXED IND 15UH 2.5A 67 MOHM SMD Sumida America Components Inc. |
113,774 |
|
规格书 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 2.5 A | 2.75A | Shielded | 67mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38NP-100NCFIXED IND 10UH 3.2A 48 MOHM SMD Sumida America Components Inc. |
5,848 |
|
规格书 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 3.2 A | 3A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CR75NP-100KCFIXED IND 10UH 2.3A 70 MOHM SMD Sumida America Components Inc. |
4,873 |
|
规格书 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | - | Unshielded | 70mOhm Max | - | 28MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CDRH8D38NP-220NCFIXED IND 22UH 2A 105 MOHM SMD Sumida America Components Inc. |
4,587 |
|
规格书 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 2 A | 2.3A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CR75NP-330KCFIXED IND 33UH 1.2A 130 MOHM SMD Sumida America Components Inc. |
4,442 |
|
规格书 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | - | Unshielded | 130mOhm Max | - | 15MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CDRH2D18/LDNP-100NCFIXED IND 10UH 1A 180 MOHM SMD Sumida America Components Inc. |
42,066 |
|
规格书 |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1 A | 430mA | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH74NP-101MC-BFIXED IND 100UH 600MA 610MOHM SM Sumida America Components Inc. |
36,709 |
|
规格书 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 600 mA | - | Shielded | 610mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CDRH2D18/LDNP-4R7NCFIXED IND 4.7UH 1.65A 78MOHM SMD Sumida America Components Inc. |
17,461 |
|
规格书 |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.65 A | 630mA | Shielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CDRH74NP-680MC-BFIXED IND 68UH 690MA 380MOHM SMD Sumida America Components Inc. |
10,517 |
|
规格书 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 690 mA | - | Shielded | 380mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

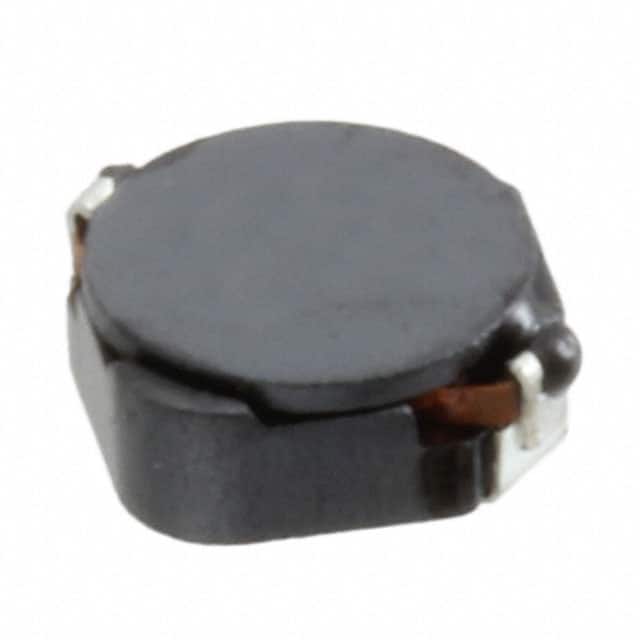

CDRH4D16FB/NP-100MCFIXED IND 10UH 1.2A 118 MOHM SMD Sumida America Components Inc. |
7,261 |
|
规格书 |
CDRH4D16FB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.2 A | 800mA | Shielded | 118mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
