购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDPH4D19FNP-6R8MCFIXED IND 6.8UH 3.02A 50MOHM SMD Sumida America Components Inc. |
4,347 |
|
规格书 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 3.02 A | 1A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
0830CDMCCDS-4R7MCFIXED IND 4.7UH 6.5A 31 MOHM SMD Sumida America Components Inc. |
14,412 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 6.5 A | 8.6A | Shielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|

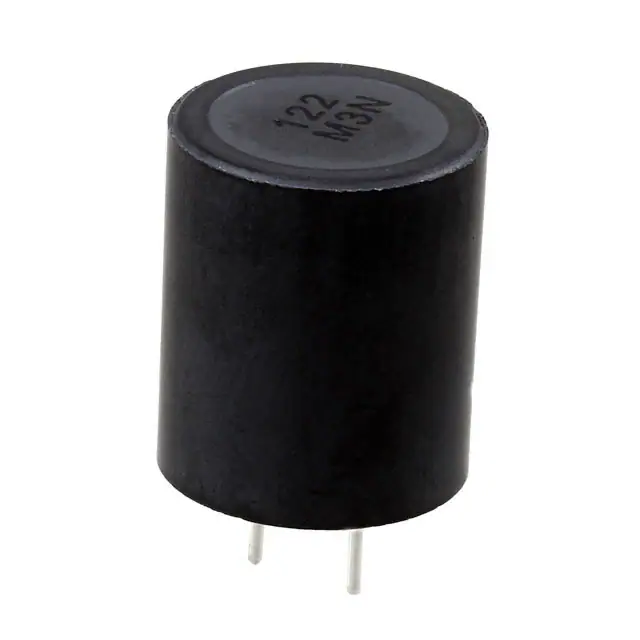

RCP1317NP-122LFIXED IND 1.2MH 740MA 1.28OHM TH Sumida America Components Inc. |
1,465 |
|
规格书 |
RCP1317 | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 1.2 mH | ±15% | 740 mA | 800mA | Shielded | 1.28Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.531" Dia (13.50mm) | 0.689" (17.50mm) |
|

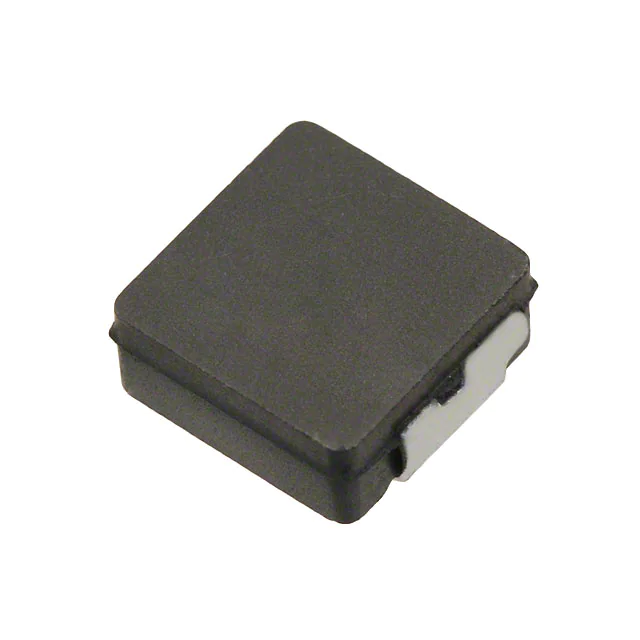

CDMC6D28NP-4R7MCFIXED IND 4.7UH 3.7A 46.4MOHM SM Sumida America Components Inc. |
37,103 |
|
规格书 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 3.7 A | 4.3A | Shielded | 46.4mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.118" (3.00mm) |
|

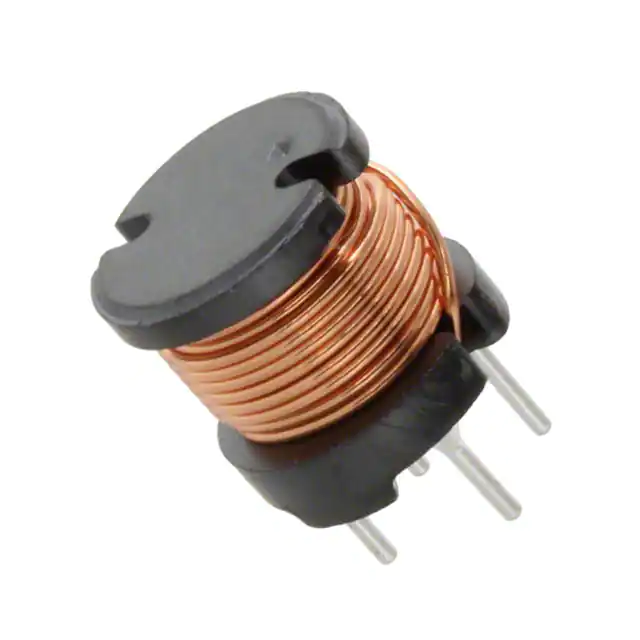

RCH110NP-101KFIXED IND 100UH 1.7A 160 MOHM TH Sumida America Components Inc. |
5,587 |
|
规格书 |
RCH-110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.7 A | - | Unshielded | 160mOhm Max | - | 5.7MHz | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
CDMC6D28NP-1R0MCFIXED IND 1UH 9.5A 8.8 MOHM SMD Sumida America Components Inc. |
3,796 |
|
规格书 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | 1 µH | ±20% | 9.5 A | 8.8A | Shielded | 8.8mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.118" (3.00mm) |
|

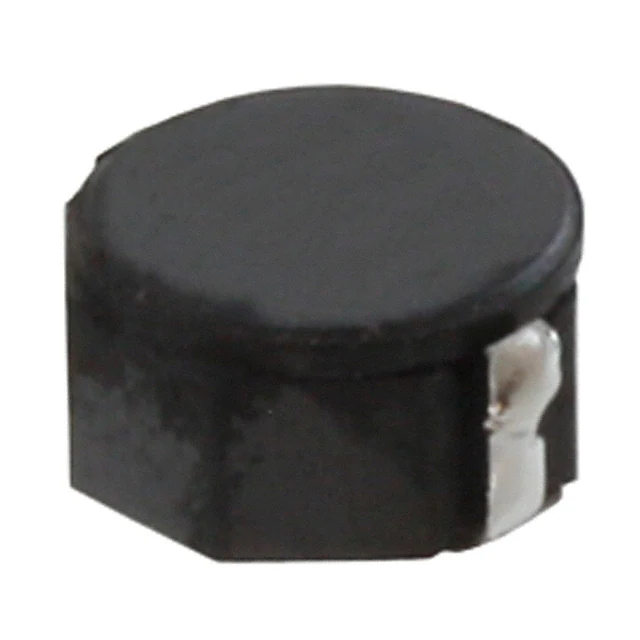

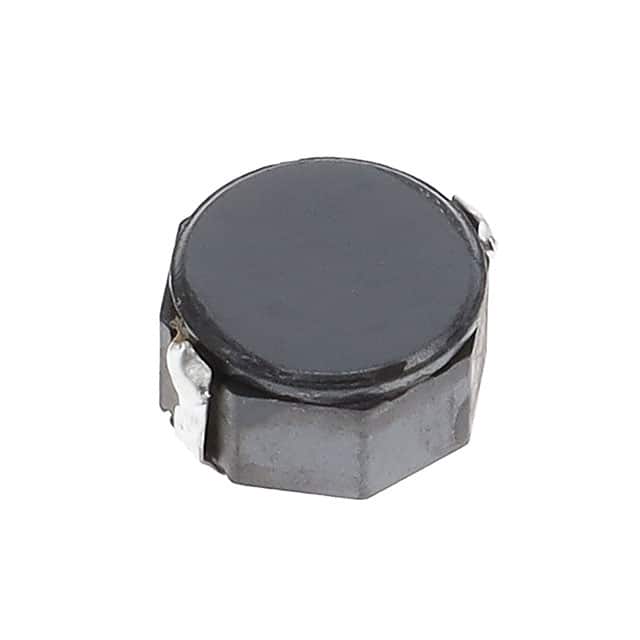

CDRH8D43NP-4R7NCFIXED IND 4.7UH 4.1A 22 MOHM SMD Sumida America Components Inc. |
584 |
|
规格书 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.6A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
CDRH8D43NP-330NCFIXED IND 33UH 1.4A 125 MOHM SMD Sumida America Components Inc. |
2,865 |
|
规格书 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.4 A | 2.2A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
CDRH104RNP-151NCFIXED IND 150UH 1.15A 506MOHM SM Sumida America Components Inc. |
6,783 |
|
规格书 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±30% | 1.15 A | 1.12A | Shielded | 506mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH3D16NP-100NCFIXED IND 10UH 550MA 210MOHM SMD Sumida America Components Inc. |
28,997 |
|
规格书 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 550 mA | - | Shielded | 210mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
