购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDR7D28MNNP-6R8NCFIXED IND 6.8UH 2.75A 46.3 MOHM Sumida America Components Inc. |
22,587 |
|
规格书 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±25% | 2.75 A | 2.9A | Shielded | 46.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|

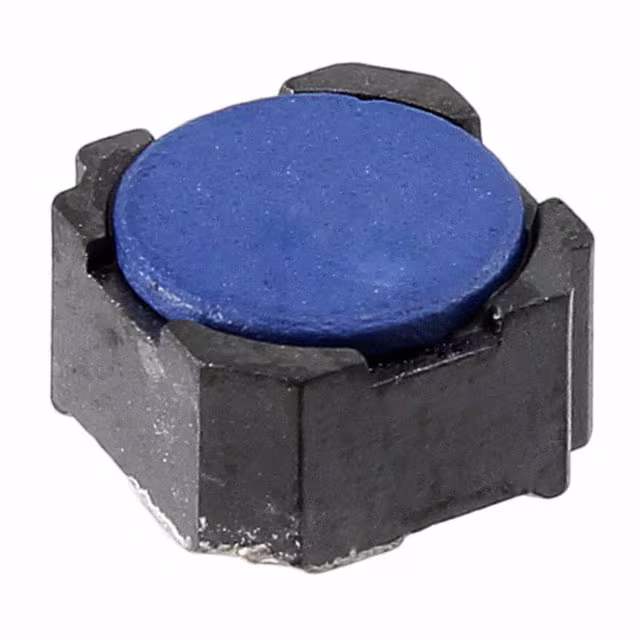

CDR7D43MNNP-330NCFIXED IND 33UH 1.15A 160MOHM SMD Sumida America Components Inc. |
3,368 |
|
规格书 |
CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±25% | 1.15 A | 2.3A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRH125NP-331MCFIXED IND 330UH 680MA 510MOHM SM Sumida America Components Inc. |
36,621 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 680 mA | - | Shielded | 510mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

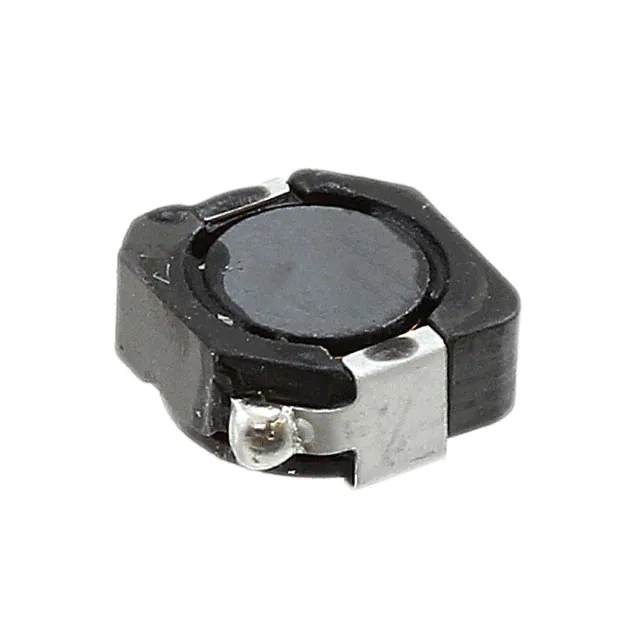

CDRH5D28RHPNP-4R7NCFIXED IND 4.7UH 2.8A 43.1MOHM SM Sumida America Components Inc. |
18,285 |
|
规格书 |
CDRH5D28R/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 2.8 A | 3.7A | Shielded | 43.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
CDRH127/LDNP-101MCFIXED IND 100UH 2.1A 151MOHM SMD Sumida America Components Inc. |
14,785 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 2.1 A | - | Shielded | 151mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH125NP-150MCFIXED IND 15UH 3.3A 30 MOHM SMD Sumida America Components Inc. |
14,250 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.3 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125NP-121MCFIXED IND 120UH 1.1A 170MOHM SMD Sumida America Components Inc. |
6,211 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 1.1 A | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH127/LDNP-560MCFIXED IND 56UH 2.9A 90 MOHM SMD Sumida America Components Inc. |
5,125 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 2.9 A | - | Shielded | 90mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH125NP-330MCFIXED IND 33UH 2.1A 57 MOHM SMD Sumida America Components Inc. |
1,619 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.1 A | - | Shielded | 57mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH127/LDNP-102MCFIXED IND 1MH 700MA 1.5 OHM SMD Sumida America Components Inc. |
1,327 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 700 mA | - | Shielded | 1.5Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
