购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

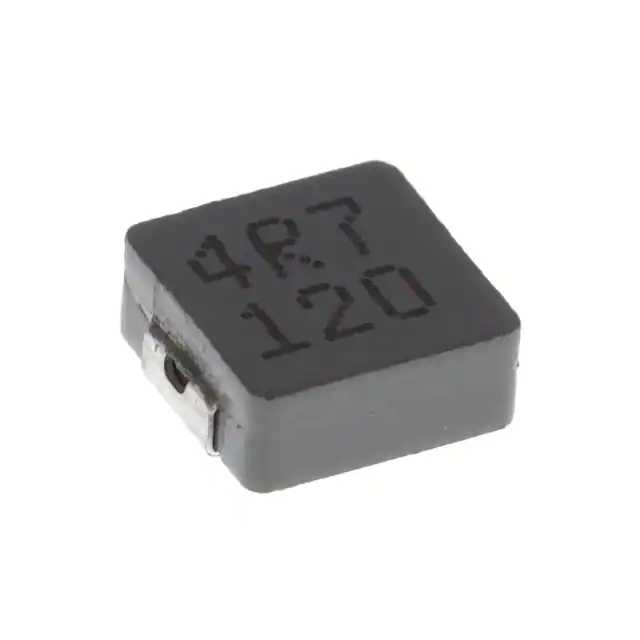

0630CDMCDDS-4R7MCFIXED IND 4.7UH 6.3A 33MOHM SMD Sumida America Components Inc. |
1,965 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 10.5A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

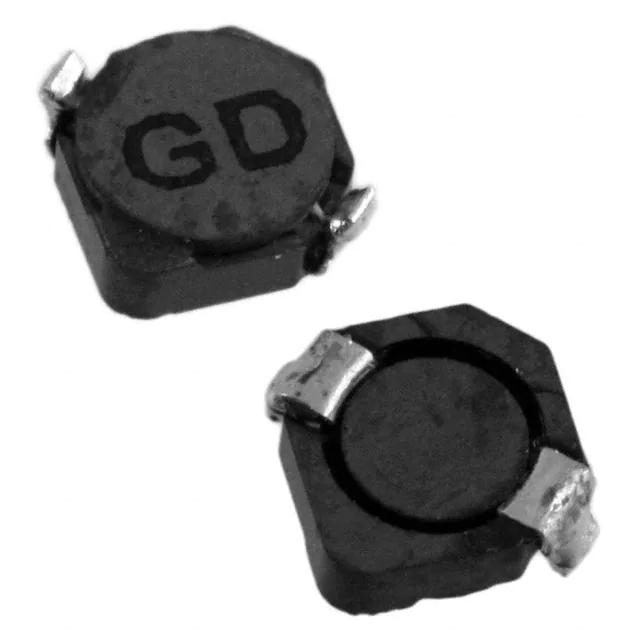

CDRH2D11NP-4R7NCFIXED IND 4.7UH 880MA 170MOHM SM Sumida America Components Inc. |
38,850 |
|
规格书 |
CDRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 880 mA | 500mA | Shielded | 170mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|

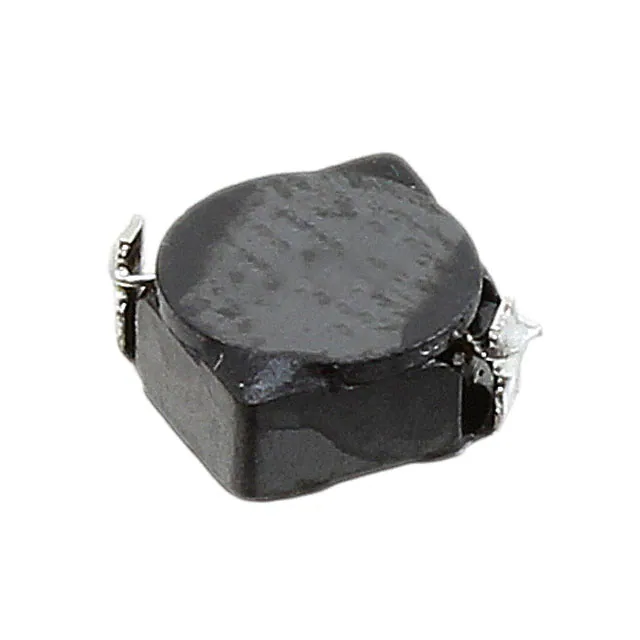

CDRH4D22HPNP-100MCFIXED IND 10UH 1.3A 143.8MOHM SM Sumida America Components Inc. |
12,032 |
|
规格书 |
CDRH4D22/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.3 A | 1.5A | Shielded | 143.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.094" (2.40mm) |
|

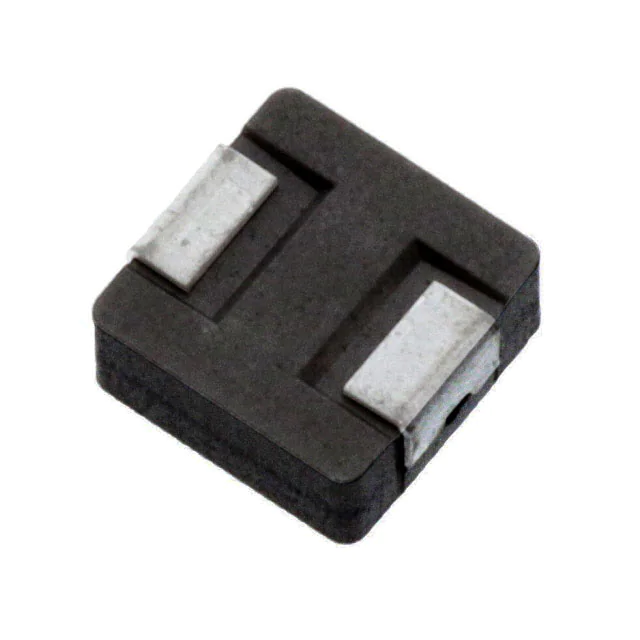

0640CDMCCDS-2R2MCFIXED IND 2.2UH 12A 10.8MOHM SMD Sumida America Components Inc. |
8,020 |
|
规格书 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 12 A | 9.4A | Shielded | 10.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|
|
0640CDMCCDS-220MCFIXED IND 220NH 3.3A 133MOHM SMD Sumida America Components Inc. |
4,474 |
|
规格书 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 3.3 A | 3.2A | Shielded | 133mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|
|
0640CDMCCDS-150MCFIXED IND 15UH 3.8A 89 MOHM SMD Sumida America Components Inc. |
26,008 |
|
规格书 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 3.8 A | 3.9A | Shielded | 89mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|
CDRH3D23NP-4R7PCFIXED IND 4.7UH 1.9A 68.8MOHM SM Sumida America Components Inc. |
222,312 |
|
规格书 |
CDRH3D23 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 1.9 A | 1.3A | Shielded | 68.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.098" (2.50mm) |
|

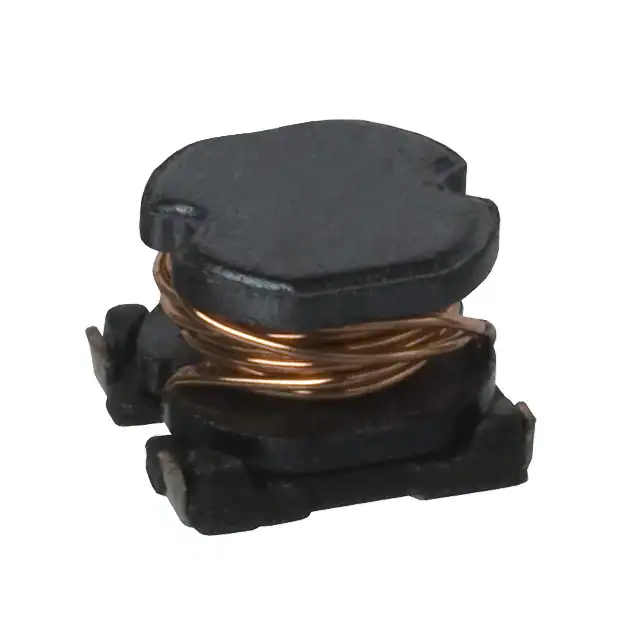

CR43NP-100MCFIXED IND 10UH 1.04A 182MOHM SMD Sumida America Components Inc. |
35,773 |
|
规格书 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.04 A | - | Unshielded | 182mOhm Max | - | 34.8MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CDRH3D23NP-1R0PCFIXED IND 1UH 3.1A 25 MOHM SMD Sumida America Components Inc. |
12,446 |
|
规格书 |
CDRH3D23 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±25% | 3.1 A | 2.8A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.098" (2.50mm) |
|
CD54NP-220MCFIXED IND 22UH 1.11A 180MOHM SMD Sumida America Components Inc. |
11,411 |
|
规格书 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
