购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH2D18/HPNP-150NCFIXED IND 15UH 640MA 345MOHM SMD Sumida America Components Inc. |
6,245 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 640 mA | 700mA | Shielded | 345mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|

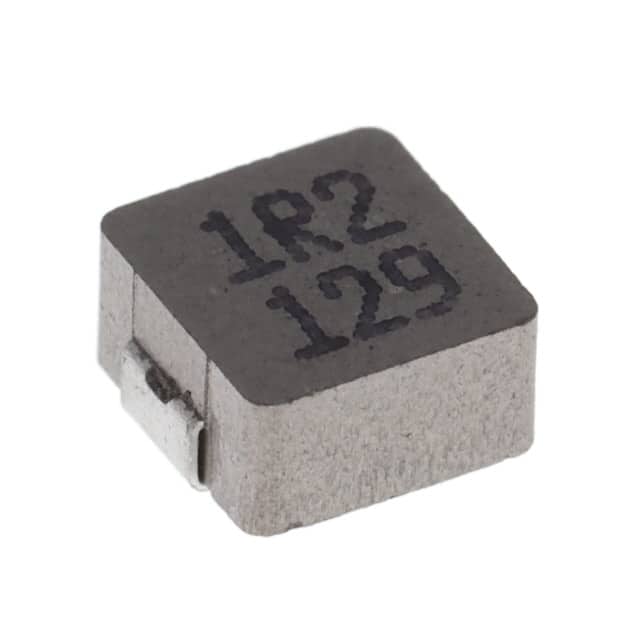

0530CDMCCDS-1R2MCFIXED IND 1.2UH 8.7A 16MOHM SMD Sumida America Components Inc. |
4,538 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.2 µH | ±20% | 8.7 A | 13.5A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

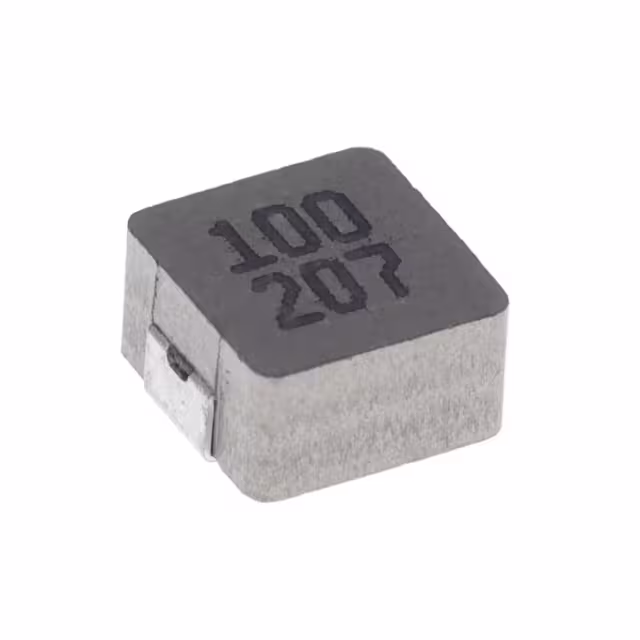

0530CDMCCDS-100MCFIXED IND 10UH 2.8A 125MOHM SMD Sumida America Components Inc. |
3,884 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 2.8 A | 4A | Shielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
0420CDMCCDS-220MCFIXED IND 22UH 1.2A 363MOHM SMD Sumida America Components Inc. |
3,446 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 1.2 A | 1.4A | Shielded | 363mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

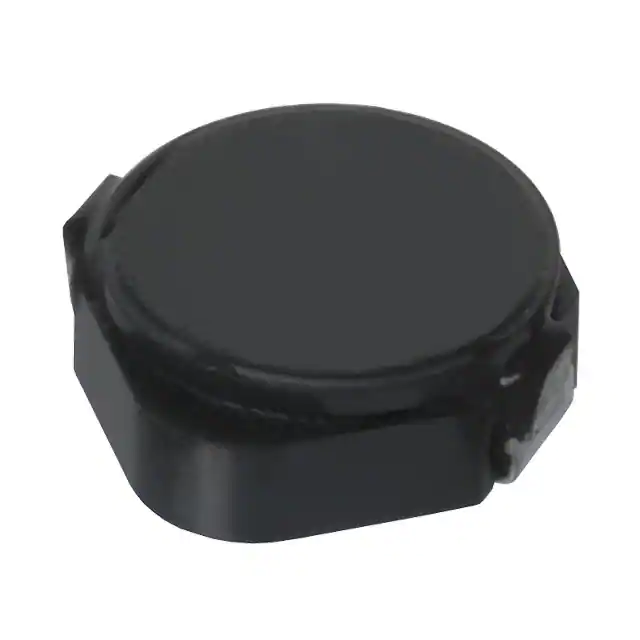

CDPH4D19FNP-220MCFIXED IND 22UH 1.44A 135MOHM SMD Sumida America Components Inc. |
60,892 |
|
规格书 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.44 A | 540mA | Shielded | 135mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
CDPH4D19FNP-330MCFIXED IND 33UH 1.25A 200MOHM SMD Sumida America Components Inc. |
48,201 |
|
规格书 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.25 A | 430mA | Shielded | 200mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
CDRH6D28NP-3R9NCFIXED IND 3.9UH 2.6A 27 MOHM SMD Sumida America Components Inc. |
149,891 |
|
规格书 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±30% | 2.6 A | - | Shielded | 27mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CDRH6D28NP-330NCFIXED IND 33UH 970MA 165MOHM SMD Sumida America Components Inc. |
79,006 |
|
规格书 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 970 mA | - | Shielded | 165mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CDRH6D28NP-470NCFIXED IND 47UH 800MA 238MOHM SMD Sumida America Components Inc. |
25,917 |
|
规格书 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 800 mA | - | Shielded | 238mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
0624CDMCCDS-100MCFIXED IND 10UH 3.1A 101MOHM SMD Sumida America Components Inc. |
3,863 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 3.1 A | 5.5A | Shielded | 101mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
