购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

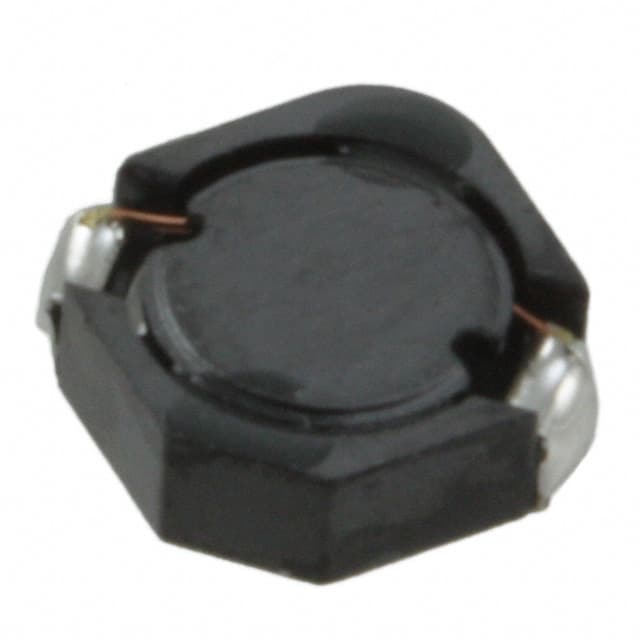

CDRH4D18CNP-100PCFIXED IND 10UH 830MA 156MOHM SMD Sumida America Components Inc. |
7,303 |
|
规格书 |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 830 mA | - | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|

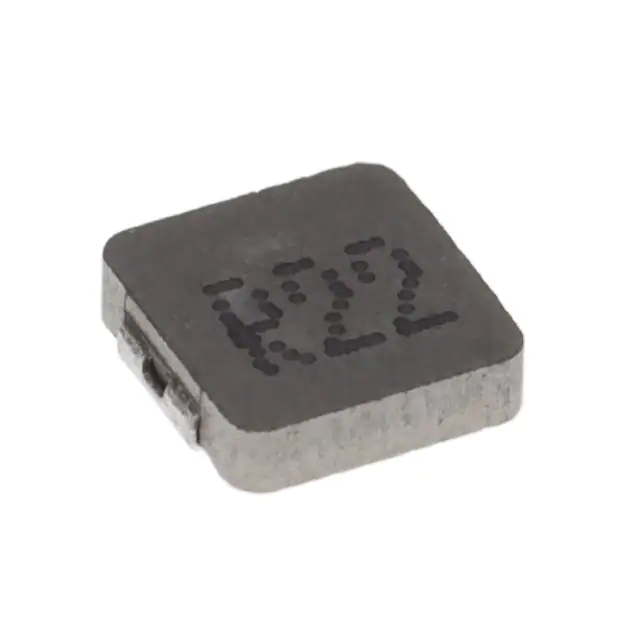

0412CDMCCDS-R22MCFIXED IND 220NH 9A 11 MOHM SMD Sumida America Components Inc. |
83,050 |
|
规格书 |
0412CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 9 A | 12A | Shielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
104CDMCCDS-8R2MCFIXED IND 8.2UH 8.3A 27MOHM SMD Sumida America Components Inc. |
7,771 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 8.3 A | 12A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
104CDMCCDS-2R2MCFIXED IND 2.2UH 15A 7 MOHM SMD Sumida America Components Inc. |
6,125 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 15 A | 21A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

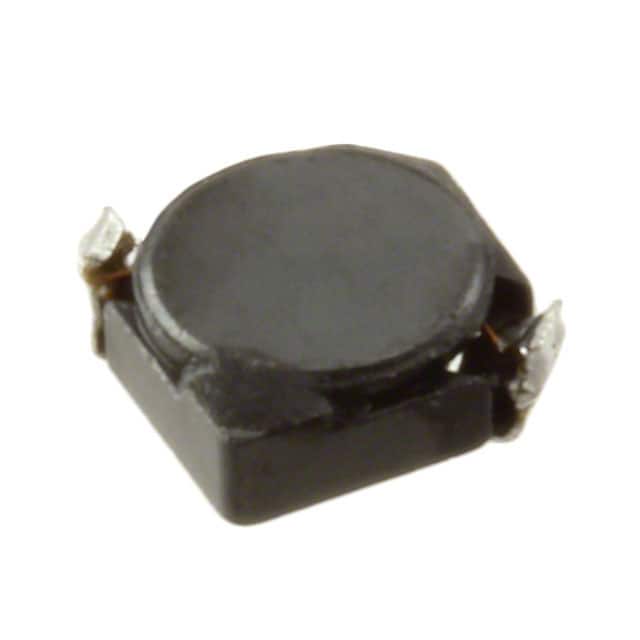

CDRH3D14/HPNP-100NCFIXED IND 10UH 670MA 440MOHM SMD Sumida America Components Inc. |
7,713 |
|
规格书 |
CDRH3D14/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 670 mA | 1A | Shielded | 440mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
0420CDMCCDS-R33MCFIXED IND 330NH 10.5A 10.5 MOHM Sumida America Components Inc. |
111,518 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 10.5 A | 12A | Shielded | 10.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

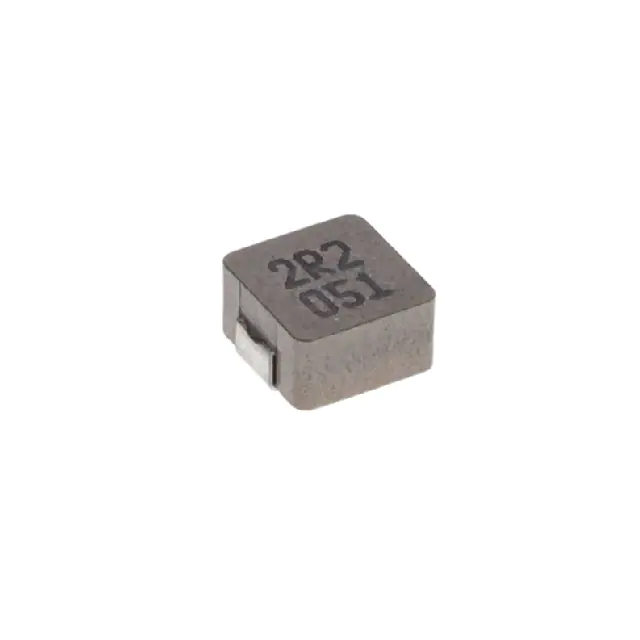

0530CDMCCDS-2R2MCFIXED IND 2.2UH 5.8A 29MOHM SMD Sumida America Components Inc. |
107,281 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 5.8 A | 9A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
0420CDMCCDS-R22MCFIXED IND 220NH 12A 6.6 MOHM Sumida America Components Inc. |
16,592 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 12 A | 18A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

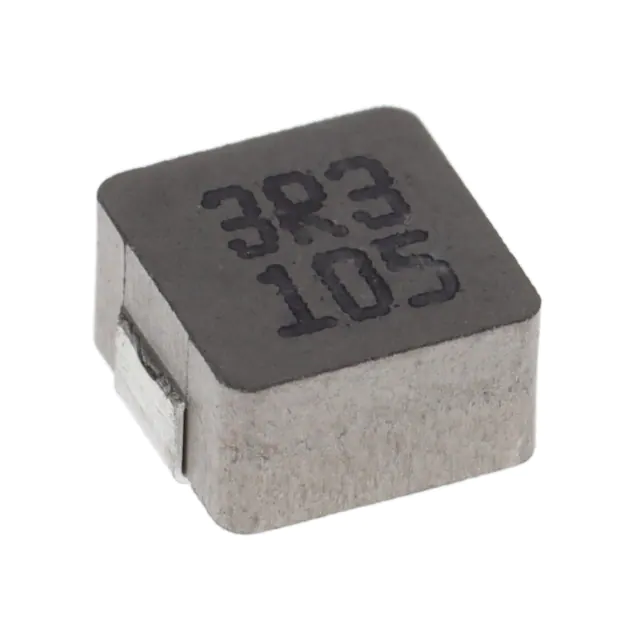

0530CDMCCDS-3R3MCFIXED IND 3.3UH 5.1A 38MOHM SMD Sumida America Components Inc. |
11,090 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 5.1 A | 8A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
0420CDMCCDS-2R2MCFIXED IND 2.2UH 4.3A 58MOHM SMD Sumida America Components Inc. |
8,294 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 4.3 A | 6.3A | Shielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
