购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

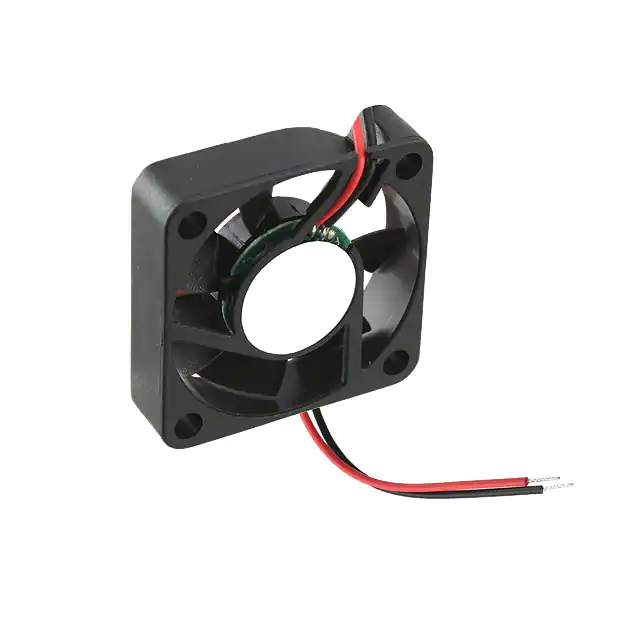

FAD1-04010DSAW11FAN AXIAL 40X10MM 24VDC WIRE |
2,611 |
|
规格书 |
FAD1-04010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.044 in H2O (11.0 Pa) | Sleeve | Tubeaxial | - | 14.0dB(A) | 480 mW | 3300 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|
|
FAD1-04010DSJW11FAN AXIAL 40X10MM 24VDC WIRE |
2,140 |
|
规格书 |
FAD1-04010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 1.92 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|
FAD1-06025BSLW12FAN AXIAL 60X25MM 5VDC WIRE |
1,870 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Sleeve | Tubeaxial | - | 18.1dB(A) | 400 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025BSMW12FAN AXIAL 60X25MM 5VDC WIRE |
1,930 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Sleeve | Tubeaxial | - | 27.9dB(A) | 850 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025BSHW12FAN AXIAL 60X25MM 5VDC WIRE |
3,040 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Sleeve | Tubeaxial | - | 36.3dB(A) | 1.75 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CSLW12FAN AXIAL 60X25MM 12VDC WIRE |
4,411 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Sleeve | Tubeaxial | - | 18.1dB(A) | 480 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CSMW12FAN AXIAL 60X25MM 12VDC WIRE |
3,936 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Sleeve | Tubeaxial | - | 27.9dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CSHW12FAN AXIAL 60X25MM 12VDC WIRE |
1,448 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Sleeve | Tubeaxial | - | 36.3dB(A) | 1.56 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CSJW12FAN AXIAL 60X25MM 12VDC WIRE |
2,431 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.9 CFM (0.781m³/min) | 0.242 in H2O (60.3 Pa) | Sleeve | Tubeaxial | - | 37.6dB(A) | 2.52 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DSLW12FAN AXIAL 60X25MM 24VDC WIRE |
2,811 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Sleeve | Tubeaxial | - | 18.1dB(A) | 1.68 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DSMW12FAN AXIAL 60X25MM 24VDC WIRE |
1,761 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Sleeve | Tubeaxial | - | 27.9dB(A) | 1.44 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DSHW12FAN AXIAL 60X25MM 24VDC WIRE |
3,376 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Sleeve | Tubeaxial | - | 36.3dB(A) | 2.88 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DSJW12FAN AXIAL 60X25MM 24VDC WIRE |
2,596 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.9 CFM (0.781m³/min) | 0.242 in H2O (60.3 Pa) | Sleeve | Tubeaxial | - | 37.6dB(A) | 2.4 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
FAD1-08015DSMW12FAN AXIAL 80X15MM 24VDC WIRE |
1,851 |
|
规格书 |
FAD1-08015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Sleeve | Tubeaxial | - | 24.9dB(A) | 960 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
FAD1-08025CSAW11FAN AXIAL 80X25MM 12VDC WIRE |
4,469 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 20.6 CFM (0.577m³/min) | 0.043 in H2O (10.7 Pa) | Sleeve | Tubeaxial | - | 16.5dB(A) | 600 mW | 1600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CSLW11FAN AXIAL 80X25MM 12VDC WIRE |
3,793 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.072 in H2O (17.9 Pa) | Sleeve | Tubeaxial | - | 22.3dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CSMW11FAN AXIAL 80X25MM 12VDC WIRE |
4,557 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.4 CFM (0.907m³/min) | 0.102 in H2O (25.5 Pa) | Sleeve | Tubeaxial | - | 29.4dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CSHW11FAN AXIAL 80X25MM 12VDC WIRE |
2,405 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.142 in H2O (35.4 Pa) | Sleeve | Tubeaxial | - | 35.2dB(A) | 2.52 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CSJW11FAN AXIAL 80X25MM 12VDC WIRE |
1,358 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | Tubeaxial | - | 37.4dB(A) | 2.76 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DSLW11FAN AXIAL 80X25MM 24VDC WIRE |
2,574 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.072 in H2O (17.9 Pa) | Sleeve | Tubeaxial | - | 22.3dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
