购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUB1212MFAN AXIAL 120X25.4MM 12VDC WIRE |
2,964 |
|
规格书 |
AUB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 35.5dB(A) | 2.16 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

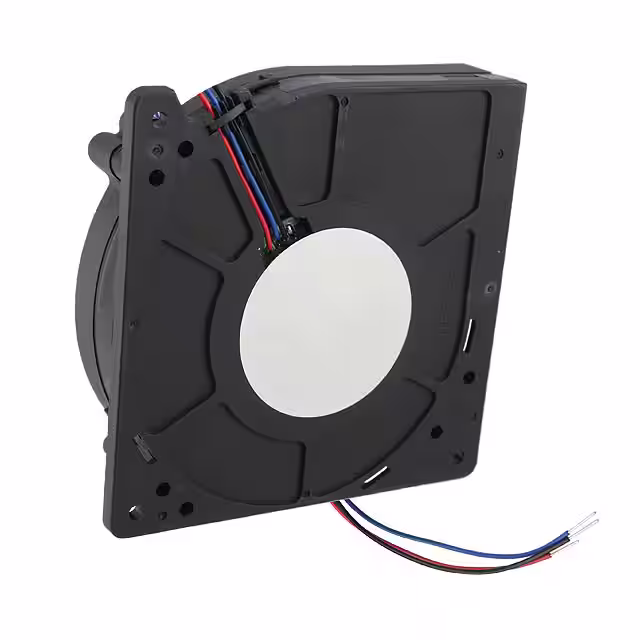

BFB1248GH-AF00FAN BLOWER 120X32MM 48VDC WIRE |
4,645 |
|
规格书 |
BFB | Bulk | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 38.4 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
BFB1248HH-R00FAN BLOWER 120X32MM 48VDC WIRE |
1,334 |
|
规格书 |
BFB | Bulk | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 35.3 CFM (0.988m³/min) | 0.984 in H2O (245.1 Pa) | Ball | Blower | Locked Rotor Sensor | 54.0dB(A) | 10.56 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
EFB0405HHDFAN AXIAL 40X20MM BALL 5VDC WIRE |
3,736 |
|
规格书 |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.5dB(A) | 1.5 W | 8200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
EFB1548VHGFAN AXIAL 172X50.8MM 48VDC WIRE |
1,680 |
|
规格书 |
EFB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 23.52 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|

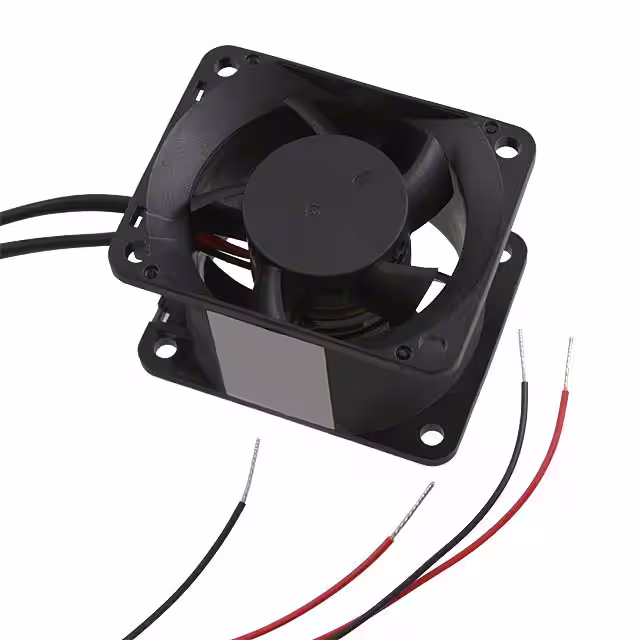

GFB0412HFFAN AXIAL DUAL 40X32MM 12VDC |
4,189 |
|
规格书 |
GFB | Bulk | Obsolete | 12VDC | Rectangular - 40mm L x 50mm H | 32.00mm | 13.1 CFM (0.367m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial (Dual) | - | 41.0dB(A) | 1.68 W | 6500 Front, 6200 Rear | 2 Wire Leads per Fan | - | - | CE, CSA, UL, VDE | 0.101 lb (45.81 g) |
|
PFB0848GHEFAN AXIAL 80X38MM 48VDC WIRE |
2,908 |
|
规格书 |
PFB | Bulk | Obsolete | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 86.4 CFM (2.42m³/min) | 0.898 in H2O (223.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.5dB(A) | 12.96 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
FAD1-06025BBLW12FAN AXIAL 60X25MM BALL 5VDC WIRE |
4,972 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Ball | Tubeaxial | - | 18.1dB(A) | 400 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025BBHW12FAN AXIAL 60X25MM BALL 5VDC WIRE |
3,139 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Ball | Tubeaxial | - | 36.3dB(A) | 1.75 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CBLW12FAN AXIAL 60X25MM 12VDC WIRE |
3,778 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Ball | Tubeaxial | - | 18.1dB(A) | 480 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CBMW12FAN AXIAL 60X25MM 12VDC WIRE |
4,475 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | - | 27.9dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CBHW12FAN AXIAL 60X25MM 12VDC WIRE |
2,039 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Ball | Tubeaxial | - | 36.3dB(A) | 1.56 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
FAD1-08025CBLW11FAN AXIAL 80X25MM 12VDC WIRE |
3,773 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | - | 22.3dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBMW11FAN AXIAL 80X25MM 12VDC WIRE |
3,746 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.4 CFM (0.907m³/min) | 0.102 in H2O (25.5 Pa) | Ball | Tubeaxial | - | 29.4dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBHW11FAN AXIAL 80X25MM 12VDC WIRE |
2,411 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | - | 35.2dB(A) | 2.52 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|

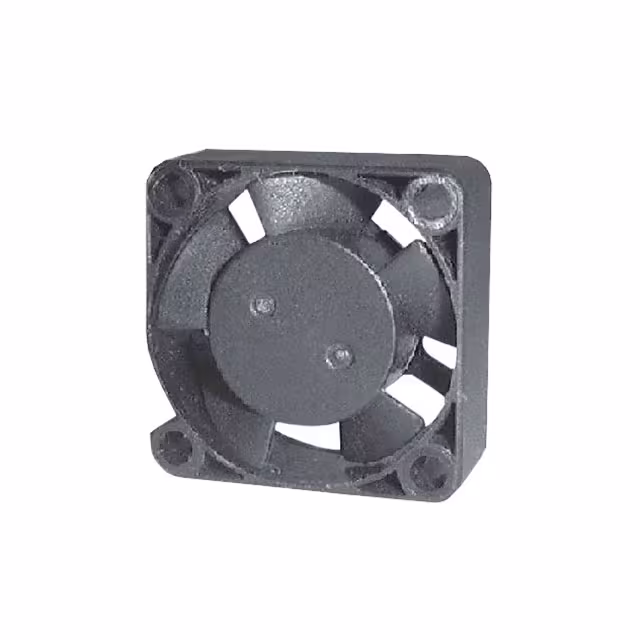

FAD1-02510BBLW11FAN AXIAL 25X10MM BALL 5VDC WIRE |
3,819 |
|
规格书 |
FAD1-02510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 18.3dB(A) | 400 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-02510CBAW11FAN AXIAL 25X10MM 12VDC WIRE |
2,860 |
|
规格书 |
FAD1-02510 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.065 in H2O (16.2 Pa) | Ball | Tubeaxial | - | 12.5dB(A) | 480 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
FAD1-03010BBAW11FAN AXIAL 30X10MM BALL 5VDC WIRE |
1,846 |
|
规格书 |
FAD1-03010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 2.2 CFM (0.061m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 225 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010BBHW11FAN AXIAL 30X10MM BALL 5VDC WIRE |
3,649 |
|
规格书 |
FAD1-03010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.0 CFM (0.112m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 475 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010CBAW11FAN AXIAL 30X10MM 12VDC WIRE |
3,707 |
|
规格书 |
FAD1-03010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.2 CFM (0.061m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 420 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
