购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-08015CBLW12FAN AXIAL 80X15MM 12VDC WIRE |
3,497 |
|
规格书 |
FAD1-08015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.052 in H2O (12.9 Pa) | Ball | Tubeaxial | - | 18.8dB(A) | 360 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015DBHW12FAN AXIAL 80X15MM 24VDC WIRE |
2,487 |
|
规格书 |
FAD1-08015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 29.7 CFM (0.832m³/min) | 0.122 in H2O (30.4 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 1.92 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015DBMW12FAN AXIAL 80X15MM 24VDC WIRE |
4,943 |
|
规格书 |
FAD1-08015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | - | 24.9dB(A) | 960 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
FAD1-08025CBAW11FAN AXIAL 80X25MM 12VDC WIRE |
4,253 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 20.6 CFM (0.577m³/min) | 0.043 in H2O (10.7 Pa) | Ball | Tubeaxial | - | 16.5dB(A) | 600 mW | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBJW11FAN AXIAL 80X25MM 12VDC WIRE |
1,437 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | - | 37.4dB(A) | 2.76 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DBLW11FAN AXIAL 80X25MM 24VDC WIRE |
1,428 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | - | 22.3dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DBMW11FAN AXIAL 80X25MM 24VDC WIRE |
1,828 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 32.4 CFM (0.907m³/min) | 0.102 in H2O (25.5 Pa) | Ball | Tubeaxial | - | 29.4dB(A) | 1.68 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DBHW11FAN AXIAL 80X25MM 24VDC WIRE |
3,858 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | - | 35.2dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBAW12FAN AXIAL 80X25MM 12VDC WIRE |
4,806 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 21.6 CFM (0.605m³/min) | 0.046 in H2O (11.4 Pa) | Ball | Tubeaxial | - | 14.0dB(A) | 480 mW | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.19 lb (86.18 g) |
|
|
FAD1-08025CBLW12FAN AXIAL 80X25MM 12VDC WIRE |
3,455 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 26.8 CFM (0.750m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | - | 21.6dB(A) | 720 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBMW12FAN AXIAL 80X25MM 12VDC WIRE |
1,858 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.4 CFM (0.935m³/min) | 0.117 in H2O (29.1 Pa) | Ball | Tubeaxial | - | 28.3dB(A) | 1.08 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBHW12FAN AXIAL 80X25MM 12VDC WIRE |
1,924 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.3 CFM (1.13m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 33.4dB(A) | 1.92 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBJW12FAN AXIAL 80X25MM 12VDC WIRE |
3,048 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 52.5 CFM (1.47m³/min) | 0.265 in H2O (66.0 Pa) | Ball | Tubeaxial | - | 40.8dB(A) | 3.6 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CBKW12FAN AXIAL 80X25MM 12VDC WIRE |
4,470 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 56.8 CFM (1.59m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | - | 43.4dB(A) | 3.96 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DBMW12FAN AXIAL 80X25MM 24VDC WIRE |
4,204 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.4 CFM (0.935m³/min) | 0.117 in H2O (29.1 Pa) | Ball | Tubeaxial | - | 28.3dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DBHW12FAN AXIAL 80X25MM 24VDC WIRE |
2,610 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.3 CFM (1.13m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 33.4dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DBJW12FAN AXIAL 80X25MM 24VDC WIRE |
3,440 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 52.5 CFM (1.47m³/min) | 0.265 in H2O (66.0 Pa) | Ball | Tubeaxial | - | 40.8dB(A) | 3.6 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|

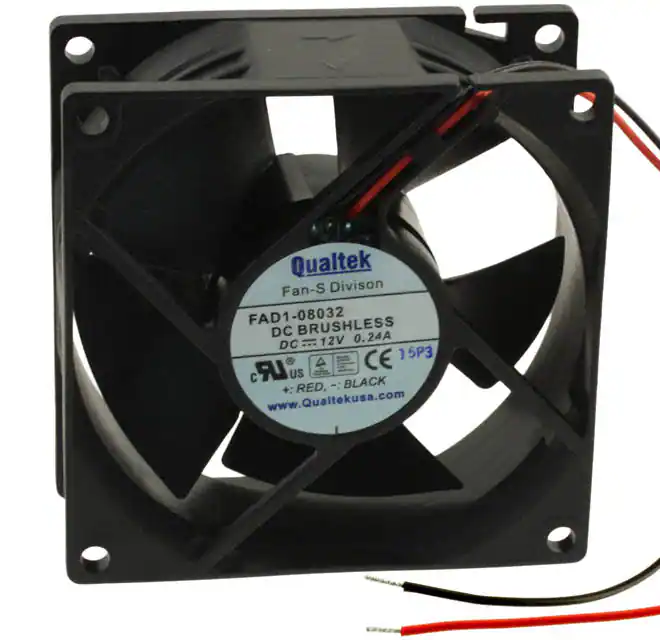

FAD1-08032CBJW12FAN AXIAL 80.5X32MM 12VDC WIRE |
4,370 |
|
规格书 |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 55.4 CFM (1.55m³/min) | 0.316 in H2O (78.7 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 2.76 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.238 lb (107.95 g) |
|
|
FAD1-08032DBMW12FAN AXIAL 80.5X32MM 24VDC WIRE |
2,529 |
|
规格书 |
FAD1-08032 | Bulk | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 44.8 CFM (1.25m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | - | 36.7dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.238 lb (107.95 g) |
|
|
FAD1-08032DBHW12FAN AXIAL 80.5X32MM 24VDC WIRE |
2,537 |
|
规格书 |
FAD1-08032 | Bulk | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 50.0 CFM (1.40m³/min) | 0.292 in H2O (72.7 Pa) | Ball | Tubeaxial | - | 42.4dB(A) | 2.88 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.238 lb (107.95 g) |
