购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-08032EBLW12FAN AXIAL 80.5X32MM 48VDC WIRE |
4,097 |
|
规格书 |
FAD1-08032 | Bulk | Active | 48VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 39.6 CFM (1.11m³/min) | 0.187 in H2O (46.6 Pa) | Ball | Tubeaxial | - | 35.5dB(A) | 2.88 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.238 lb (107.95 g) |
|
FAD1-08038DBLW12FAN AXIAL 80.5X38MM 24VDC WIRE |
3,876 |
|
规格书 |
FAD1-08038 | Bulk | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 38.00mm | 38.7 CFM (1.08m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | - | 32.3dB(A) | 1.92 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.264 lb (119.75 g) |
|
|
FAD1-08038DBHW12FAN AXIAL 80.5X38MM 24VDC WIRE |
2,089 |
|
规格书 |
FAD1-08038 | Bulk | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 38.00mm | 53.3 CFM (1.49m³/min) | 0.222 in H2O (55.3 Pa) | Ball | Tubeaxial | - | 39.9dB(A) | 3.36 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.264 lb (119.75 g) |
|
FAD1-09225DBLW11FAN AXIAL 92.5X25MM 24VDC WIRE |
1,817 |
|
规格书 |
FAD1-09225 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 40.7 CFM (1.14m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | - | 29.2dB(A) | 1.2 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
FAD1-09225DBHW11FAN AXIAL 92.5X25MM 24VDC WIRE |
1,818 |
|
规格书 |
FAD1-09225 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 56.1 CFM (1.57m³/min) | 0.146 in H2O (36.4 Pa) | Ball | Tubeaxial | - | 37.5dB(A) | 3.6 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
FAD1-09225DBJW12FAN AXIAL 92.5X25MM 24VDC WIRE |
2,638 |
|
规格书 |
FAD1-09225 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 61.9 CFM (1.73m³/min) | 0.187 in H2O (46.6 Pa) | Ball | Tubeaxial | - | 42.2dB(A) | 3.64 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
FAD1-12025CBAW12FAN AXIAL 120X25.5MM 12VDC WIRE |
2,738 |
|
规格书 |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.50mm | 57.2 CFM (1.60m³/min) | 0.074 in H2O (18.4 Pa) | Ball | Tubeaxial | - | 27.2dB(A) | 1.32 W | 1500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.344 lb (156.04 g) |
|
|
FAD1-12025DBHW12FAN AXIAL 120X25.5MM 24VDC WIRE |
4,776 |
|
规格书 |
FAD1-12025 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.50mm | 87.9 CFM (2.46m³/min) | 0.134 in H2O (33.5 Pa) | Ball | Tubeaxial | - | 39.1dB(A) | 3.12 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.344 lb (156.04 g) |
|
|
FAD1-12025DBMW12FAN AXIAL 120X25.5MM 24VDC WIRE |
2,669 |
|
规格书 |
FAD1-12025 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.50mm | 81.0 CFM (2.27m³/min) | 0.113 in H2O (28.1 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 3.12 W | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.344 lb (156.04 g) |
|
|
FAD1-12025DBJW12FAN AXIAL 120X25.5MM 24VDC WIRE |
2,014 |
|
规格书 |
FAD1-12025 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.50mm | 99.0 CFM (2.77m³/min) | 0.174 in H2O (43.3 Pa) | Ball | Tubeaxial | - | 43.3dB(A) | 4.56 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.344 lb (156.04 g) |
|
FAD1-12038DBHW12FAN AXIAL 120X38.5MM 24VDC WIRE |
1,064 |
|
规格书 |
FAD1-12038 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 105.5 CFM (2.95m³/min) | 0.265 in H2O (66.0 Pa) | Ball | Tubeaxial | - | 46.7dB(A) | 6.24 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
|
FAD1-12038DBMW12FAN AXIAL 120X38.5MM 24VDC WIRE |
2,281 |
|
规格书 |
FAD1-12038 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 96.3 CFM (2.70m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.8 W | 2540 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
|
FAD1-12038EBMW12FAN AXIAL 120X38.5MM 48VDC WIRE |
3,213 |
|
规格书 |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 96.3 CFM (2.70m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 6.24 W | 2540 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
|
FAD1-12038EBJW12FAN AXIAL 120X38.5MM 48VDC WIRE |
4,221 |
|
规格书 |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 10.6 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|

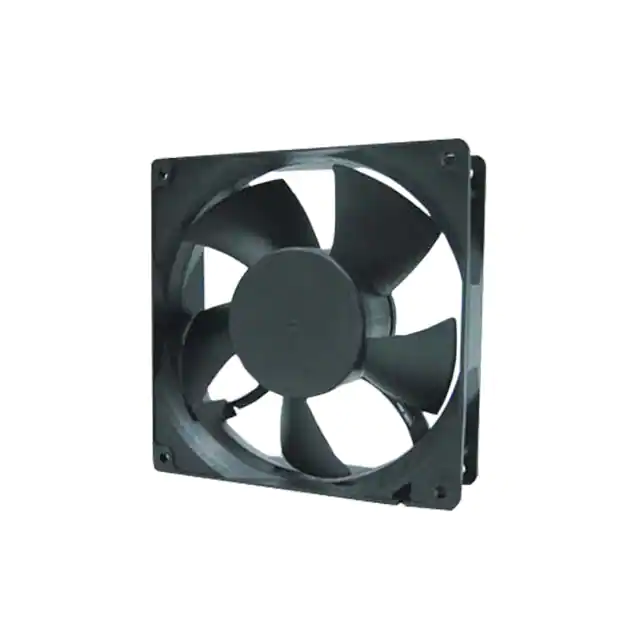

FAD1-12738CBHW12FAN AXIAL 127X38.5MM 12VDC WIRE |
2,465 |
|
规格书 |
FAD1-12738 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 53.0dB(A) | 7.8 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.816 lb (370.13 g) |
|
|
FAD1-12738CBKW12FAN AXIAL 127X38.5MM 12VDC WIRE |
2,666 |
|
规格书 |
FAD1-12738 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 226.0 CFM (6.33m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 62.0dB(A) | 23.4 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.816 lb (370.13 g) |
|
|
FAD1-12738DBJW12FAN AXIAL 127X38.5MM 24VDC WIRE |
4,932 |
|
规格书 |
FAD1-12738 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 193.0 CFM (5.40m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 12 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.816 lb (370.13 g) |
|
|
FAD1-12738DBTW12FAN AXIAL 127X38.5MM 24VDC WIRE |
3,664 |
|
规格书 |
FAD1-12738 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 242.0 CFM (6.78m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | - | 64.5dB(A) | 26.4 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.816 lb (370.13 g) |
|
|
FAD1-12738DBKW12FAN AXIAL 127X38.5MM 24VDC WIRE |
2,526 |
|
规格书 |
FAD1-12738 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 226.0 CFM (6.33m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 62.0dB(A) | 22.6 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.816 lb (370.13 g) |
|
|
FAD1-12738EBMW12FAN AXIAL 127X38.5MM 48VDC WIRE |
4,638 |
|
规格书 |
FAD1-12738 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 133.0 CFM (3.72m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 47.5dB(A) | 7.2 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.816 lb (370.13 g) |
