购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-06025BHHW12FAN AXIAL 60X25MM 5VDC WIRE |
3,694 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Hydrodynamic | Tubeaxial | - | 36.3dB(A) | 1.75 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CHLW12FAN AXIAL 60X25MM 12VDC WIRE |
3,358 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Hydrodynamic | Tubeaxial | - | 18.1dB(A) | 480 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CHMW12FAN AXIAL 60X25MM 12VDC WIRE |
4,708 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Hydrodynamic | Tubeaxial | - | 27.9dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CHHW12FAN AXIAL 60X25MM 12VDC WIRE |
4,467 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Hydrodynamic | Tubeaxial | - | 36.3dB(A) | 1.56 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025CHJW12FAN AXIAL 60X25MM 12VDC WIRE |
3,210 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.9 CFM (0.781m³/min) | 0.242 in H2O (60.3 Pa) | Hydrodynamic | Tubeaxial | - | 37.6dB(A) | 2.52 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DHLW12FAN AXIAL 60X25MM 24VDC WIRE |
1,650 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Hydrodynamic | Tubeaxial | - | 18.1dB(A) | 1.68 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DHMW12FAN AXIAL 60X25MM 24VDC WIRE |
1,623 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Hydrodynamic | Tubeaxial | - | 27.9dB(A) | 1.44 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DHHW12FAN AXIAL 60X25MM 24VDC WIRE |
2,164 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Hydrodynamic | Tubeaxial | - | 36.3dB(A) | 2.88 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|
|
FAD1-06025DHJW12FAN AXIAL 60X25MM 24VDC WIRE |
4,954 |
|
规格书 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.9 CFM (0.781m³/min) | 0.242 in H2O (60.3 Pa) | Hydrodynamic | Tubeaxial | - | 37.6dB(A) | 2.4 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.117 lb (53.07 g) |
|

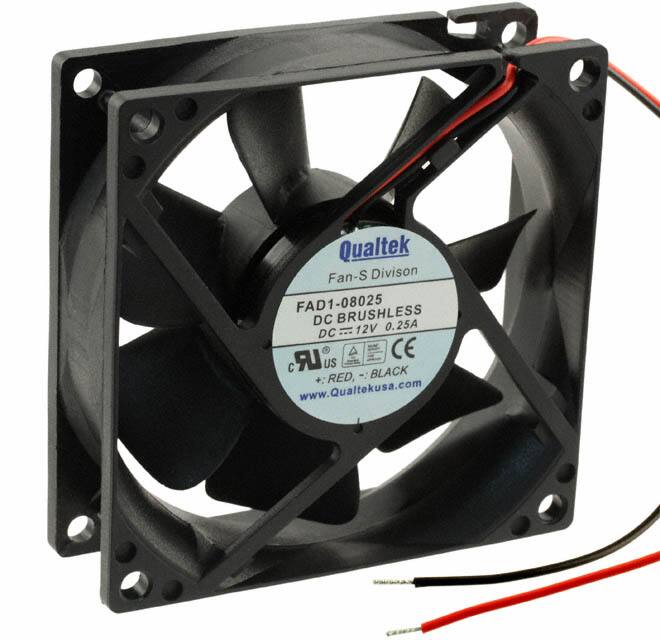

FAD1-08025CHAW11FAN AXIAL 80X25MM 12VDC WIRE |
1,275 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 20.6 CFM (0.577m³/min) | 0.043 in H2O (10.7 Pa) | Hydrodynamic | Tubeaxial | - | 16.5dB(A) | 600 mW | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CHLW11FAN AXIAL 80X25MM 12VDC WIRE |
2,514 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.072 in H2O (17.9 Pa) | Hydrodynamic | Tubeaxial | - | 22.3dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CHMW11FAN AXIAL 80X25MM 12VDC WIRE |
3,746 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.4 CFM (0.907m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | Tubeaxial | - | 29.4dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CHHW11FAN AXIAL 80X25MM 12VDC WIRE |
2,189 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.142 in H2O (35.4 Pa) | Hydrodynamic | Tubeaxial | - | 35.2dB(A) | 2.52 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CHJW11FAN AXIAL 80X25MM 12VDC WIRE |
2,709 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.167 in H2O (41.6 Pa) | Hydrodynamic | Tubeaxial | - | 37.4dB(A) | 2.76 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DHLW11FAN AXIAL 80X25MM 24VDC WIRE |
1,978 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.072 in H2O (17.9 Pa) | Hydrodynamic | Tubeaxial | - | 22.3dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DHMW11FAN AXIAL 80X25MM 24VDC WIRE |
4,764 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 32.4 CFM (0.907m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | Tubeaxial | - | 29.4dB(A) | 1.68 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025DHHW11FAN AXIAL 80X25MM 24VDC WIRE |
4,888 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.142 in H2O (35.4 Pa) | Hydrodynamic | Tubeaxial | - | 35.2dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CHAW12FAN AXIAL 80X25MM 12VDC WIRE |
1,146 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 21.6 CFM (0.605m³/min) | 0.046 in H2O (11.4 Pa) | Hydrodynamic | Tubeaxial | - | 14.0dB(A) | 480 mW | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.19 lb (86.18 g) |
|
|
FAD1-08025CHLW12FAN AXIAL 80X25MM 12VDC WIRE |
2,068 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 26.8 CFM (0.750m³/min) | 0.078 in H2O (19.4 Pa) | Hydrodynamic | Tubeaxial | - | 21.6dB(A) | 720 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
|
|
FAD1-08025CHMW12FAN AXIAL 80X25MM 12VDC WIRE |
1,903 |
|
规格书 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.4 CFM (0.935m³/min) | 0.117 in H2O (29.1 Pa) | Hydrodynamic | Tubeaxial | - | 28.3dB(A) | 1.08 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.189 lb (85.73 g) |
