购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3615RL-07W-B50-B00FAN AXIAL 92X38.4MM 48VDC WIRE |
1,628 |
|
规格书 |
3615RL | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.40mm | 129.9 CFM (3.64m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 17.3 W | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|
|
3615RL-07W-B70-B00FAN AXIAL 92X38.4MM 48VDC WIRE |
3,861 |
|
规格书 |
3615RL | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.40mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | - | 62.5dB(A) | 27.4 W | 7200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|
|
3615RL-04W-B79-B00FAN AXIAL 92X38.4MM 12VDC WIRE |
1,422 |
|
规格书 |
3615RL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.40mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.5dB(A) | 28.9 W | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|
|
3615RL-05W-B79-B00FAN AXIAL 92X38.4MM 24VDC WIRE |
2,528 |
|
规格书 |
3615RL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 38.40mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.5dB(A) | 27.1 W | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|
|
3615RL-07W-B79-B00FAN AXIAL 92X38.4MM 48VDC WIRE |
3,374 |
|
规格书 |
3615RL | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.40mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.5dB(A) | 27.4 W | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|
|
3615RL-04W-B79-B50FAN AXIAL 92X38.4MM 12VDC WIRE |
4,288 |
|
规格书 |
3615RL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.40mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.5dB(A) | 28.9 W | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|
|
3615RL-05W-B79-B50FAN AXIAL 92X38.4MM 24VDC WIRE |
2,317 |
|
规格书 |
3615RL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 38.40mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.5dB(A) | 27.1 W | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|
|
3615RL-07W-B79-B50FAN AXIAL 92X38.4MM 48VDC WIRE |
1,724 |
|
规格书 |
3615RL | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.40mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.5dB(A) | 27.4 W | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.507 lb (229.97 g) |
|

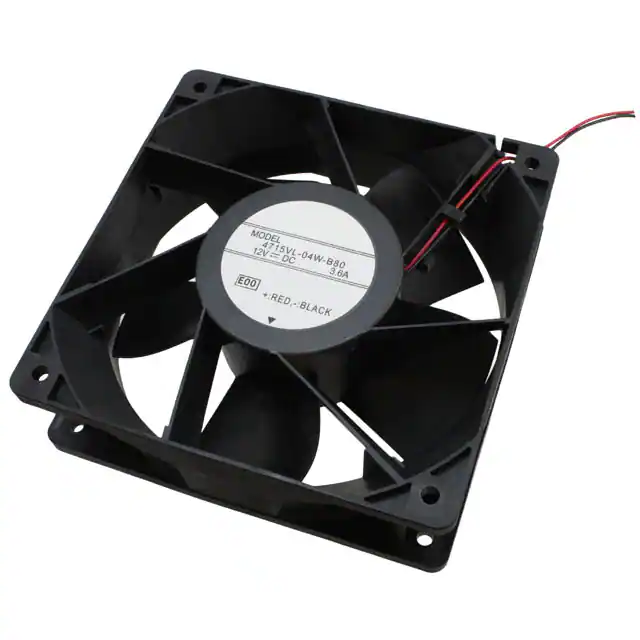

4715VL-04W-B80-E00FAN AXIAL 120X38MM 12VDC WIRE |
4,667 |
|
规格书 |
4715VL | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.457 in H2O (362.9 Pa) | Ball | Tubeaxial | - | 66.0dB(A) | 36 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|

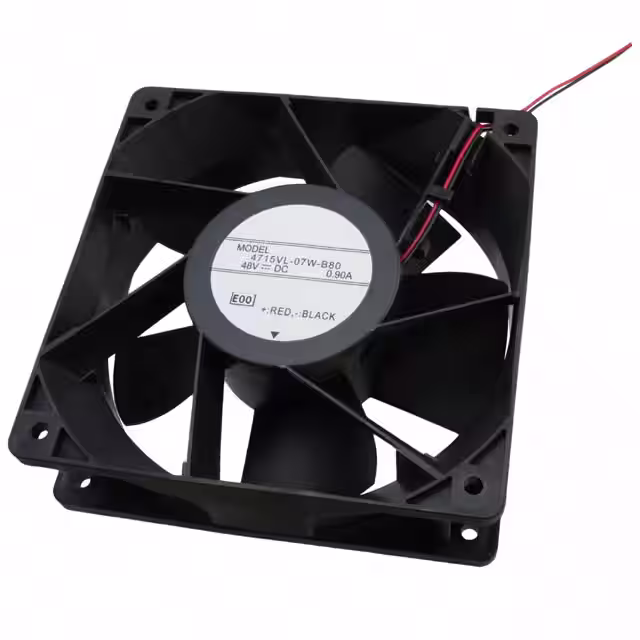

4715VL-07W-B80-E00FAN AXIAL 120X38MM 48VDC WIRE |
1,163 |
|
规格书 |
4715VL | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.457 in H2O (362.9 Pa) | Ball | Tubeaxial | - | 66.0dB(A) | 38.4 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|

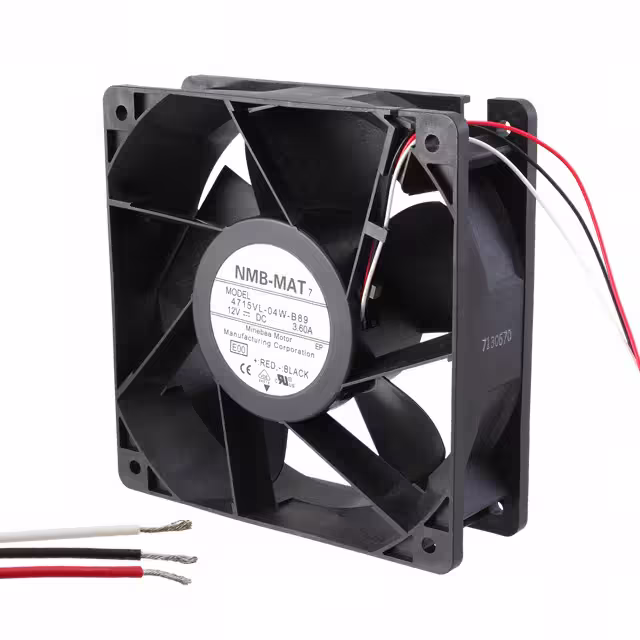

4715VL-04W-B89-E00FAN AXIAL 120X38MM 12VDC WIRE |
2,816 |
|
规格书 |
4715VL | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.457 in H2O (362.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 66.0dB(A) | 36 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|

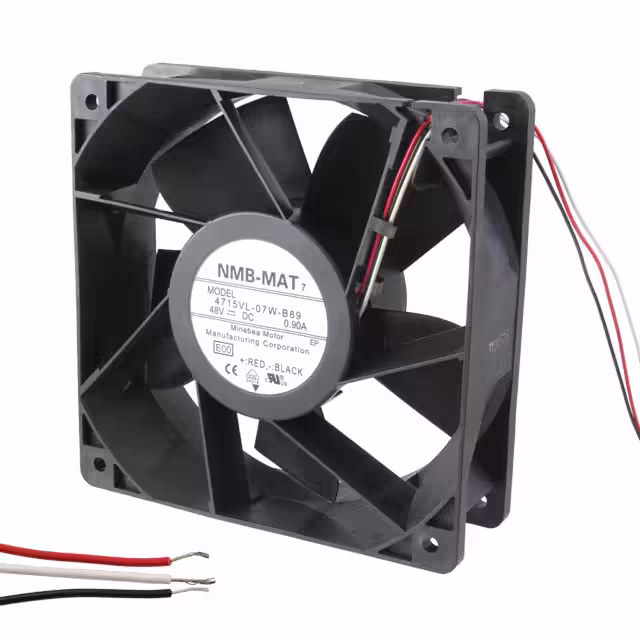

4715VL-07W-B89-E00FAN AXIAL 120X38MM 48VDC WIRE |
1,591 |
|
规格书 |
4715VL | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.457 in H2O (362.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 66.0dB(A) | 38.4 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|
5920VL-07W-B40-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
2,509 |
|
规格书 |
5920VL | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 251.0 CFM (7.03m³/min) | 0.671 in H2O (167.1 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 19.7 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL, VDE | 1.8 lbs (816.5 g) |
|
1608VL-04W-B49-B00FAN AXIAL 40.1X20MM 12VDC WIRE |
2,772 |
|
规格书 |
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 1.02 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
1608VL-04W-B59-B00FAN AXIAL 40.1X20MM 12VDC WIRE |
1,334 |
|
规格书 |
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.308 in H2O (76.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.4dB(A) | 1.32 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
1608VL-04W-B49-B50FAN AXIAL 40.1X20MM 12VDC WIRE |
1,355 |
|
规格书 |
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 1.02 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
1608VL-04W-B59-B50FAN AXIAL 40.1X20MM 12VDC WIRE |
1,771 |
|
规格书 |
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.308 in H2O (76.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.4dB(A) | 1.32 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
1608VL-05W-B49-B50FAN AXIAL 40.1X20MM 24VDC WIRE |
3,793 |
|
规格书 |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 1.2 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
1608VL-05W-B59-B50FAN AXIAL 40.1X20MM 24VDC WIRE |
4,651 |
|
规格书 |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.308 in H2O (76.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.4dB(A) | 1.68 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
3610VL-04W-B30-B00FAN AXIAL 92X25MM 12VDC WIRE |
2,877 |
|
规格书 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 61.1 CFM (1.71m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | - | 38.5dB(A) | 2.88 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
