| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2S1CSQ24VDC1.9DRELAY AUTOMOTIVE SPDT 40A 24V |
3,941 |
|
规格书 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

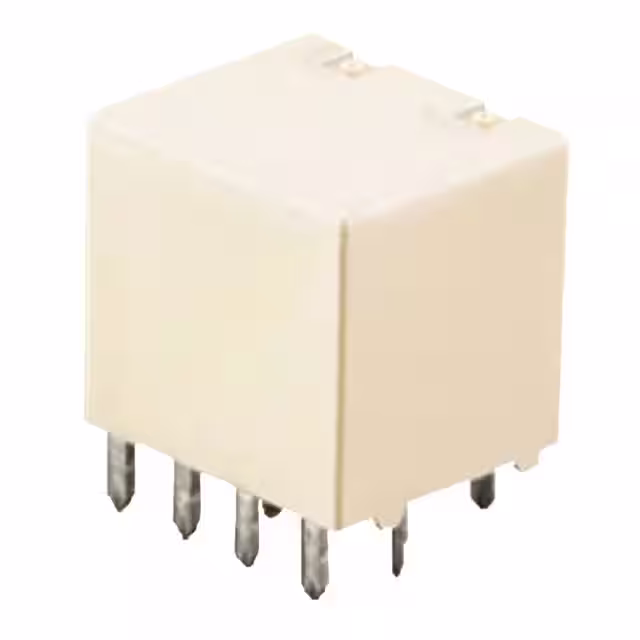

ACJ5212PRELAY AUTOMOTIVE SPDTX2 20A 12V |
4,270 |
|
规格书 |
ACJ | Tube | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ980-1A-24DRRELAY AUTOMOTIVE SPST 80A 24V |
4,528 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ9711-1C-12DSETKRELAY AUTOMOTIVE SPDT 30A 12V |
4,831 |
|
规格书 |
AZ9711 | Box | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 150VDC - Max | 9 VDC | 0.7 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
A3F1ACQ12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
1,572 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31ACQ12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
4,369 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ979-1A-12DC1RELAY AUTOMOTIVE SPST 80A 12V |
4,127 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | SUPER-ISO w/ Steel Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A31ACQ12VDC2DRELAY AUTOMOTIVE SPST 80A 12V |
2,528 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1ACQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
3,262 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1ACQ12VDC2DRELAY AUTOMOTIVE SPST 80A 12V |
3,727 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ983-1A-24DRELAY AUTOMOTIVE SPST 80A 24V |
3,848 |
|
规格书 |
AZ983 | Box | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ979-1A-24DRELAY AUTOMOTIVE SPST 80A 24V |
3,060 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A3M1ACQ12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
2,755 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31ACQ24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
3,597 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1ACQ24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
4,719 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ979-1A-12DDRELAY AUTOMOTIVE SPST 80A 12V |
3,807 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A31ACQ24VDC2RRELAY AUTOMOTIVE SPST 80A 24V |
3,876 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31ACQ24VDC2DRELAY AUTOMOTIVE SPST 80A 24V |
2,959 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1ACQ24VDC2DRELAY AUTOMOTIVE SPST 80A 24V |
2,167 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1ACQ24VDC2RRELAY AUTOMOTIVE SPST 80A 24V |
4,961 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
