| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

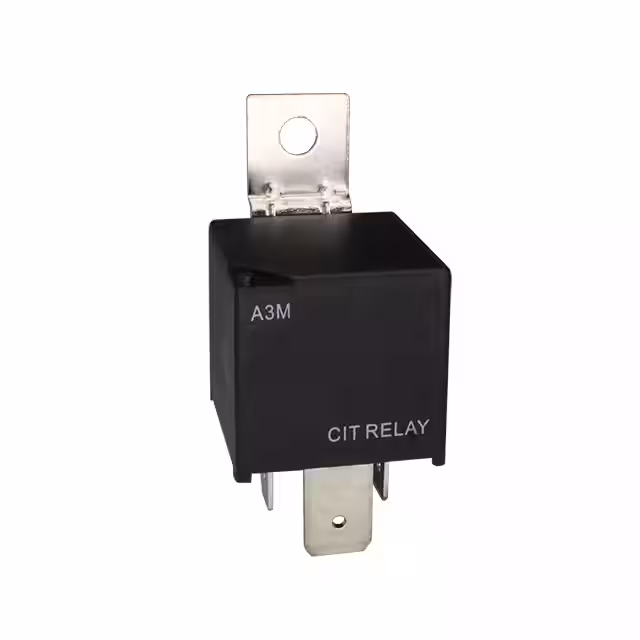

A3M1CCQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
3,854 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31ACQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
4,446 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

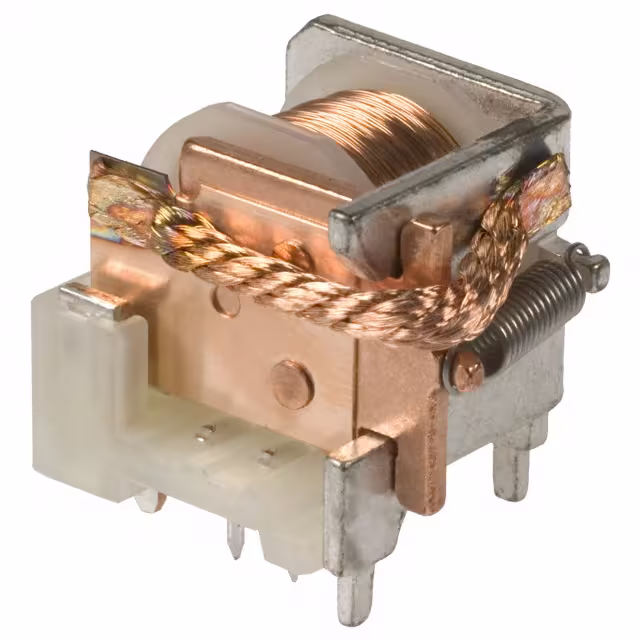

VKP-15F42RELAY AUTOMOTIVE SPDT 40A 12V |
1,669 |
|
规格书 |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|

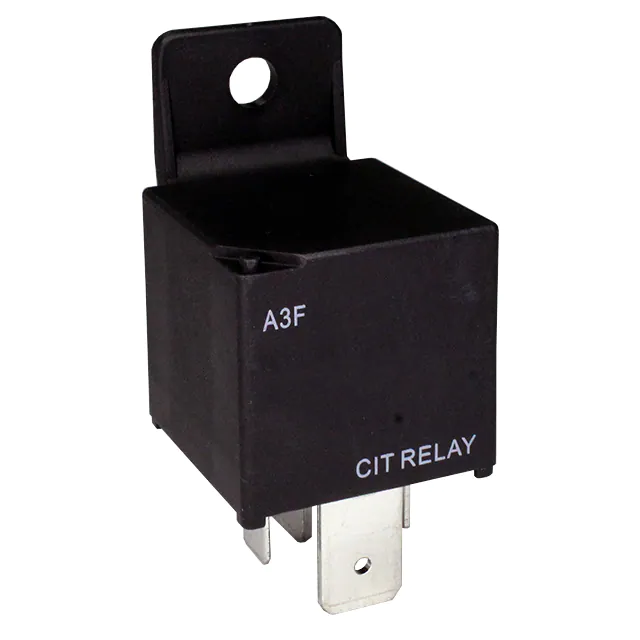

A3F1CCQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
2,008 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31CCQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
4,033 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1CCQ12VDC2RRELAY AUTOMOTIVE SPDT 80A 12V |
1,143 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1CCQ12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
4,618 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31CCQ24VDC2RRELAY AUTOMOTIVE SPDT 80A 24V |
2,659 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1CCQ24VDC2RRELAY AUTOMOTIVE SPDT 80A 24V |
2,441 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31CCQ24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
3,228 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1CCQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
3,818 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ12VDC2DRELAY AUTOMOTIVE SPST 80A 12V |
4,407 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1CCQ24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
1,580 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1CCQ24VDC2RRELAY AUTOMOTIVE SPDT 80A 24V |
1,680 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
AZ9861-1C-12DC4R1RELAY AUTOMOTIVE SPDT 40A 12V |
2,662 |
|
规格书 |
AZ9861 | Box | Active | Non Latching | 96.8 mA | 12VDC | SPDT (1 Form C) | 40 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 6 ms | 3 ms | 280-ISO, Resistor, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|
|
AZ980-1A-12DDRELAY AUTOMOTIVE SPST 80A 12V |
3,268 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ9801-1A-24DRELAY AUTOMOTIVE SPST 70A 24V |
3,355 |
|
规格书 |
AZ9801 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 7 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9711-1C-12DETKRELAY AUTOMOTIVE SPDT 30A 12V |
1,972 |
|
规格书 |
AZ9711 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 150VDC - Max | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ980-1C-12DDERELAY AUTOMOTIVE SPDT 60A 12V |
2,796 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, SUPER-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ9801-1A-24DHRELAY AUTOMOTIVE SPST 70A 24V |
3,066 |
|
规格书 |
AZ9801 | Box | Active | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 7 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
