| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2S1ASQ24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
2,951 |
|
规格书 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

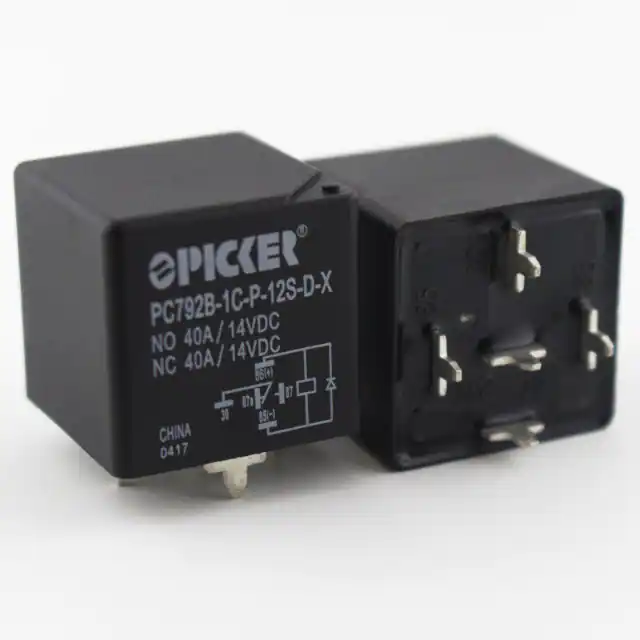

PC792B-1C-P-12S-D-XRELAY AUTOMOTIVE SPDT 40A 12V |
1,613 |
|
规格书 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
ACVN51012RELAY AUTOMOTIVE SPST 12V |
2,212 |
|
规格书 |
ACVN | Bulk | Active | Non Latching | 66.7 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
|
A2S1ASQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V |
1,222 |
|
规格书 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1ASQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V |
2,473 |
|
规格书 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
02040709ZRELAY AUTOMOTIVE SPST 30A 12V |
3,701 |
|
规格书 |
ISO MINI® | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | - | - | - | - | Diode | Socketable | Plug In | - |
|
|
AZ9711-1C-12DETRELAY AUTOMOTIVE SPDT 30A 12V |
2,088 |
|
规格书 |
AZ9711 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 150VDC - Max | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2S1CSQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
2,336 |
|
规格书 |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9861-1C-12DC1R1RELAY AUTOMOTIVE SPDT 40A 12V |
4,417 |
|
规格书 |
AZ9861 | Box | Active | Non Latching | 96.8 mA | 12VDC | SPDT (1 Form C) | 40 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 6 ms | 3 ms | 280-ISO, Resistor | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|
|
AZ9711-1C-24DETRELAY AUTOMOTIVE SPDT 30A 24V |
2,077 |
|
规格书 |
AZ9711 | Box | Active | Non Latching | 66.3 mA | 24VDC | SPDT (1 Form C) | 30 A | 150VDC - Max | 13.9 VDC | 1.44 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2S1CSQ12VDC1.9DRELAY AUTOMOTIVE SPDT 40A 12V |
4,133 |
|
规格书 |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1CSQ12VDC1.9RRELAY AUTOMOTIVE SPDT 40A 12V |
1,435 |
|
规格书 |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ980-1A-24DRELAY AUTOMOTIVE SPST 80A 24V |
1,779 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ987-2A-24DETRELAY AUTOMOTIVE DPST 30A 24V |
3,589 |
|
规格书 |
AZ987 | Box | Active | Non Latching | - | 24VDC | DPST-NO (2 Form A) | 30 A | 16VDC - Max | 13.8 VDC | 3 VDC | 4 ms | 2 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ9711-1C-24DSETRELAY AUTOMOTIVE SPDT 30A 24V |
3,609 |
|
规格书 |
AZ9711 | Box | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 150VDC - Max | 19.2 VDC | 1.44 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2S1ASQ12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
2,280 |
|
规格书 |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1CSQ24VDC1.9RRELAY AUTOMOTIVE SPDT 40A 24V |
3,571 |
|
规格书 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
CP1AH-12VCP POWER RELAY 1 FORM A 12V |
2,017 |
|
规格书 |
CP | Tube | Active | Non Latching | 37.5 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CP1H-12VCP POWER RELAY 1 FORM C 12V |
2,372 |
|
规格书 |
CP | Tube | Active | Non Latching | 37.5 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ987-2C-12DETRELAY AUTOMOTIVE DPDT 30A 12V |
4,812 |
|
规格书 |
AZ987 | Box | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 30 A | 16VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 2 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
