| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2M1CSQ24VDC1.9RELAY AUTOMOTIVE SPDT 40A 24V |
1,437 |
|
规格书 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1CSQ24VDC1.9DRELAY AUTOMOTIVE SPDT 40A 24V |
2,211 |
|
规格书 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3F1UCQ12VDC1RRELAY AUTOMOTIVE SPST 25A 12V |
1,746 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31UCQ12VDC1RRELAY AUTOMOTIVE SPST 25A 12V |
1,095 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1UCQ12VDC1DRELAY AUTOMOTIVE SPST 25A 12V |
3,237 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31UCQ12VDC1DRELAY AUTOMOTIVE SPST 25A 12V |
3,902 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A102AS24VDCRELAY AUTOMOTIVE DPST 30A 24V |
4,799 |
|
规格书 |
A10 | Tube | Active | Non Latching | 20.8 mA | 24VDC | DPST-NO (2 Form A) | 30 A | 28VDC - Max | 16.8 VDC | 2.4 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
A3M1UCQ12VDC1RELAY AUTOMOTIVE SPST 60A 12V |
3,289 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC1RRELAY AUTOMOTIVE SPST 60A 24V |
1,047 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC1DRELAY AUTOMOTIVE SPST 60A 24V |
2,371 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CP1H-N-12VCP POWER RELAY 1 FORM C 12V |
3,715 |
|
规格书 |
CP | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 6.5 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

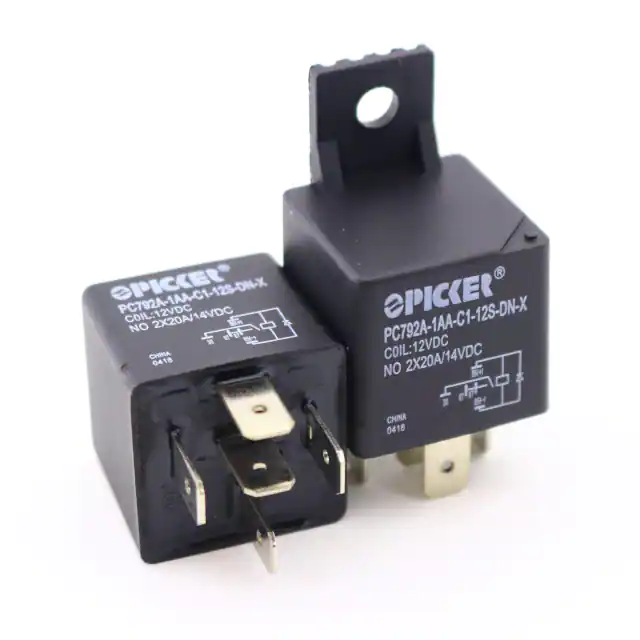

PC792A-1AA-C1-12S-DN-XRELAY AUTOMOTIVE SPST 40A 12V |
2,461 |
|
规格书 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1UCQ12VDC1RRELAY AUTOMOTIVE SPST 60A 12V |
4,160 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1UCQ12VDC1DRELAY AUTOMOTIVE SPST 60A 12V |
4,420 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31UCQ24VDC1DRELAY AUTOMOTIVE SPST 25A 24V |
4,619 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31UCQ24VDC1RRELAY AUTOMOTIVE SPST 25A 24V |
4,838 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1UCQ24VDC1RRELAY AUTOMOTIVE SPST 25A 24V |
1,330 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1UCQ24VDC1DRELAY AUTOMOTIVE SPST 25A 24V |
3,139 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
G8G-1A7SR DC12AUTO MOTIVE PCB RELAY, DC 12V |
2,706 |
|
规格书 |
G8G | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 5.5 VDC | 0.5 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
A3M1UCQ24VDC1RELAY AUTOMOTIVE SPST 25A 24V |
3,112 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
