购物车汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ989-2C-12DSERELAY AUTOMOTIVE DPDT 25A 12V |
2,442 |
|
规格书 |
AZ989 | Box | Active | Non Latching | 53.3 mA | 12VDC | DPDT (2 Form C) | 25 A | 16VDC - Max | 7.2 VDC | 1 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ989-2C-12DERELAY AUTOMOTIVE DPDT 25A 12V |
1,876 |
|
规格书 |
AZ989 | Box | Active | Non Latching | 66.7 mA | 12VDC | DPDT (2 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 1 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A2M1CSP12VDC1.6RELAY AUTOMOTIVE METAL BRACKET S |
1,055 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
PC792C-1A-C1-12C-N-XRELAY AUTOMOTIVE SPST 50A 12V |
2,647 |
|
规格书 |
- | Box | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3M1UCQ24VDC1RRELAY AUTOMOTIVE SPST 25A 24V |
1,072 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1UCQ24VDC1DRELAY AUTOMOTIVE SPST 25A 24V |
4,419 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3F1CCQ12VDC1RELAY AUTOMOTIVE SPDT 60A 12V |
1,878 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1CCQ12VDC1RRELAY AUTOMOTIVE SPDT 60A 12V |
3,136 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1CCQ12VDC1DRELAY AUTOMOTIVE SPDT 60A 12V |
1,046 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC792E-1C-C-12S-DN-XRELAY AUTOMOTIVE SPDT 50A 12V |
2,823 |
|
规格书 |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792C-1A-C1-12C-RN-XRELAY AUTOMOTIVE SPST 50A 12V |
1,977 |
|
规格书 |
- | Box | Active | Non Latching | 168 mA | 12VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792C-1A-C-12C-RN-XRELAY AUTOMOTIVE SPST 50A 12V |
4,417 |
|
规格书 |
- | Box | Active | Non Latching | 168 mA | 12VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792E-1C-C-12C-RN-XRELAY AUTOMOTIVE SPDT 50A 12V |
3,153 |
|
规格书 |
- | Box | Active | Non Latching | 150.9 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A3M1CCQ12VDC1RELAY AUTOMOTIVE SPDT 60A 12V |
1,513 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

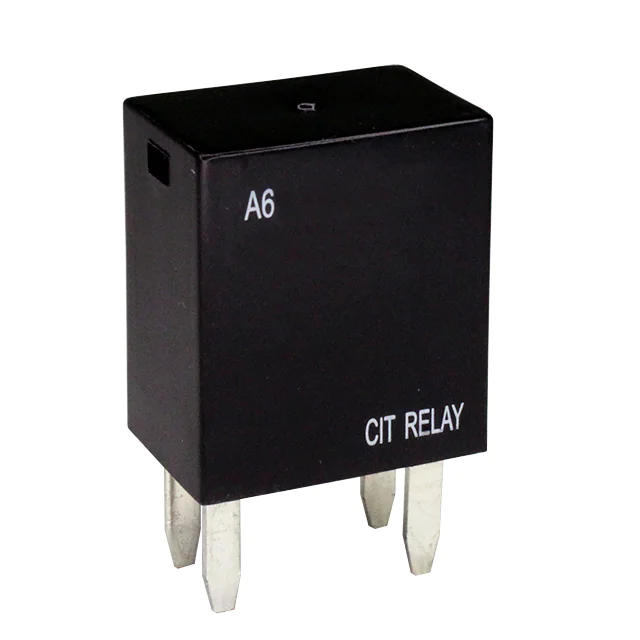

A61CC12VDC1.3DRELAY AUTOMOTIVE SPDT 30A 12V |
1,109 |
|
规格书 |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A3F1CCQ24VDC1RELAY AUTOMOTIVE SPDT 60A 24V |
4,007 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
G8G-17SR DC12AUTO MOTIVE PCB RELAY, DC 12V |
3,708 |
|
规格书 |
G8G | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 5.5 VDC | 0.5 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
AZ9711-1A-12DETRELAY AUTOMOTIVE SPST 45A 12V |
1,521 |
|
规格书 |
AZ9711 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 45 A | 150VDC - Max | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3F1ACQ24VDC1RELAY AUTOMOTIVE SPST 60A 24V |
3,479 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1CCQ12VDC1RRELAY AUTOMOTIVE SPDT 60A 12V |
3,832 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
