| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC793-1A-C-12S1-RN-XRELAY AUTOMOTIVE SPST 70A 12V |
2,722 |
|
规格书 |
- | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CB1-R-WM-24VRELAY AUTOMOTIVE SPDT 20A 24V |
4,366 |
|
规格书 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
PC793-1A-C2-12S-RN-XRELAY AUTOMOTIVE SPST 70A 12V |
4,666 |
|
规格书 |
- | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CB1AVF-12VCB RELAY 1 FORM A 35A 12V |
1,230 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
AZ9861-1C-24DC4R1RELAY AUTOMOTIVE SPDT 40A 24V |
3,154 |
|
规格书 |
AZ9861 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 6 ms | 3 ms | 280-ISO, Resistor, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|
|
AZ988-1AT-12DSEC3RRELAY AUTOMOTIVE SPST 30A 12V |
3,080 |
|
规格书 |
AZ988 | Box | Active | Non Latching | 96.8 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ9831-1A-12DRELAY AUTOMOTIVE SPST 70A 12V |
4,938 |
|
规格书 |
AZ9831 | Box | Active | Non Latching | 157.9 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC795-1C-C2-24S-N-XRELAY AUTOMOTIVE SPDT 40A 24V |
2,452 |
|
规格书 |
- | Bag | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1AV-12VCB RELAY 1 FORM A 35A 12V |
4,446 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
1-1414474-0V23076A3001D142TX |
1,872 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

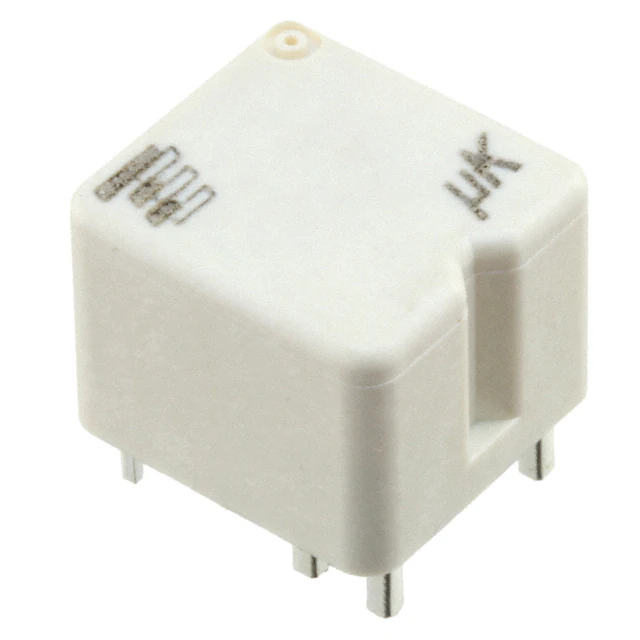

7-1414967-8RELAY AUTO SPDT 30A 10V |
3,007 |
|
规格书 |
Micro Relay K | Bulk | Obsolete | Non Latching | 55 mA | 10VDC | SPDT (1 Form C) | 30 A | 10VDC - Nom | 5.7 VDC | 1.25 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
A3F1CSP12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
3,026 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ988-1AT-12DEC3RELAY AUTOMOTIVE SPST 30A 12V |
4,512 |
|
规格书 |
AZ988 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ9861-1C-12DC3R1RELAY AUTOMOTIVE SPDT 40A 12V |
4,482 |
|
规格书 |
AZ9861 | Box | Active | Non Latching | 96.8 mA | 12VDC | SPDT (1 Form C) | 40 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 6 ms | 3 ms | 280-ISO, Resistor, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|
|
A3F1CSP12VDC2RRELAY AUTOMOTIVE SPDT 80A 12V |
3,875 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3F1CSP12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
4,931 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
CB1AF-R-P-12VRELAY AUTOMOTIVE SPST 40A 12V |
4,032 |
|
规格书 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1AVF-D-12VCB RELAY 1 FORM A 35A 12V |
4,364 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AVF-R-12VCB RELAY 1 FORM A 35A 12V |
4,726 |
|
规格书 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1VF-12VCB RELAY 1 FORM C 35A 12V |
1,538 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
