购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R90DM-190-C8AC/DC DESKTOP ADAPTER 19V 90W Tri-Mag, LLC |
4,777 |
|
规格书 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV |
|

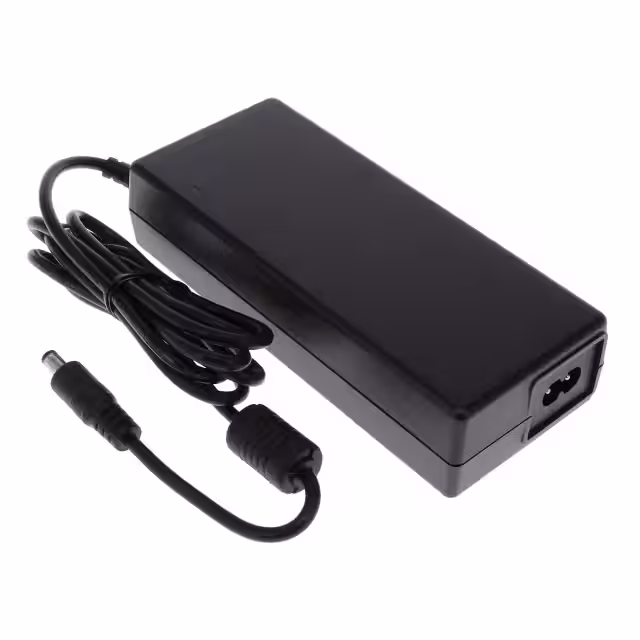

L6R90DM-120-C8AC/DC DESKTOP ADAPTER 12V 84W Tri-Mag, LLC |
2,463 |
|
规格书 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7A | 84 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV |
|

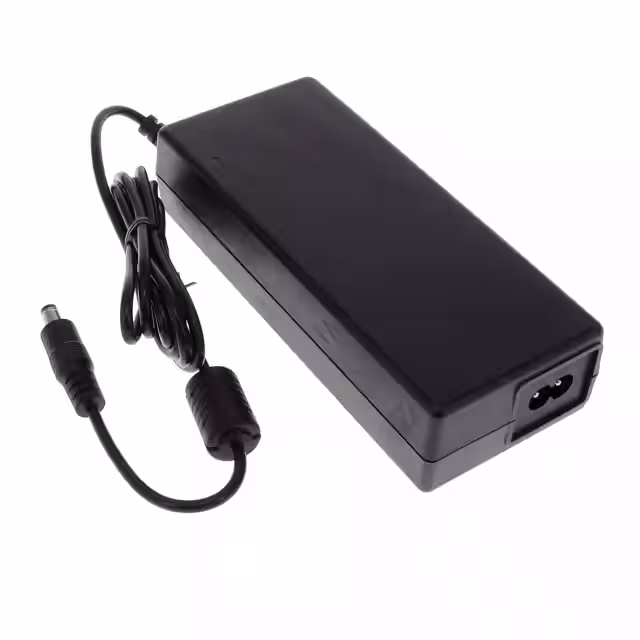

L6R90DM-480-C8AC/DC DESKTOP ADAPTER 48V 90W Tri-Mag, LLC |
4,119 |
|
规格书 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV |
|

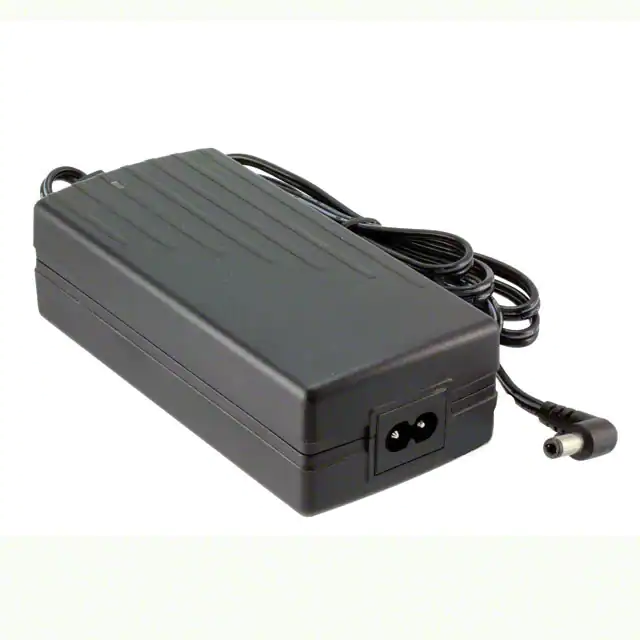

DT060AF-6AC/DC DESKTOP ADAPTER 24V 60W Tri-Mag, LLC |
2,218 |
|
规格书 |
DT060AF (60W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. | - | IEC 320-C8 | - | 5.31" L x 2.56" W x 1.57" H (135.0mm x 65.0mm x 40.0mm) | - |
|

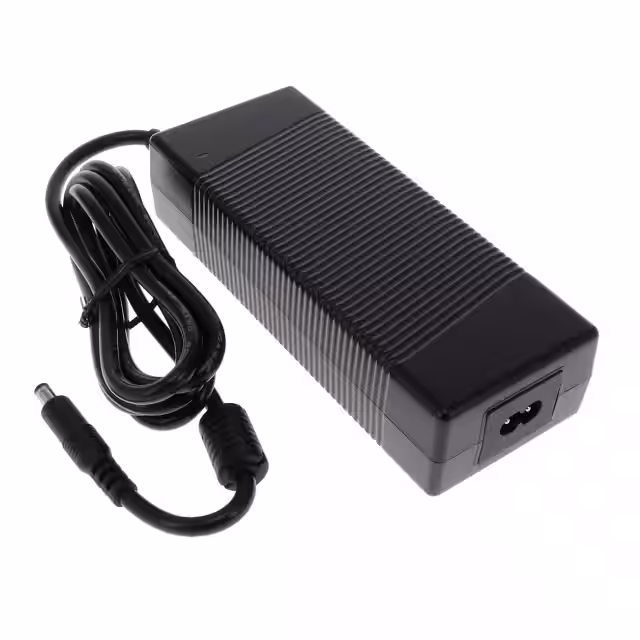

L6R120DM-200-C8AC/DC DESKTOP ADAPTER 20V 120W Tri-Mag, LLC |
2,447 |
|
规格书 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 20V | 6A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

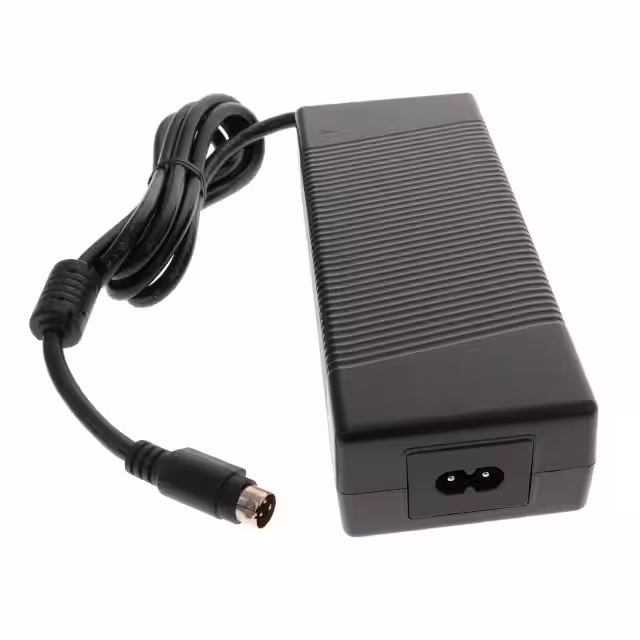

L6R120DM-120-C8AC/DC DESKTOP ADAPTER 12V 108W Tri-Mag, LLC |
3,721 |
|
规格书 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 9A | 108 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

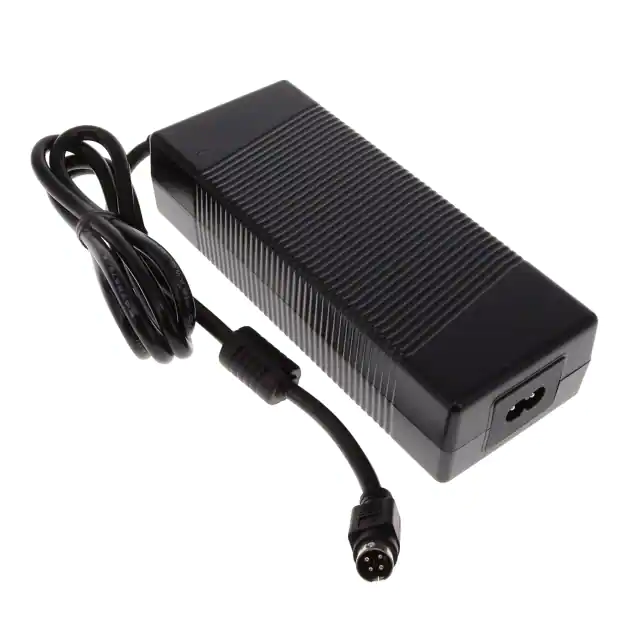

L6R120DM-150-C8AC/DC DESKTOP ADAPTER 15V 120W Tri-Mag, LLC |
1,290 |
|
规格书 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 8A | 120 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

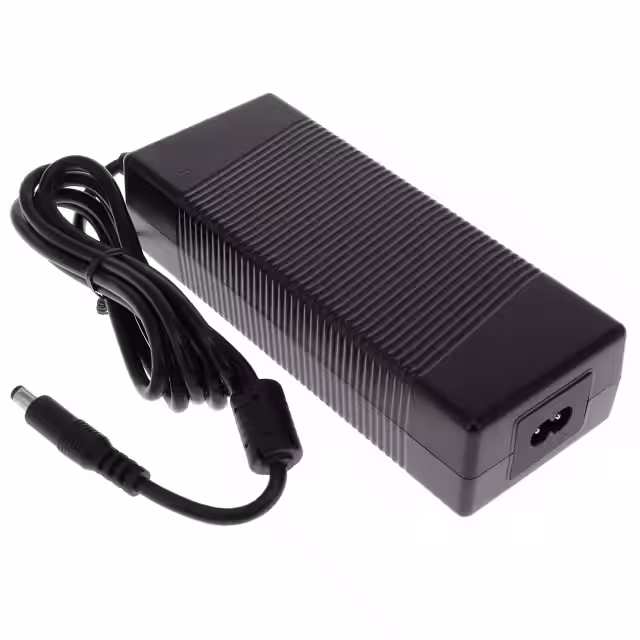

L6R120DM-480-C8AC/DC DESKTOP ADAPTER 48V 120W Tri-Mag, LLC |
1,649 |
|
规格书 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

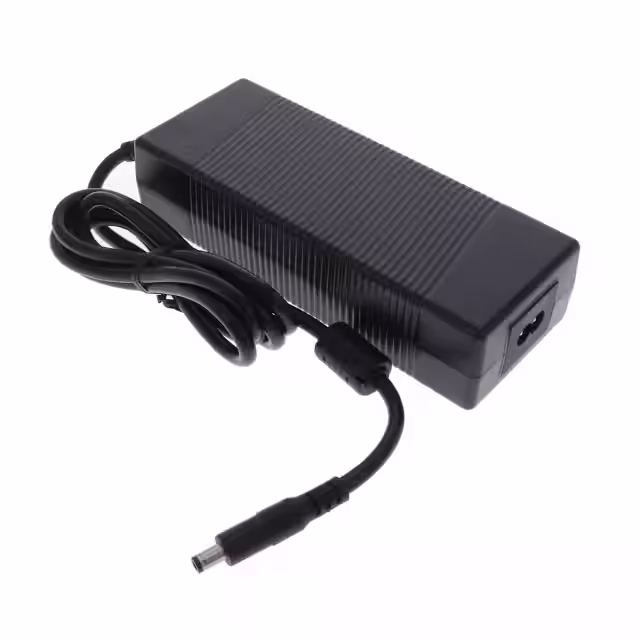

L6R120DM-190-C8AC/DC DESKTOP ADAPTER 19V 120W Tri-Mag, LLC |
4,279 |
|
规格书 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 6.3A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R300DM-480-C14AC/DC DESKTOP ADAPTER 48V 300W Tri-Mag, LLC |
3,403 |
|
规格书 |
Tri-Mag®, L6R300DM (300W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 6.25A | 300 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Rectangular, 6 Position | 47.2" (1.20m) | IEC 320-C14 | - | 10.00" L x 4.57" W x 1.85" H (254.0mm x 116.0mm x 47.0mm) | CE, cULus, EN, FCC, TUV |
