购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R60D-180-C14AC/DC DESKTOP ADAPTER 18V 65W Tri-Mag, LLC |
4,257 |
|
规格书 |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.61A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|
L6R36DM-075-C14AC/DC DESKTOP ADAPTER 7.5V 30W Tri-Mag, LLC |
4,167 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 4A | 30 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|

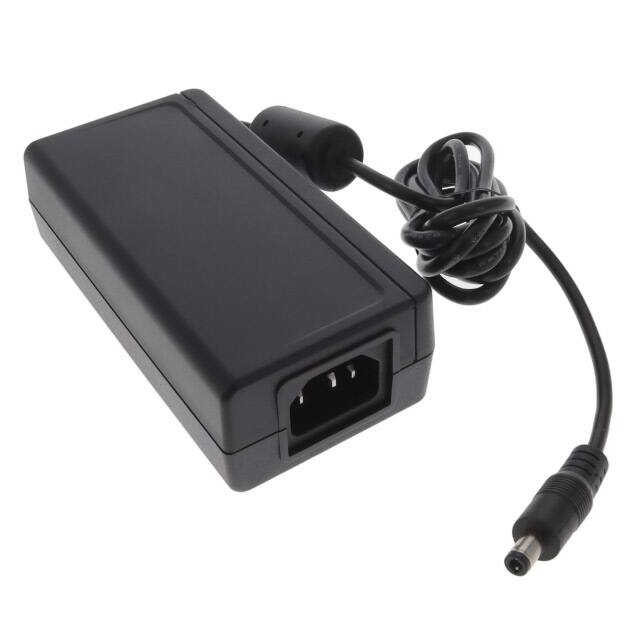

L6R65DM-150-C14AC/DC DESKTOP ADAPTER 15V 65W Tri-Mag, LLC |
4,054 |
|
规格书 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
|
L6R36DM-240-C8AC/DC DESKTOP ADAPTER 24V 36W Tri-Mag, LLC |
3,382 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R48D-090-500-C14AC/DC DESKTOP ADAPTER 9V 45W Tri-Mag, LLC |
4,879 |
|
规格书 |
Tri-Mag®, L6R48D (48W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 5A | 45 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|
|
L6R48D-240-200-C6AC/DC DESKTOP ADAPTER 24V 48W Tri-Mag, LLC |
4,578 |
|
规格书 |
Tri-Mag®, L6R48D (48W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2A | 48 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|

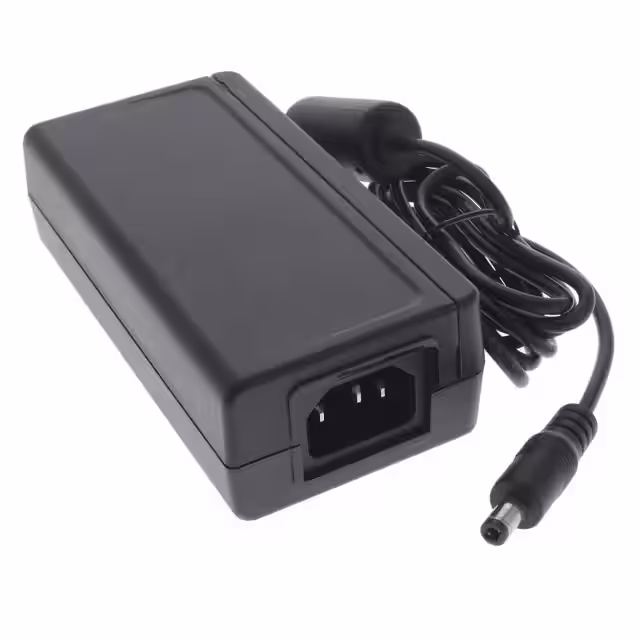

L6R65DM-180-C14AC/DC DESKTOP ADAPTER 18V 65W Tri-Mag, LLC |
4,780 |
|
规格书 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.62A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
|

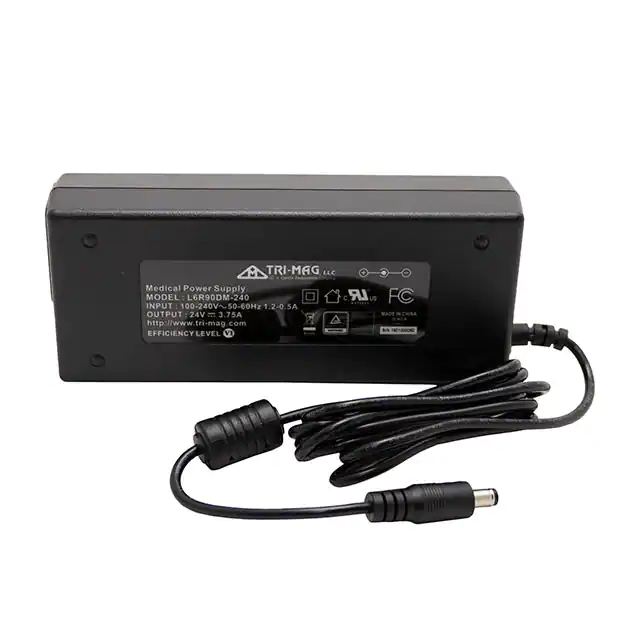

L6R90DM-240AC/DC DESKTOP ADAPTER 24V 90W Tri-Mag, LLC |
1,418 |
|
规格书 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV |
|
L6R200DM-190-C14AC/DC DESKTOP ADAPTER 19V 200W Tri-Mag, LLC |
4,383 |
|
规格书 |
Tri-Mag®, L6R200DM (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 10.5A | 200 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 8.03" L x 3.19" W x 1.67" H (204.0mm x 81.0mm x 42.4mm) | CE, cULus, EN, FCC, TUV |
|
L6R200DM-120-C14AC/DC DESKTOP ADAPTER 12V 192W Tri-Mag, LLC |
3,278 |
|
规格书 |
Tri-Mag®, L6R200DM (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 16A | 192 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 8.03" L x 3.19" W x 1.67" H (204.0mm x 81.0mm x 42.4mm) | CE, cULus, EN, FCC, TUV |
