购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R200DM-480-C14AC/DC DESKTOP ADAPTER 48V 200W Tri-Mag, LLC |
3,536 |
|
规格书 |
Tri-Mag®, L6R200DM (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 4.17A | 200 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 8.03" L x 3.19" W x 1.67" H (204.0mm x 81.0mm x 42.4mm) | CE, cULus, EN, FCC, TUV |
|
L6R36-360AC/DC WALL MOUNT ADAPTER 36V 36W Tri-Mag, LLC |
2,048 |
|
规格书 |
Tri-Mag®, L6R36 (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 36V | 1A | 36 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.82" L x 1.77" W x 1.52" H (97.0mm x 45.0mm x 38.6mm) | cUL, FCC, UL |
|
ICM36-240AC/DC WALL MOUNT ADAPTER 24V 36W Tri-Mag, LLC |
3,146 |
|
规格书 |
Tri-Mag®, ICM36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL |
|
L6R36DM-240-C14AC/DC DESKTOP ADAPTER 24V 36W Tri-Mag, LLC |
1,640 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R36DM-090-C8AC/DC DESKTOP ADAPTER 9V 36W Tri-Mag, LLC |
4,888 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 4A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|
ICM60-240AC/DC WALL MOUNT ADAPTER 24V 60W Tri-Mag, LLC |
2,071 |
|
- |
Tri-Mag®, ICM60 (60W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 4.62" L x 2.14" W x 1.40" H (117.3mm x 54.4mm x 35.6mm) | cUL, FCC, UL |
|
L6R36DM-075-C8AC/DC DESKTOP ADAPTER 7.5V 30W Tri-Mag, LLC |
3,817 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 4A | 30 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|

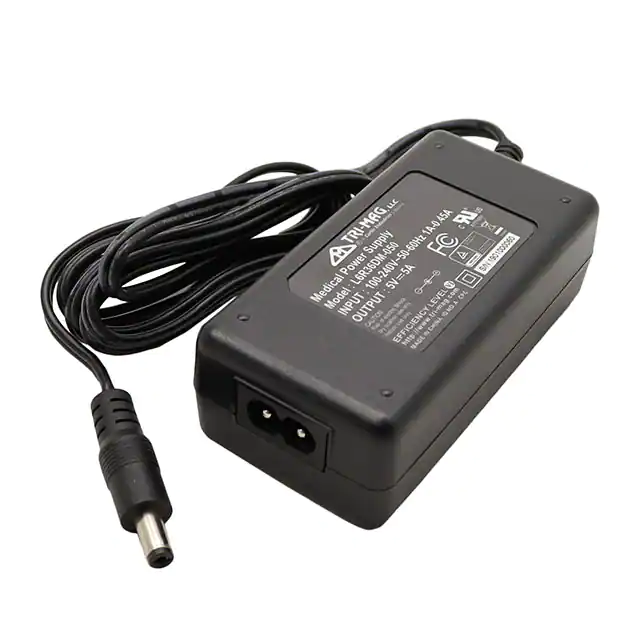

L6R36DM-050-C8AC/DC DESKTOP ADAPTER 5V 25W Tri-Mag, LLC |
2,362 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R90DM-190-C14AC/DC DESKTOP ADAPTER 19V 90W Tri-Mag, LLC |
3,308 |
|
规格书 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV |
|

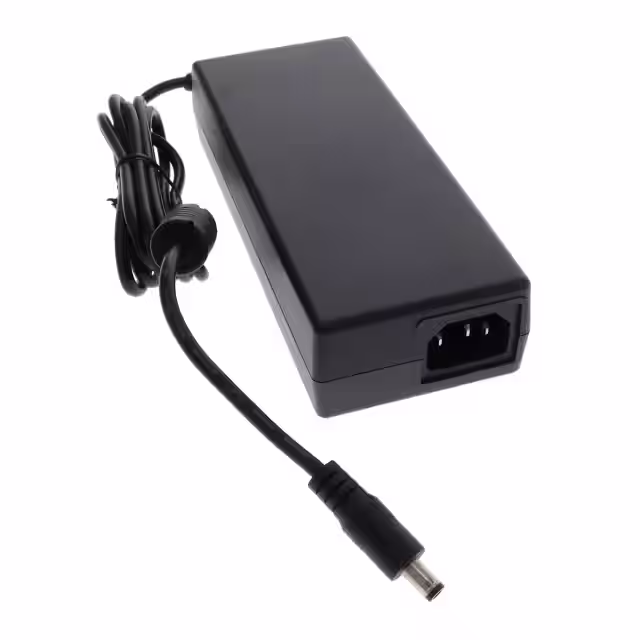

L6R90DM-150-C14AC/DC DESKTOP ADAPTER 15V 90W Tri-Mag, LLC |
3,393 |
|
规格书 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV |
