购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R18-360AC/DC WALL MOUNT ADAPTER 36V 18W Tri-Mag, LLC |
440 |
|
规格书 |
Tri-Mag®, L6R18 (18W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 36V | 500mA | 18 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) | CE, cUL, UL |
|

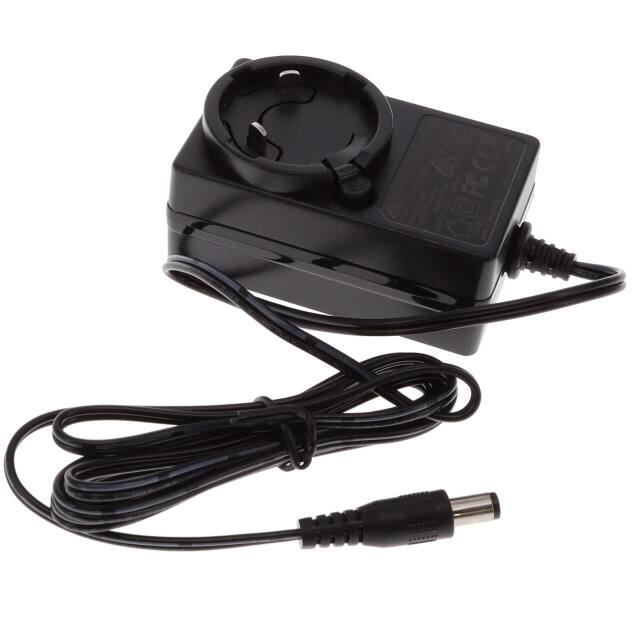

ICM18-180AC/DC WALL MOUNT ADAPTER 18V 18W Tri-Mag, LLC |
500 |
|
规格书 |
Tri-Mag®, ICM18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.80" L x 1.70" W x 1.20" H (71.2mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|

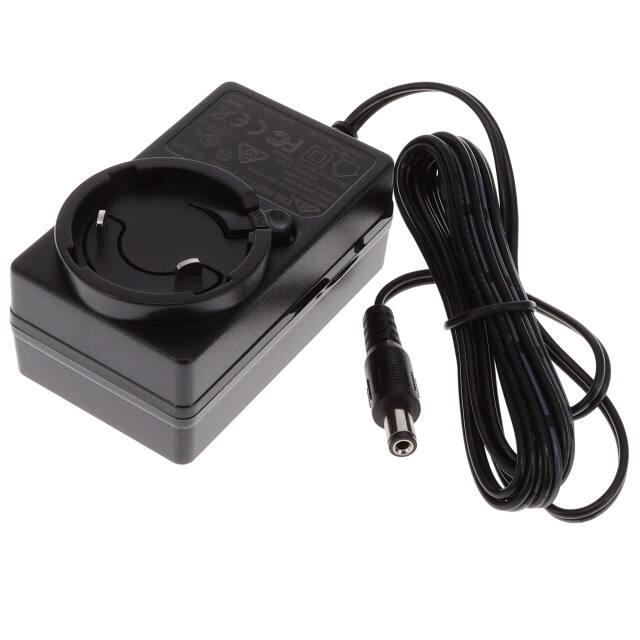

ICM18-300AC/DC WALL MOUNT ADAPTER 30V 18W Tri-Mag, LLC |
498 |
|
规格书 |
Tri-Mag®, ICM18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 600mA | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.80" L x 1.70" W x 1.20" H (71.2mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|

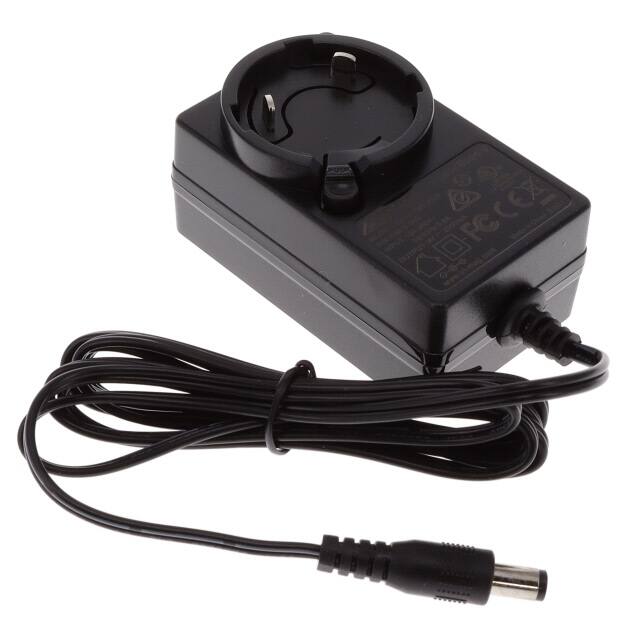

ICM18-090AC/DC WALL MOUNT ADAPTER 9V 18W Tri-Mag, LLC |
493 |
|
规格书 |
Tri-Mag®, ICM18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.80" L x 1.70" W x 1.20" H (71.2mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|

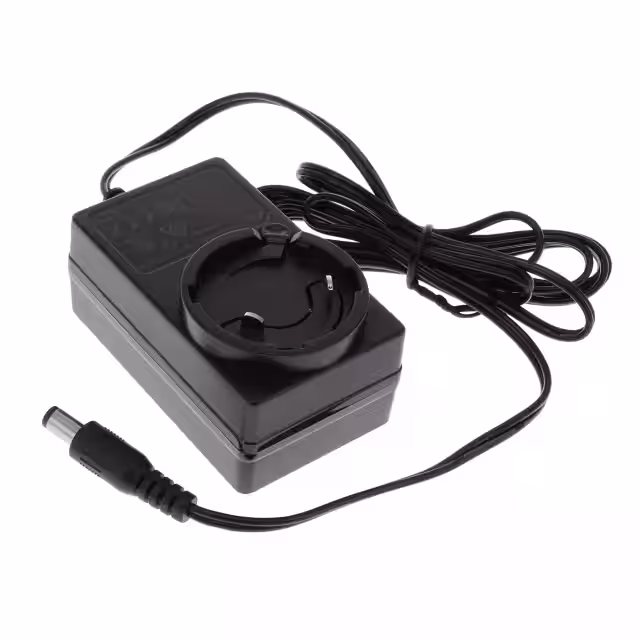

ICM18-240AC/DC WALL MOUNT ADAPTER 24V 18W Tri-Mag, LLC |
483 |
|
规格书 |
Tri-Mag®, ICM18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 750mA | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.80" L x 1.70" W x 1.20" H (71.2mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|

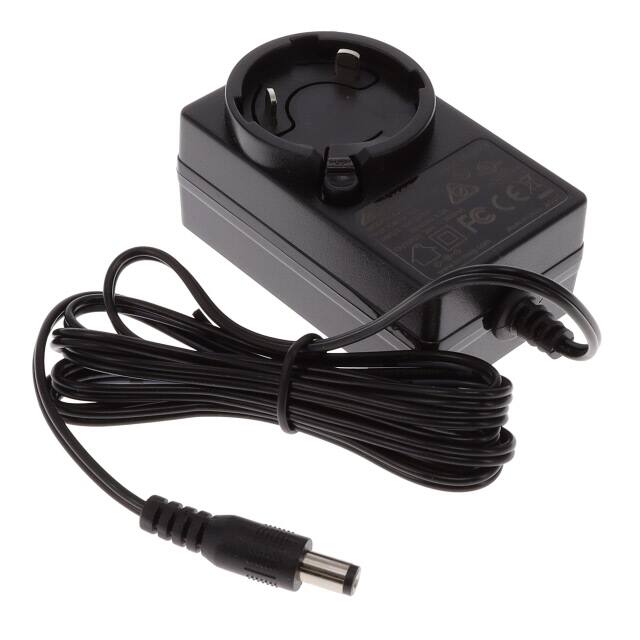

ICM18-360AC/DC WALL MOUNT ADAPTER 36V 18W Tri-Mag, LLC |
472 |
|
规格书 |
Tri-Mag®, ICM18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 36V | 500mA | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.80" L x 1.70" W x 1.20" H (71.2mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|

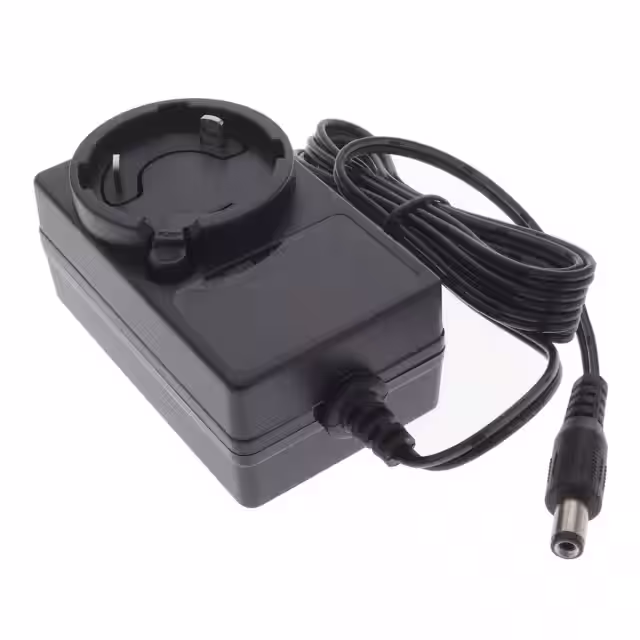

ICM18-120AC/DC WALL MOUNT ADAPTER 12V 18W Tri-Mag, LLC |
464 |
|
规格书 |
Tri-Mag®, ICM18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.80" L x 1.70" W x 1.20" H (71.2mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
L6R30D-240-C8AC/DC DESKTOP ADAPTER 24V 30W Tri-Mag, LLC |
348 |
|
规格书 |
Tri-Mag®, L6R30D (30W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.62" L x 1.79" W x 1.08" H (91.9mm x 45.4mm x 27.5mm) | cUL, FCC, UL |
|
L6R36D-240-C8AC/DC DESKTOP ADAPTER 24V 36W Tri-Mag, LLC |
218 |
|
规格书 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | cUL, FCC, UL |
|
L6R48D-240-C14AC/DC DESKTOP ADAPTER 24V 48W Tri-Mag, LLC |
864 |
|
规格书 |
Tri-Mag®, L6R48D (48W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2A | 48 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
