购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

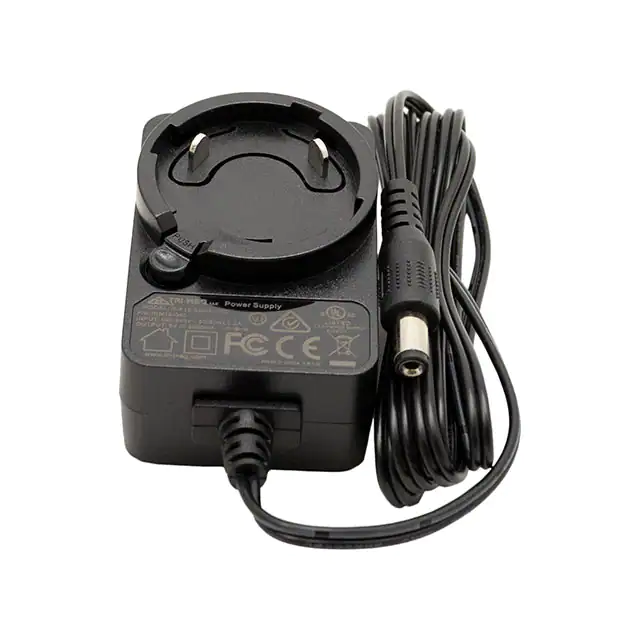

ICM12-050AC/DC WALL MOUNT ADAPTER 5V 11W Tri-Mag, LLC |
439 |
|
规格书 |
Tri-Mag®, ICM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2.1A | 11 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.32" L x 1.61" W x 1.24" H (59.0mm x 40.9mm x 31.5mm) | cUL, FCC, UL |
|

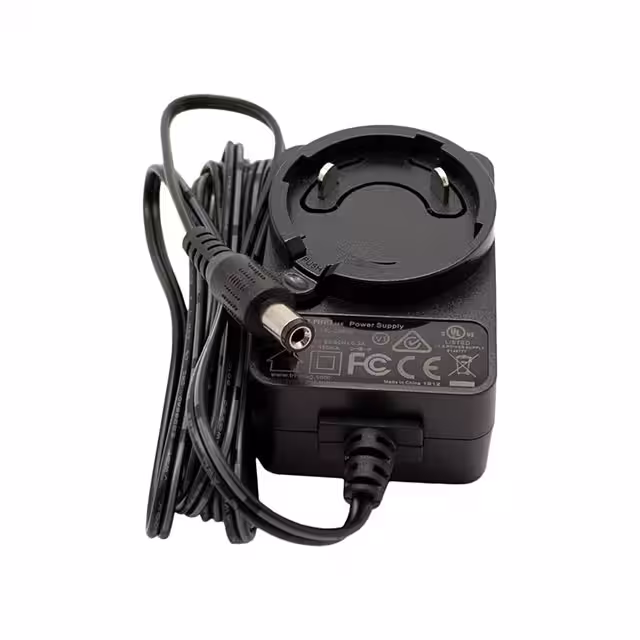

ICM12-180AC/DC WALL MOUNT ADAPTER 18V 13W Tri-Mag, LLC |
480 |
|
规格书 |
Tri-Mag®, ICM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 700mA | 13 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.32" L x 1.61" W x 1.24" H (59.0mm x 40.9mm x 31.5mm) | cUL, FCC, UL |
|

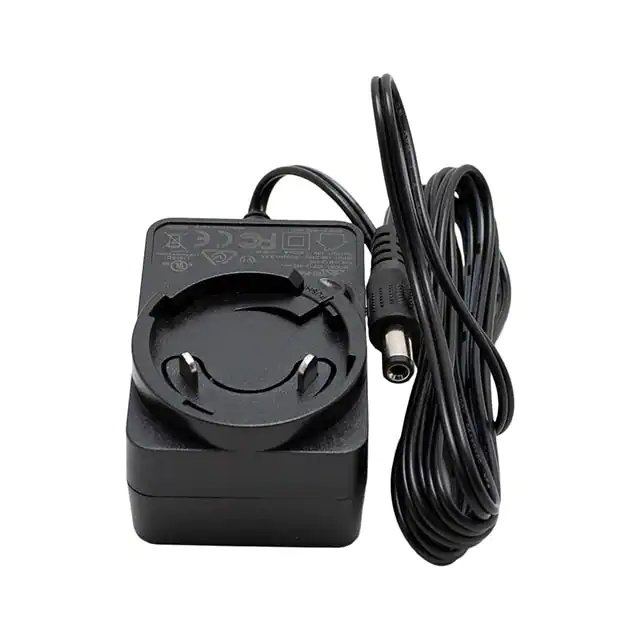

ICM12-300AC/DC WALL MOUNT ADAPTER 30V 12W Tri-Mag, LLC |
472 |
|
规格书 |
Tri-Mag®, ICM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 400mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.32" L x 1.61" W x 1.24" H (59.0mm x 40.9mm x 31.5mm) | cUL, FCC, UL |
|
ICM24-180AC/DC WALL MOUNT ADAPTER 18V 23W Tri-Mag, LLC |
497 |
|
规格书 |
Tri-Mag®, ICM24 (24W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.3A | 23 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
ICM24-300AC/DC WALL MOUNT ADAPTER 30V 24W Tri-Mag, LLC |
496 |
|
规格书 |
Tri-Mag®, ICM24 (24W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 800mA | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
ICM24-360AC/DC WALL MOUNT ADAPTER 36V 25W Tri-Mag, LLC |
478 |
|
规格书 |
Tri-Mag®, ICM24 (24W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 36V | 700mA | 25 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
ICM30-300AC/DC WALL MOUNT ADAPTER 30V 30W Tri-Mag, LLC |
466 |
|
规格书 |
Tri-Mag®, ICM30 (30W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 1A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
ICM30-360AC/DC WALL MOUNT ADAPTER 36V 66W Tri-Mag, LLC |
430 |
|
规格书 |
Tri-Mag®, ICM30 (30W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 36V | 830mA | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
ICM36-300AC/DC WALL MOUNT ADAPTER 30V 36W Tri-Mag, LLC |
221 |
|
规格书 |
Tri-Mag®, ICM36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 1.2A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL |
|
ICM36-120AC/DC WALL MOUNT ADAPTER 12V 36W Tri-Mag, LLC |
385 |
|
规格书 |
Tri-Mag®, ICM36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL |
