购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

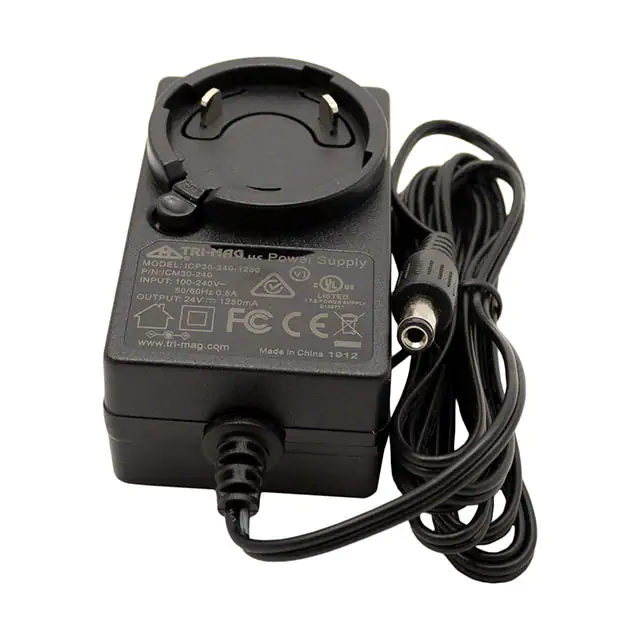

ICM30-240AC/DC WALL MOUNT ADAPTER 24V 30W Tri-Mag, LLC |
944 |
|
规格书 |
Tri-Mag®, ICM30 (30W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
L6R48-360AC/DC WALL MOUNT ADAPTER 36V 48W Tri-Mag, LLC |
116 |
|
规格书 |
Tri-Mag®, L6R48 (48W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 36V | 1.33A | 48 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.82" L x 1.77" W x 1.52" H (97.0mm x 45.0mm x 38.6mm) | cUL, FCC, UL |
|
ICM48-120AC/DC WALL MOUNT ADAPTER 12V 48W Tri-Mag, LLC |
2,068 |
|
规格书 |
Tri-Mag®, ICM48 (48W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 4A | 48 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL |
|
ICM48-360AC/DC WALL MOUNT ADAPTER 36V 48W Tri-Mag, LLC |
217 |
|
规格书 |
Tri-Mag®, ICM48 (48W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 36V | 1.33A | 48 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL |
|

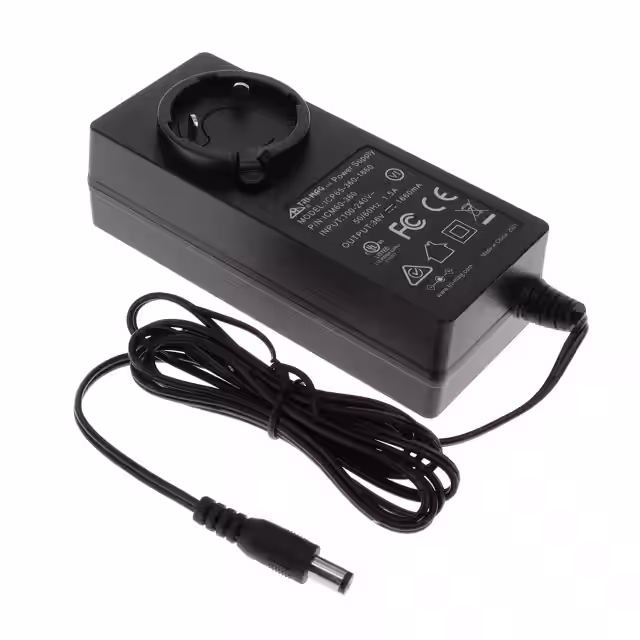

ICM60-360AC/DC WALL MOUNT ADAPTER 36V 65W Tri-Mag, LLC |
406 |
|
- |
Tri-Mag®, ICM60 (60W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 36V | 1.8A | 65 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 4.62" L x 2.14" W x 1.40" H (117.3mm x 54.4mm x 35.6mm) | cUL, FCC, UL |
|

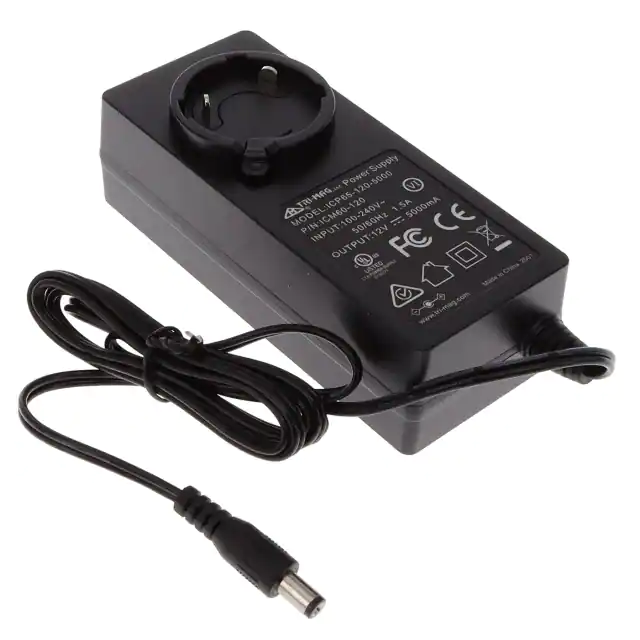

ICM60-120AC/DC WALL MOUNT ADAPTER 12V 60W Tri-Mag, LLC |
6,387 |
|
- |
Tri-Mag®, ICM60 (60W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 4.62" L x 2.14" W x 1.40" H (117.3mm x 54.4mm x 35.6mm) | cUL, FCC, UL |
|

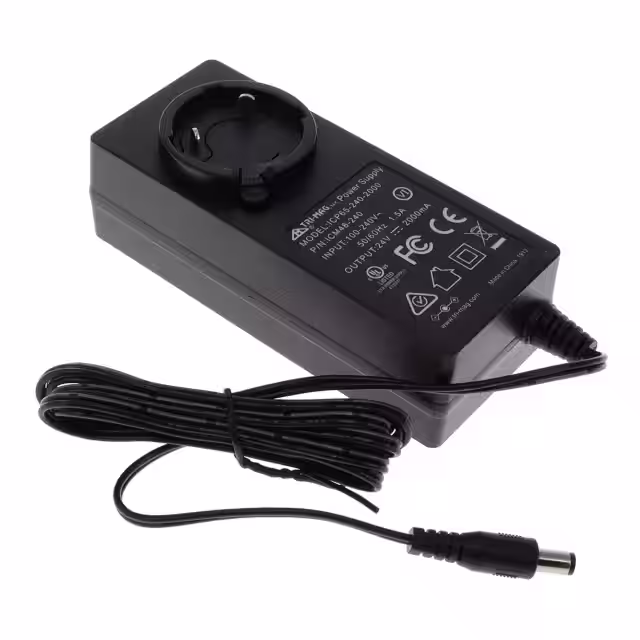

ICM48-240AC/DC WALL MOUNT ADAPTER 24V 48W Tri-Mag, LLC |
306 |
|
规格书 |
Tri-Mag®, ICM48 (48W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 2A | 48 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL |
|
L6R60D-120-C6AC/DC DESKTOP ADAPTER 12V 65W Tri-Mag, LLC |
1,025 |
|
规格书 |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5.41A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|
|
L6R60D-480AC/DC DESKTOP ADAPTER 48V 65W Tri-Mag, LLC |
234 |
|
规格书 |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.35A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|

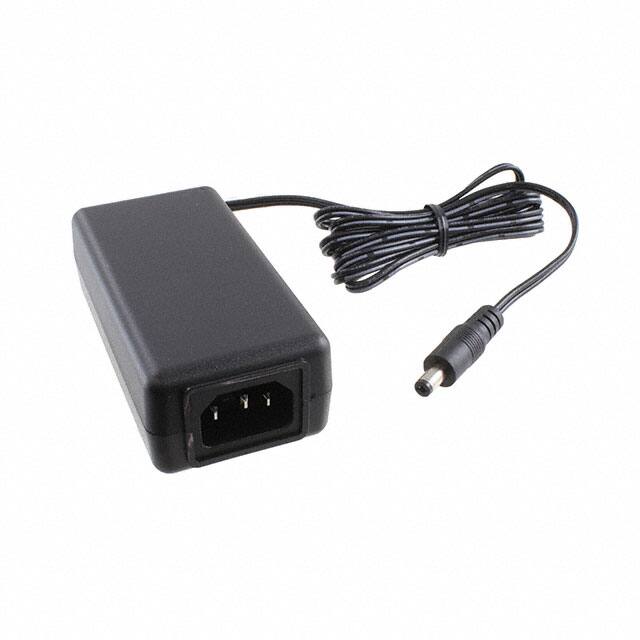

L6R36DM-150-C14AC/DC DESKTOP ADAPTER 15V 36W Tri-Mag, LLC |
105 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
