购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R06H-180AC/DC WALL MNT ADAPTER 18V 5.9W Tri-Mag, LLC |
284 |
|
规格书 |
Tri-Mag®, L6R06H (6W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 330mA | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 1.54" L x 0.93" W x 1.65" H (39.2mm x 23.7mm x 42.0mm) | cUL, FCC, UL |
|
L6R12-240AC/DC WALL MOUNT ADAPTER 24V 12W Tri-Mag, LLC |
554 |
|
规格书 |
Tri-Mag®, L6R12 (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.32" L x 1.61" W x 1.00" H (59.0mm x 40.9mm x 25.4mm) | cUL, FCC, UL |
|

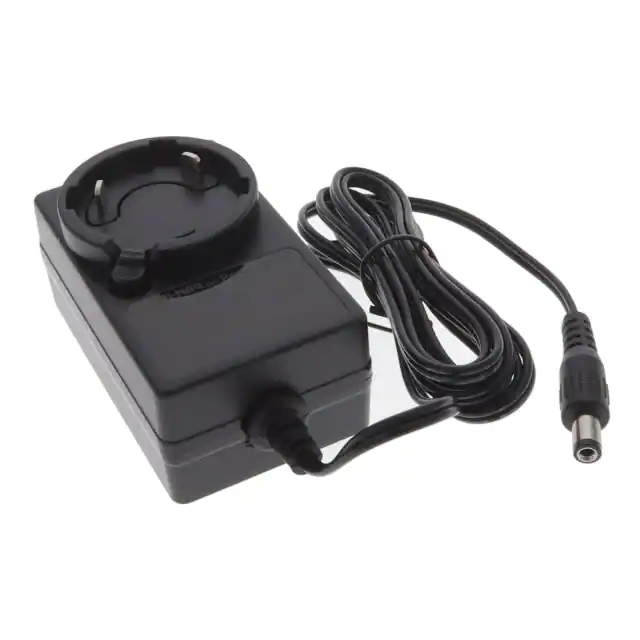

ICM24-120AC/DC WALL MOUNT ADAPTER 12V 24W Tri-Mag, LLC |
473 |
|
规格书 |
Tri-Mag®, ICM24 (24W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|

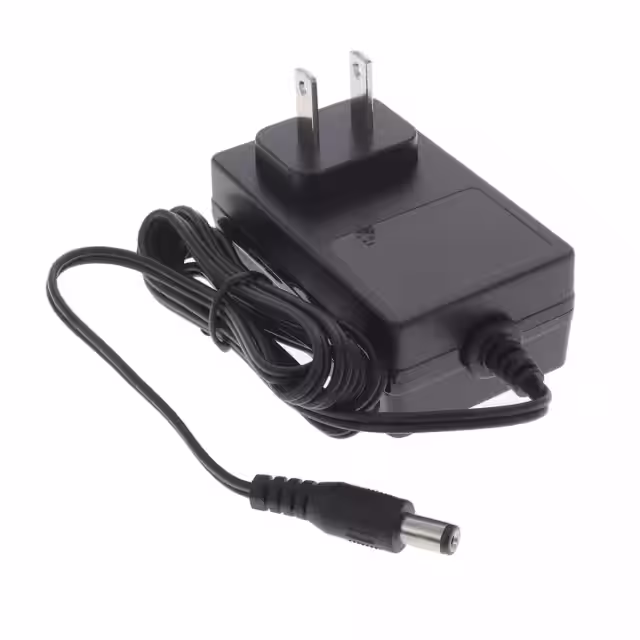

L6R30-360AC/DC WALL MOUNT ADAPTER 36V 30W Tri-Mag, LLC |
324 |
|
规格书 |
Tri-Mag®, L6R30 (30W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 36V | 830mA | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) | cUL, FCC, UL |
|
|
L6R12-070AC/DC WALL MOUNT ADAPTER 7V 9.1W Tri-Mag, LLC |
1,594 |
|
规格书 |
Tri-Mag®, L6R12 (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7V | 1.3A | 9.1 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.32" L x 1.61" W x 1.24" H (58.9mm x 40.9mm x 31.5mm) | cUL, FCC, UL |
|
|
L6R12-050AC/DC WALL MOUNT ADAPTER 5V 11W Tri-Mag, LLC |
656 |
|
规格书 |
Tri-Mag®, L6R12 (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.1A | 11 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.32" L x 1.61" W x 1.00" H (59.0mm x 40.9mm x 25.4mm) | cUL, FCC, UL |
|
|
L6R12-300AC/DC WALL MOUNT ADAPTER 30V 12W Tri-Mag, LLC |
1,295 |
|
规格书 |
Tri-Mag®, L6R12 (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 30V | 400mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.32" L x 1.61" W x 1.24" H (58.9mm x 40.9mm x 31.5mm) | cUL, FCC, UL |
|
L6R24-090AC/DC WALL MOUNT ADAPTER 9V 24W Tri-Mag, LLC |
887 |
|
规格书 |
Tri-Mag®, L6R24 (24W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 2.7A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) | cUL, FCC, UL |
|
L6R30-300AC/DC WALL MOUNT ADAPTER 30V 30W Tri-Mag, LLC |
787 |
|
规格书 |
Tri-Mag®, L6R30 (30W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 30V | 1A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) | cUL, FCC, UL |
|
L6R24D-120AC/DC DESKTOP ADAPTER 12V 24W Tri-Mag, LLC |
5,187 |
|
规格书 |
Tri-Mag®, L6R24D (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.62" L x 1.79" W x 1.08" H (91.9mm x 45.4mm x 27.5mm) | cUL, FCC, UL |
