| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R12-120AC/DC WALL MOUNT ADAPTER 12V 12W Tri-Mag, LLC |
1,371 |
|
规格书 |
Tri-Mag®, L6R12 (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.32" L x 1.61" W x 1.00" H (59.0mm x 40.9mm x 25.4mm) | cUL, FCC, UL |
|
L6R12H-050AC/DC WALL MOUNT ADAPTER 5V 10W Tri-Mag, LLC |
4,928 |
|
规格书 |
Tri-Mag®, L6R12H (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 1.54" L x 0.95" W x 1.71" H (39.2mm x 24.0mm x 43.5mm) | cUL, FCC, UL |
|

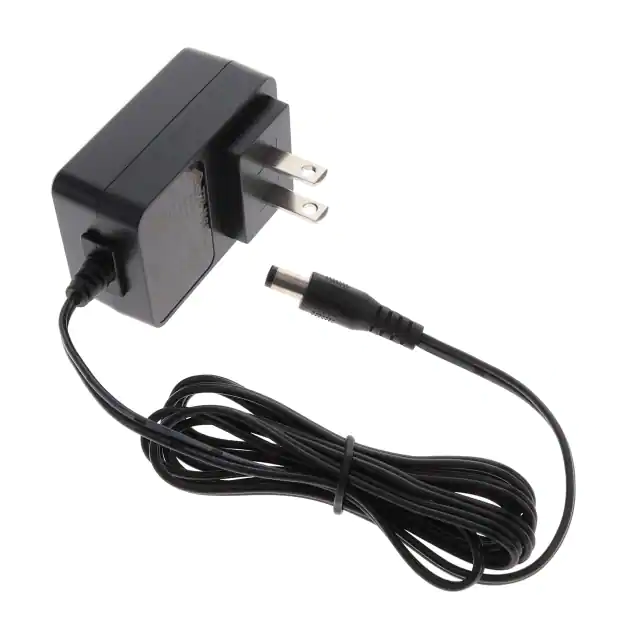

L6R20-240AC/DC WALL MOUNT ADAPTER 24V 20W Tri-Mag, LLC |
555 |
|
规格书 |
Tri-Mag®, L6R20 (20W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 830mA | 20 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.32" L x 1.61" W x 1.04" H (59.0mm x 41.0mm x 26.5mm) | cUL, FCC, UL |
|
L6R36-090AC/DC WALL MOUNT ADAPTER 9V 36W Tri-Mag, LLC |
3,427 |
|
规格书 |
Tri-Mag®, L6R36 (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 4A | 36 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.82" L x 1.77" W x 1.52" H (97.0mm x 45.0mm x 38.6mm) | cUL, FCC, UL |
|

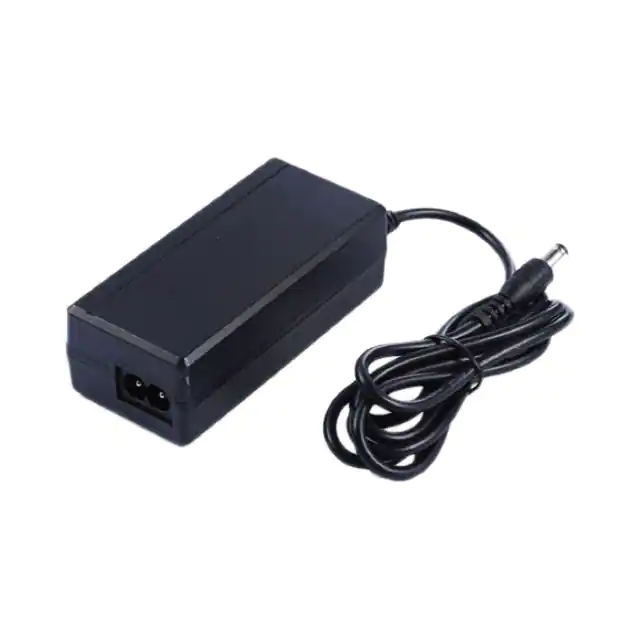

L6R24D-240-C8AC/DC DESKTOP ADAPTER 24V 24W Tri-Mag, LLC |
744 |
|
规格书 |
Tri-Mag®, L6R24D (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.62" L x 1.79" W x 1.08" H (91.9mm x 45.4mm x 27.5mm) | cUL, FCC, UL |
|

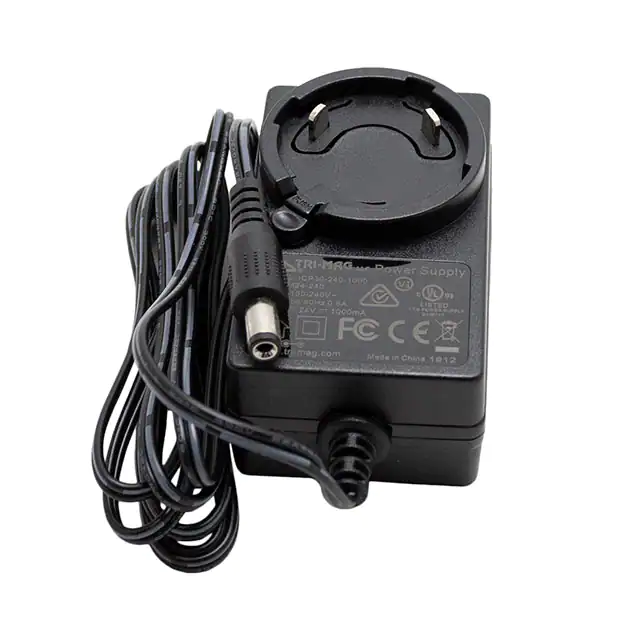

ICM24-240AC/DC WALL MOUNT ADAPTER 24V 24W Tri-Mag, LLC |
415 |
|
规格书 |
Tri-Mag®, ICM24 (24W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|

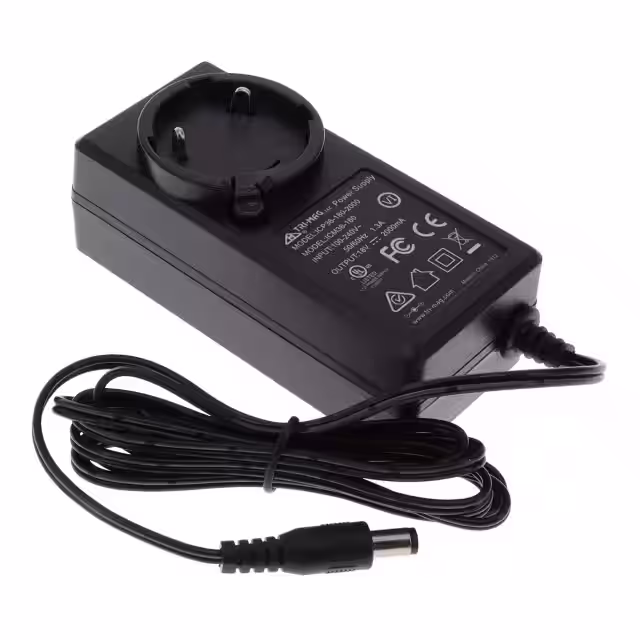

ICM36-180AC/DC WALL MOUNT ADAPTER 18V 36W Tri-Mag, LLC |
325 |
|
规格书 |
Tri-Mag®, ICM36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 2A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL |
|
L6R48-300AC/DC WALL MOUNT ADAPTER 30V 48W Tri-Mag, LLC |
2,169 |
|
规格书 |
Tri-Mag®, L6R48 (48W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 30V | 1.6A | 48 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.82" L x 1.77" W x 1.52" H (97.0mm x 45.0mm x 38.6mm) | cUL, FCC, UL |
|

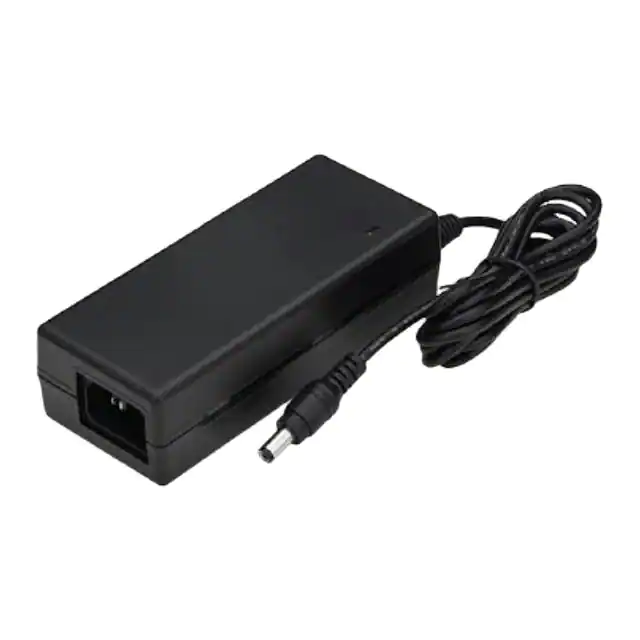

L6R60D-240-C14AC/DC DESKTOP ADAPTER 24V 65W Tri-Mag, LLC |
355 |
|
规格书 |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|

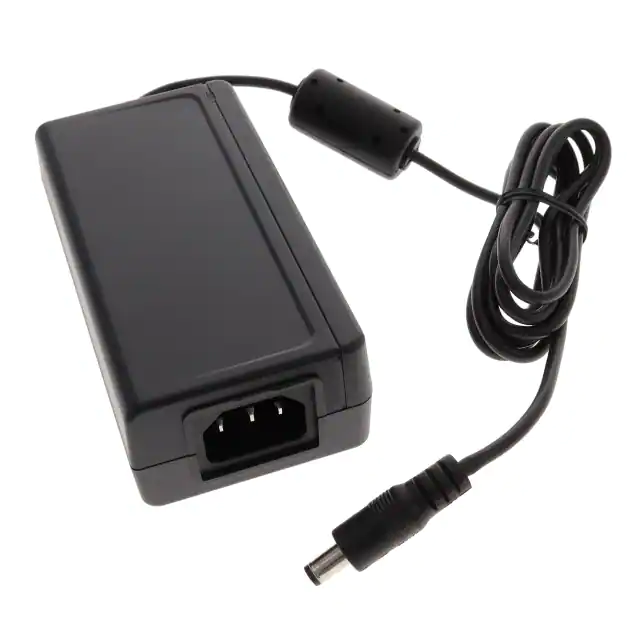

L6R65DM-240-C14AC/DC DESKTOP ADAPTER 24V 65W Tri-Mag, LLC |
108 |
|
规格书 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
