购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R120DM-240-C8AC/DC DESKTOP ADAPTER 24V 120W Tri-Mag, LLC |
4,907 |
|
规格书 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

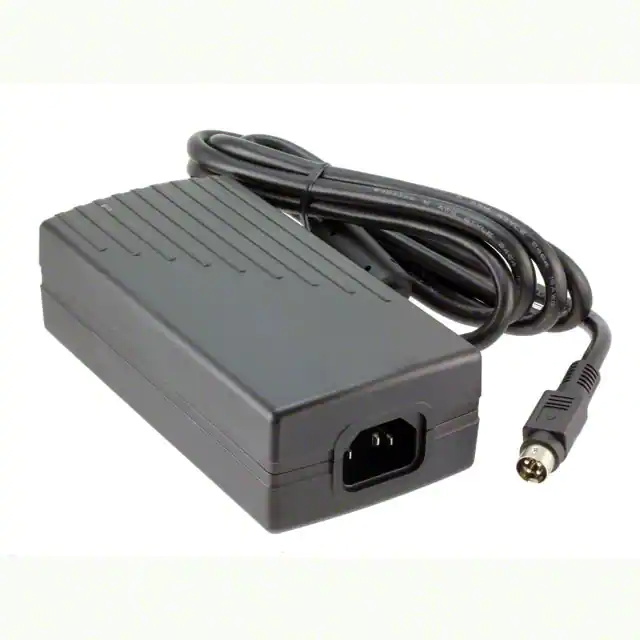

DT080AF-5-3AC/DC DESKTOP ADAPTER 12V 72W Tri-Mag, LLC |
2,934 |
|
规格书 |
DT080AF (80W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 6A | 72 W | 100mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 60°C | Power DIN, 4 Pin | - | IEC 320-C14 | - | 5.71" L x 2.83" W x 1.65" H (145.0mm x 72.0mm x 42.0mm) | - |
|

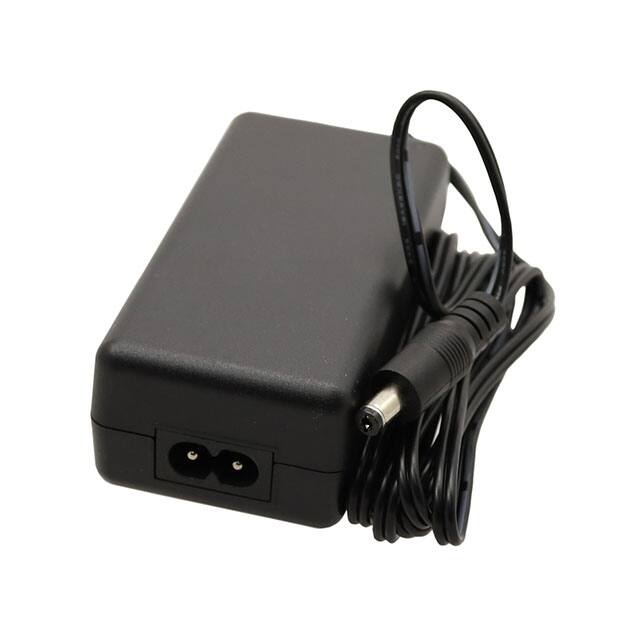

L6R36DM-150-C8AC/DC DESKTOP ADAPTER 15V 36W Tri-Mag, LLC |
2,364 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|

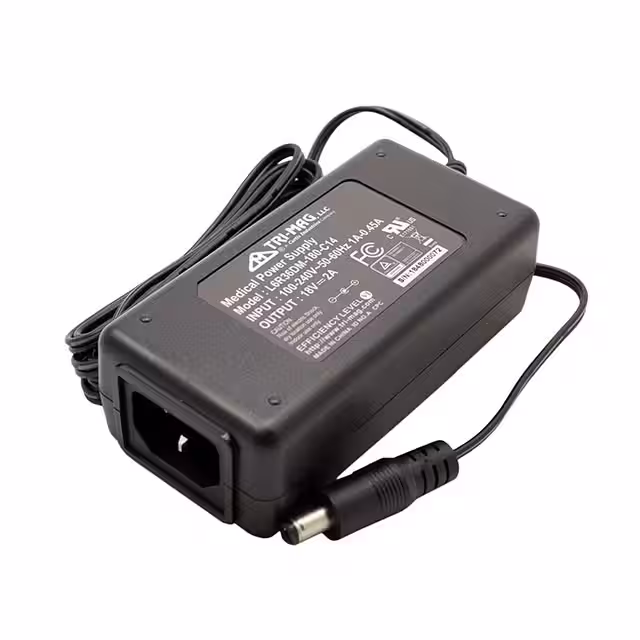

L6R36DM-180-C14AC/DC DESKTOP ADAPTER 18V 36W Tri-Mag, LLC |
3,827 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R65DM-240-C8AC/DC DESKTOP ADAPTER 24V 65W Tri-Mag, LLC |
4,715 |
|
规格书 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
|

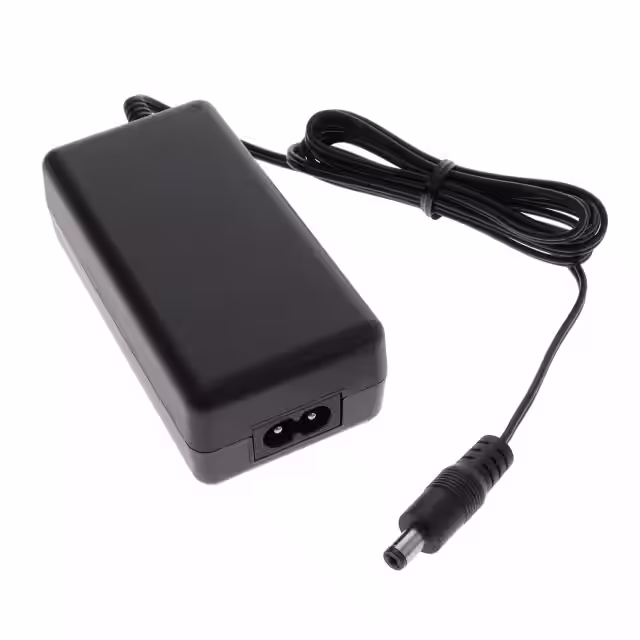

L6R36DM-180-C8AC/DC DESKTOP ADAPTER 18V 36W Tri-Mag, LLC |
2,188 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|

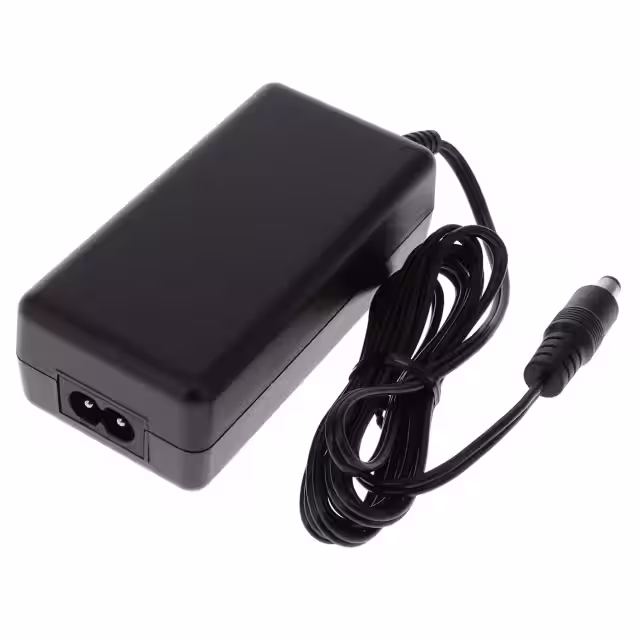

L6R36DM-120-C8AC/DC DESKTOP ADAPTER 12V 36W Tri-Mag, LLC |
2,825 |
|
规格书 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|

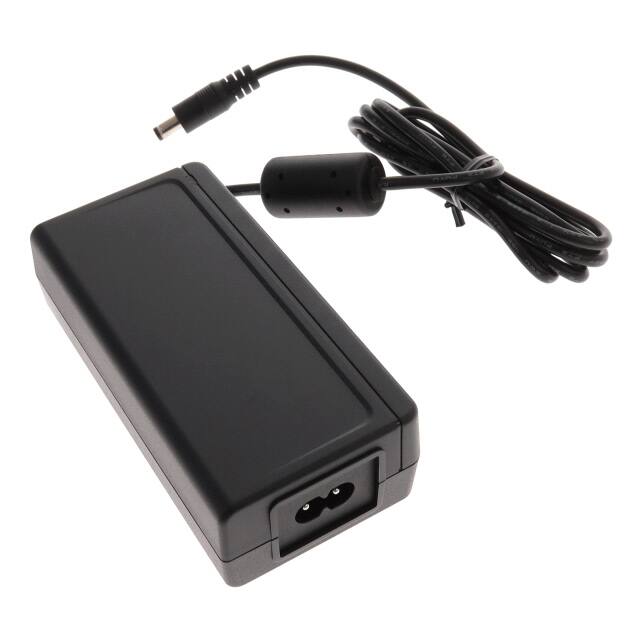

L6R65DM-150-C8AC/DC DESKTOP ADAPTER 15V 65W Tri-Mag, LLC |
4,650 |
|
规格书 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
|
L6R65DM-190-C8AC/DC DESKTOP ADAPTER 19V 65W Tri-Mag, LLC |
1,546 |
|
规格书 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 3.43A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
|

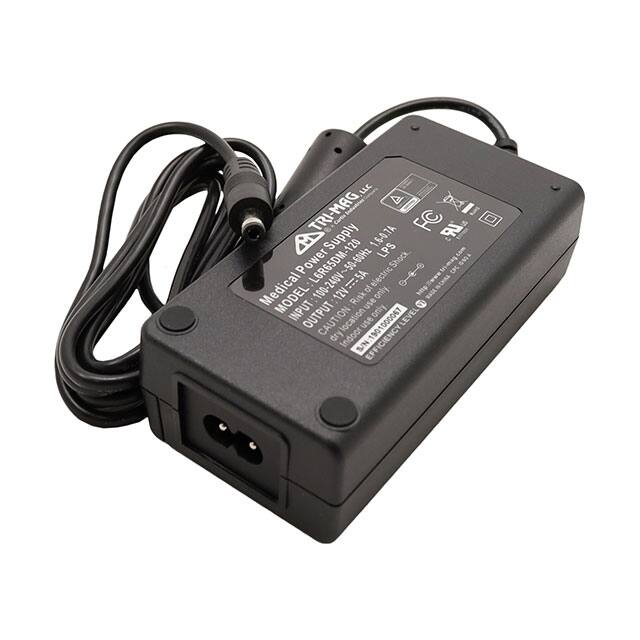

L6R65DM-120-C8AC/DC DESKTOP ADAPTER 12V 60W Tri-Mag, LLC |
2,657 |
|
规格书 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
